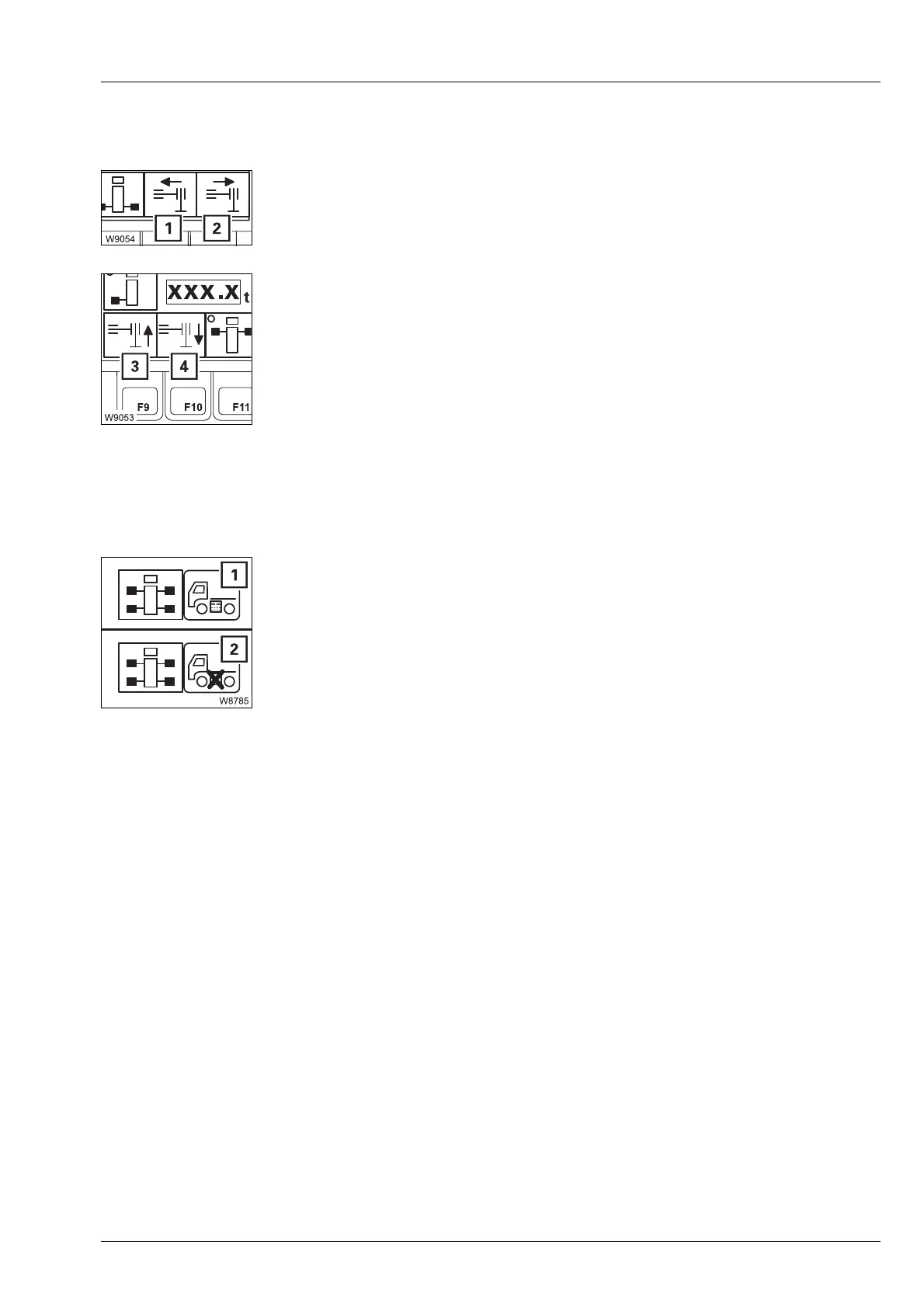

Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 67
xx.xx.xxxx
Retract/extend outrigger beam/supporting cylinder
Slewing gear is switched off – outrigger pre-selection on.
Movement stops after the button is released and when an end position is
reached.
In the Settings
submenu
Outrigger control units on/off
s
1Retract: Press button – outrigger beam retracts
2 Extend: Press button – outrigger beam extends
à p. 12 - 37
3Retract: Press button – outrigger cylinder retracts
4 Extend: Press button – outrigger cylinder extends
à p. 12 - 43
– To switch on: Press button until symbol (1) appears
– To switch off: Press button until symbol (2) appears
à p. 12 - 31
