Operating elements for crane operation
9.2 Short description of the operating elements
9 - 68 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
On the outrigger
control units
All directional information refers to the carrier;
à p. 9 - 57.

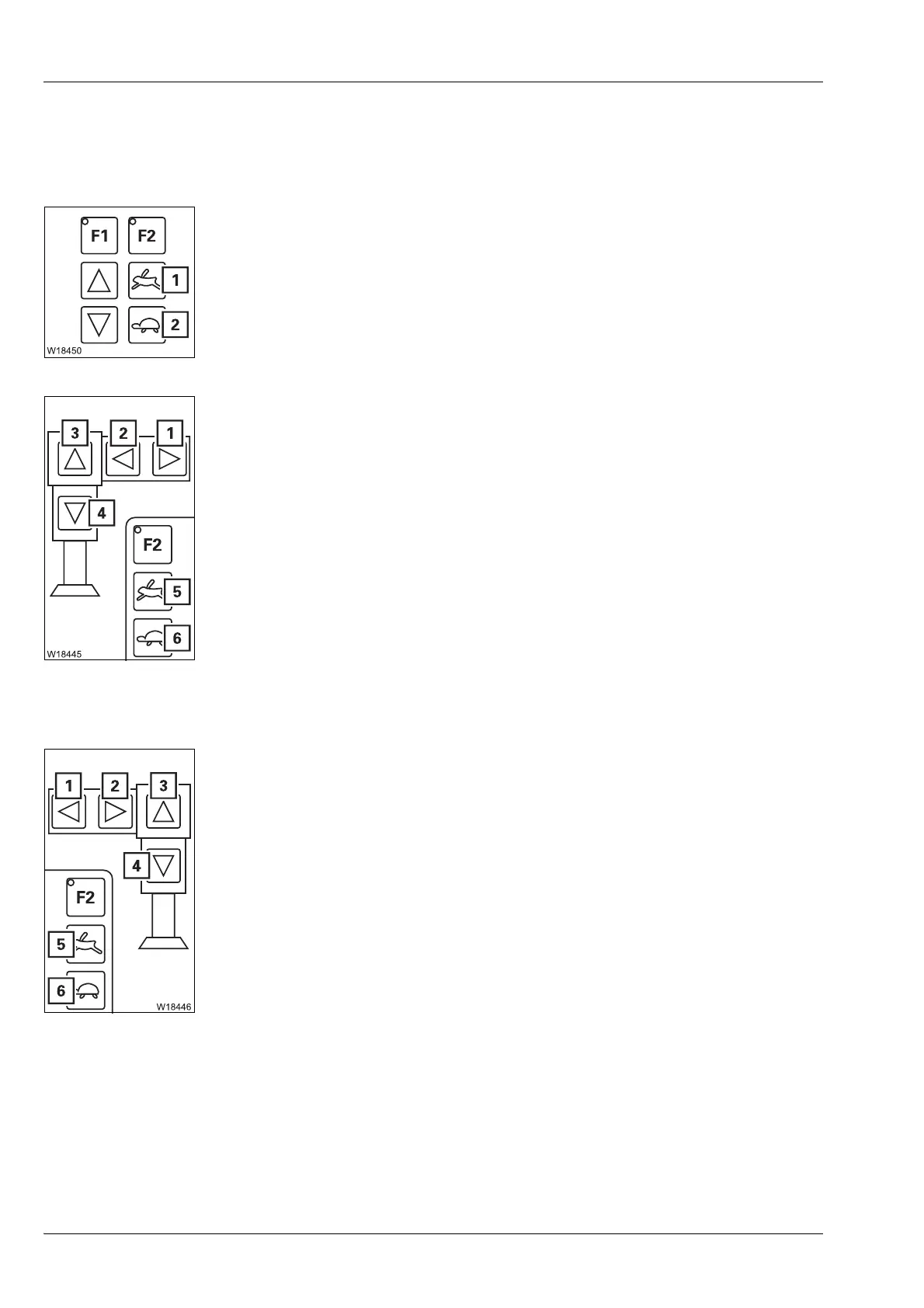

The display fields in the
Settings submenu need to be switched on to operate
in crane mode.
Pre-select high-speed/normal speed mode
Operating the left outriggers (next to control unit)
Button (5) or (6) is pressed.
Movement stops after the button is released, and when an end position is
reached.
Operating the right outriggers (next to control unit)
Operation is the same as on the button unit for
Outriggers to the left of display
field
.
1 Pre-select: Press button – high-speed mode pre-selection on
2 Pre-select: Press button – normal speed pre-selection on
1Retract: Press button – outrigger beam retracts
1)
2 Extend: Press button – outrigger beam extends
1)
3Retract: Press button – outrigger cylinder retracts
4 Extend: Press button – outrigger cylinder extends
1)
only on operator's side
Outrigger beams;
à p. 12 - 36
Supporting cylinders;
à p. 12 - 42
