12.7 Rigging/unrigging the counterweight
12 - 82 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

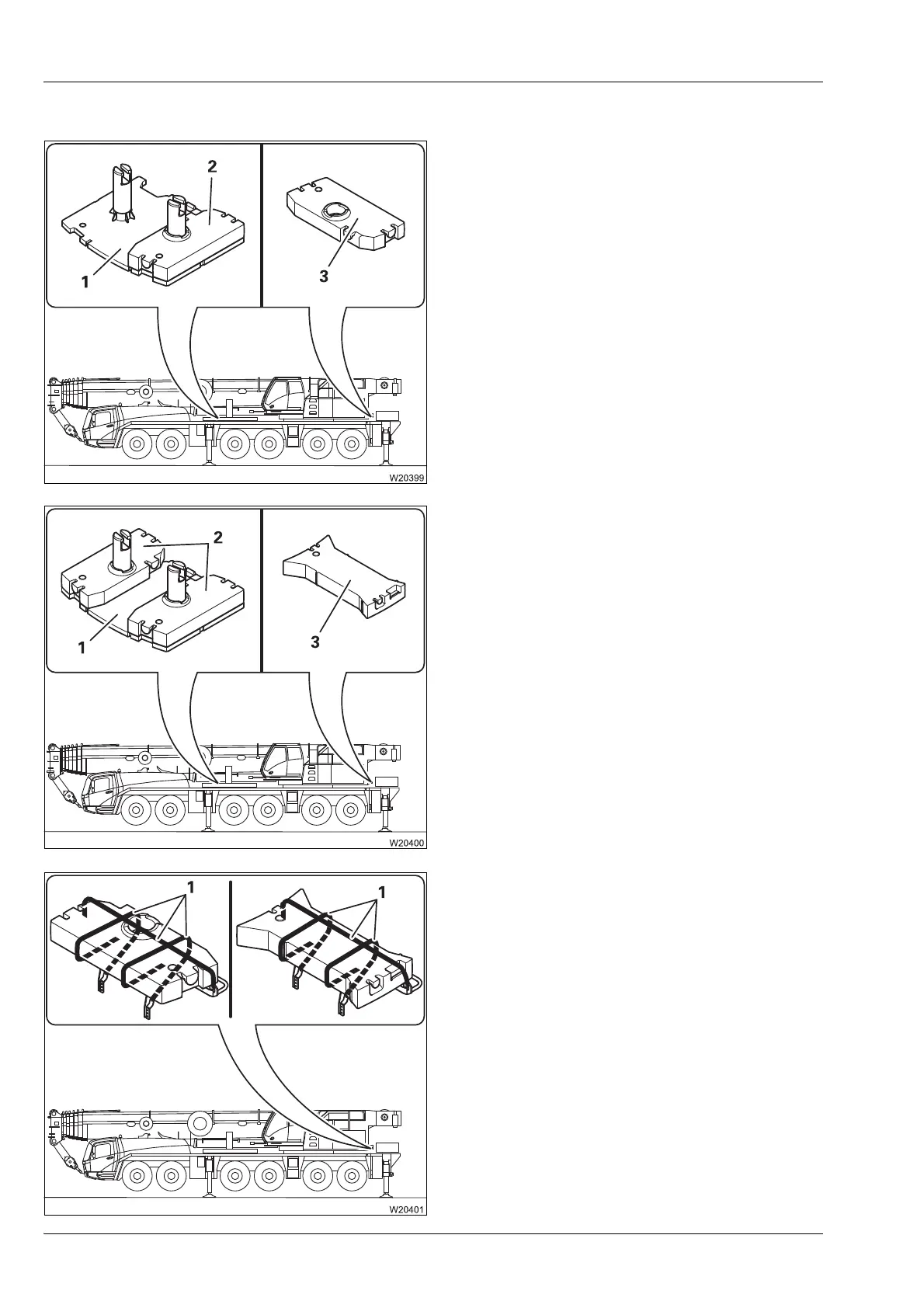

Observe the following points to avoid damage to the derricking cylinder.
If a lattice extension is folded at the side:
At most, set down
– the 7.0 t base plate (1),
– one 4.75 t section (2),
– one 4.75 t section (3) down.
If no lattice extension is folded at the side:
At most, set down
– the 7.0 t base plate (1),
– two 4.75 t sections (2),
– one 4.75 t section (3) down.
Fasten the counterweight on the rear storage
area
• Fasten the counterweight to the rear storage
area with the lashing straps provided (1).
If the truck crane is fitted with a removable
supporting box (ROB) then you cannot place
or fasten counterweights here for driving.
