Driving
5.4 Off-road driving
Operating Manual GMK6300L 3 112 xxx en 5 - 67
xx.xx.xxxx

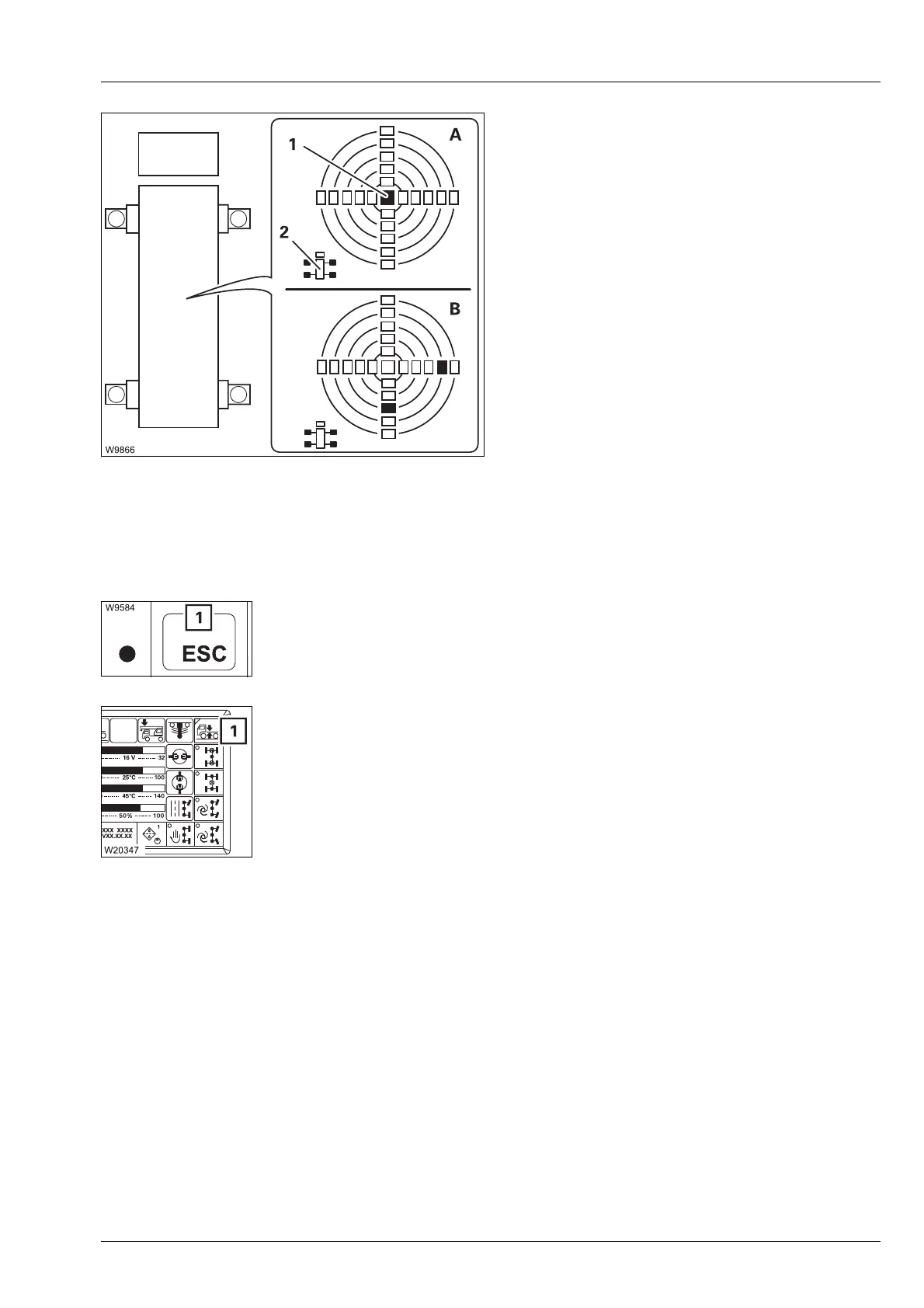

(A) – When the truck crane is level, only the
lamp (1) in the middle lights up.
The other lamps show the sides of the truck
crane which are higher.
The assignment to the carrier is given by the
directional indicator (2).
(B) – In this example, the carrier would be
standing higher to the rear on the right hand
side.
Exiting the
submenu
You can exit the
Level adjustment system submenu at any time.
• Press the button (1) once.
• Press the button (1) once.
The main menu opens.
The
Level adjustment system submenu automatically closes as soon as the
current speed rises above approx. 5 km/h (3 mph).
