Driving
5.6 Heating and air-conditioning system
Operating Manual GMK6300L 3 112 xxx en 5 - 77
xx.xx.xxxx

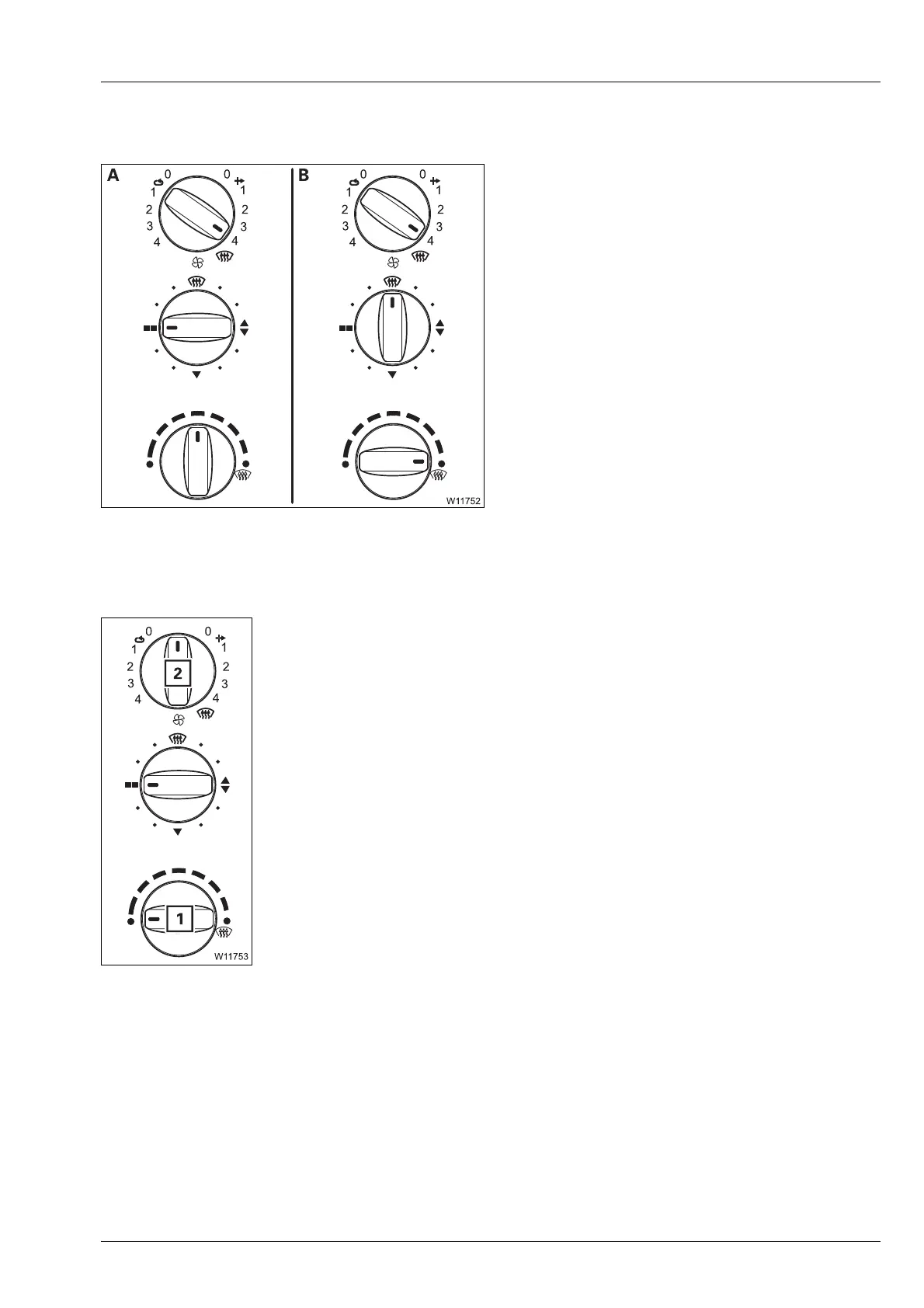

Examples This section only contains examples of the settings.
Always adjust the setting to the current conditions (warm, cold, damp).
(A) – Ventilating
– Turn the switches to the positions shown.
– If necessary, open the air vents for the side
and centre.
(B) – Defrosting the front windscreen
– Turn the switches to the positions shown.
– Close the air vents for the side and centre.
Switching off
Switching off the heating system
• Turn the switch (1) as far as it will go in a counter-clockwise direction,
to
Cold.
Switching off the ventilation
• Turn the switch (2) to the level 0.
