6.4 Main boom, removing/installing
Operating Manual GMK6300L 3 112 xxx en 6 - 35
xx.xx.xxxx
Pushing the pivot
pin in

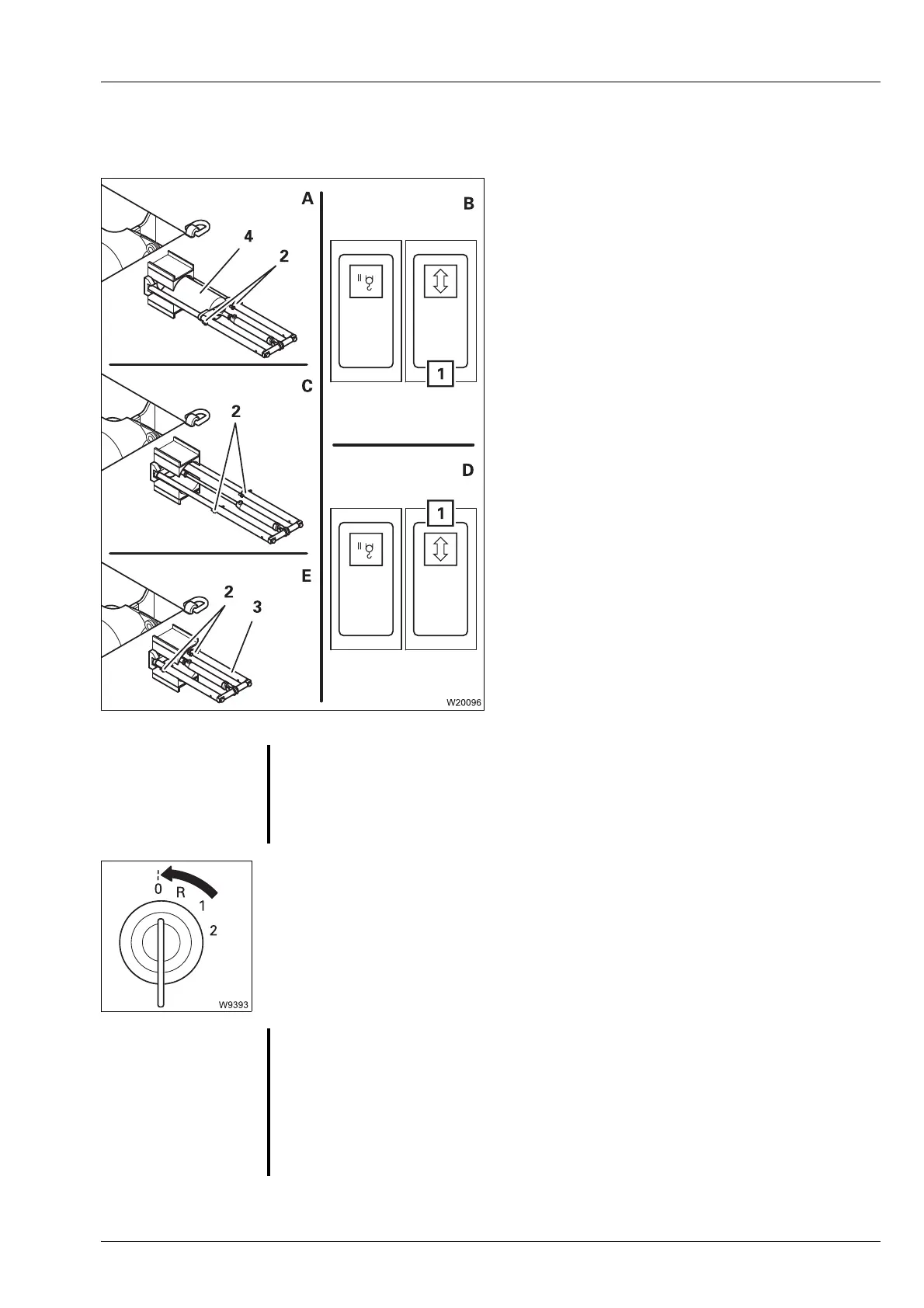

• (A) – The pivot pin (4) is pulled out and the
pins (2) are inserted.
• (B) – Press the button (1) down.
The pivot pin (4) is pushed in.
• (C) – Remove the pins (2).
• (D) – Press the button (1) up. The pulling
device retracts
• (E) – Insert the pins (2).
The pulling device (3) is now secured in
position for driving on the road.
The pivot pin is secured for crane operation.
• Turn off the crane engine.
G
Risk of accidents by exceeding the permissible vehicle width!
Before driving on public roads, always move the pulling devices to the on-
road driving position. In this way you can prevent putting other road users
at risk and causing accidents.
G
Risk of accidents due to the main boom falling down!
The pulling device secures the main boom pivot pin in the installation
position.
Do not remove the pulling device for the main boom pivot pin. By leaving
it in place you avoid the possibility that the main boom pivot pin can be
pushed out whilst the crane is in operation, whereupon the main boom
would crash down.
