6.5 Installing/removing outrigger beams
6 - 58 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
Screwing in Before you retract/extend an outrigger beam after mounting, you must
screw in the spacers.

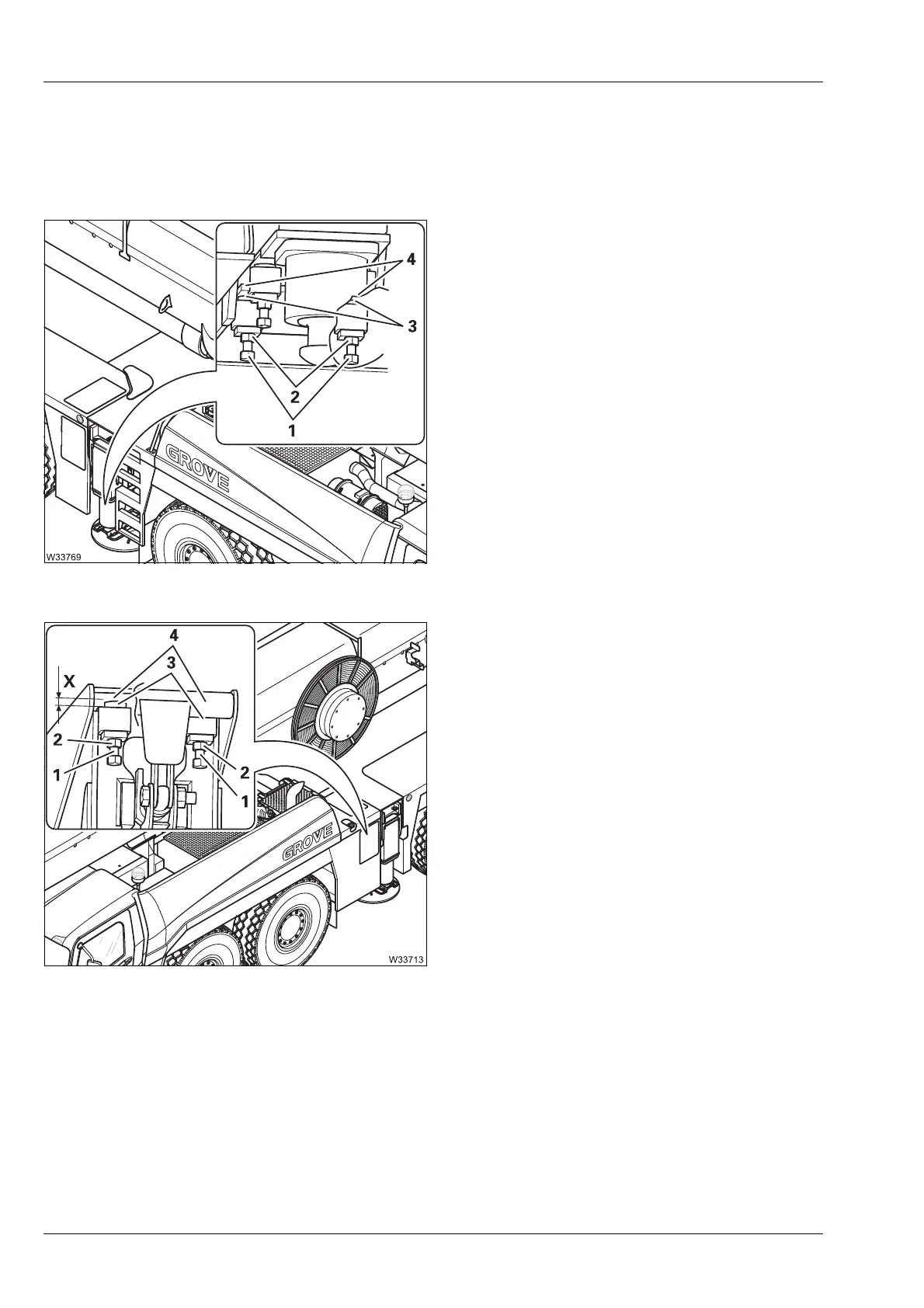

At the supporting box
• Screw in the screws (1) as far as possible
until the spacers (3) are touching the outrig-
ger beam (4) at the top.
• Ensure that the outrigger beam is aligned
horizontally.
• Lock the screws in place with the nuts (2).
At the outrigger beam
• Screw in the bolts (1),
– Until the spacers (3) lie on top on the
supporting box (4) and
– Until the distance (X) to the supporting
box (4) is an even 4 mm over the entire
width.
• Lock the screws in place with the nuts (2).
