6.5 Installing/removing outrigger beams
6 - 60 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

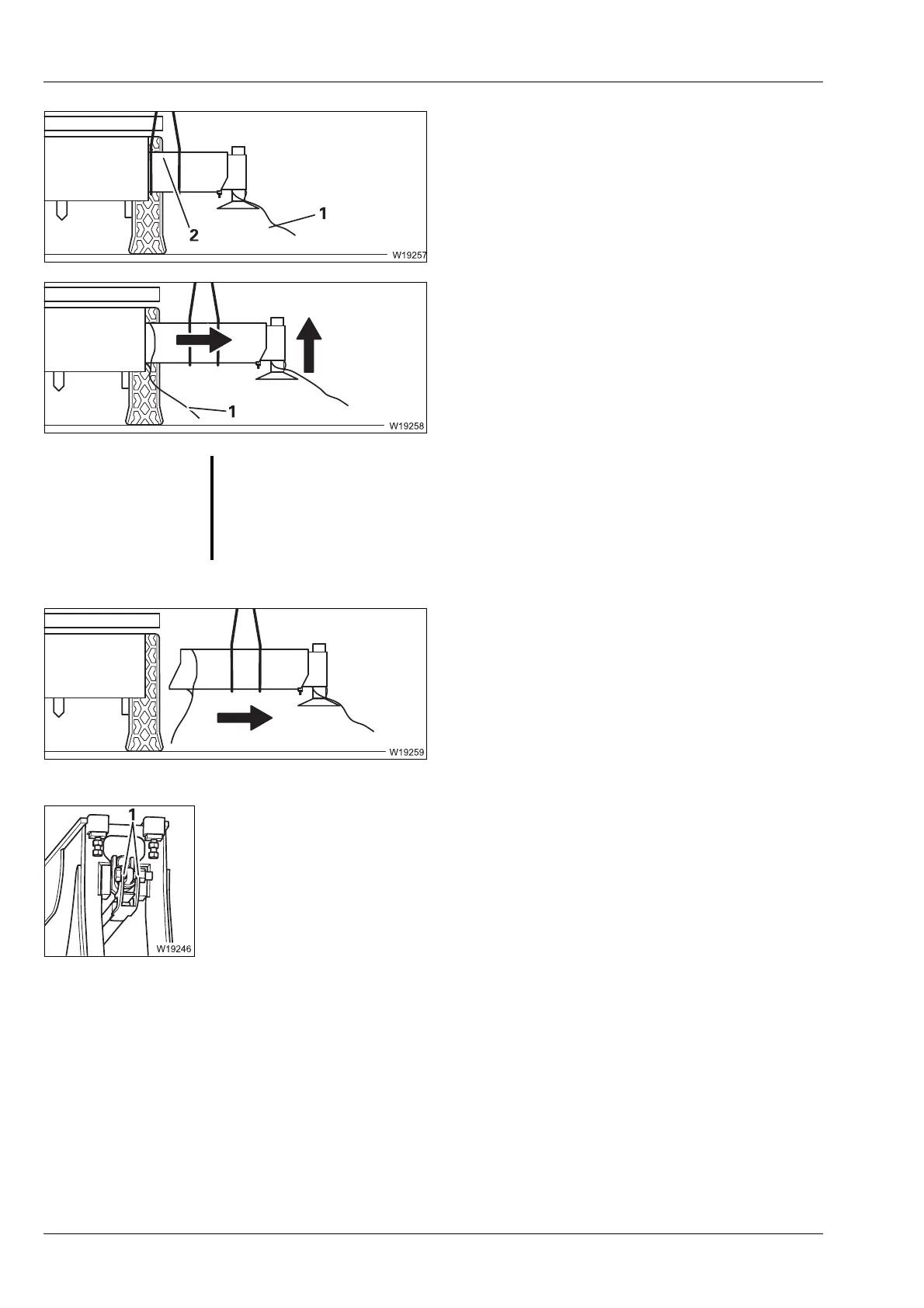

• Using the auxiliary crane, sling the outrigger
beam in the centre of gravity (2).
• Remove the chain hoist and lifting gear.
Fasten a guide rope (1).
• Lift the outrigger beam slightly to ease the
load.
• Lift the outrigger beam almost completely
out of the supporting box.
• Fasten another guide rope (1).
• Lift the outrigger beam out of the supporting
box.
• Lift the outrigger beam onto a separate vehi-
cle;
à p. 6 - 63.
• Fasten the connecting elements to the connecting points (1) of the
supports.
G
Risk of being crushed by the swinging outrigger beam!
Secure the outrigger beam with the guide ropes as it is lifted out of the sup-
porting box.
Keep a suitable distance to avoid injuring yourself or others on the swing-
ing outrigger beam.
