Operating elements for crane operation
9.2 Short description of the operating elements
9 - 72 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
H
When you raise/lower the axles, the carrier's horn will sound once.

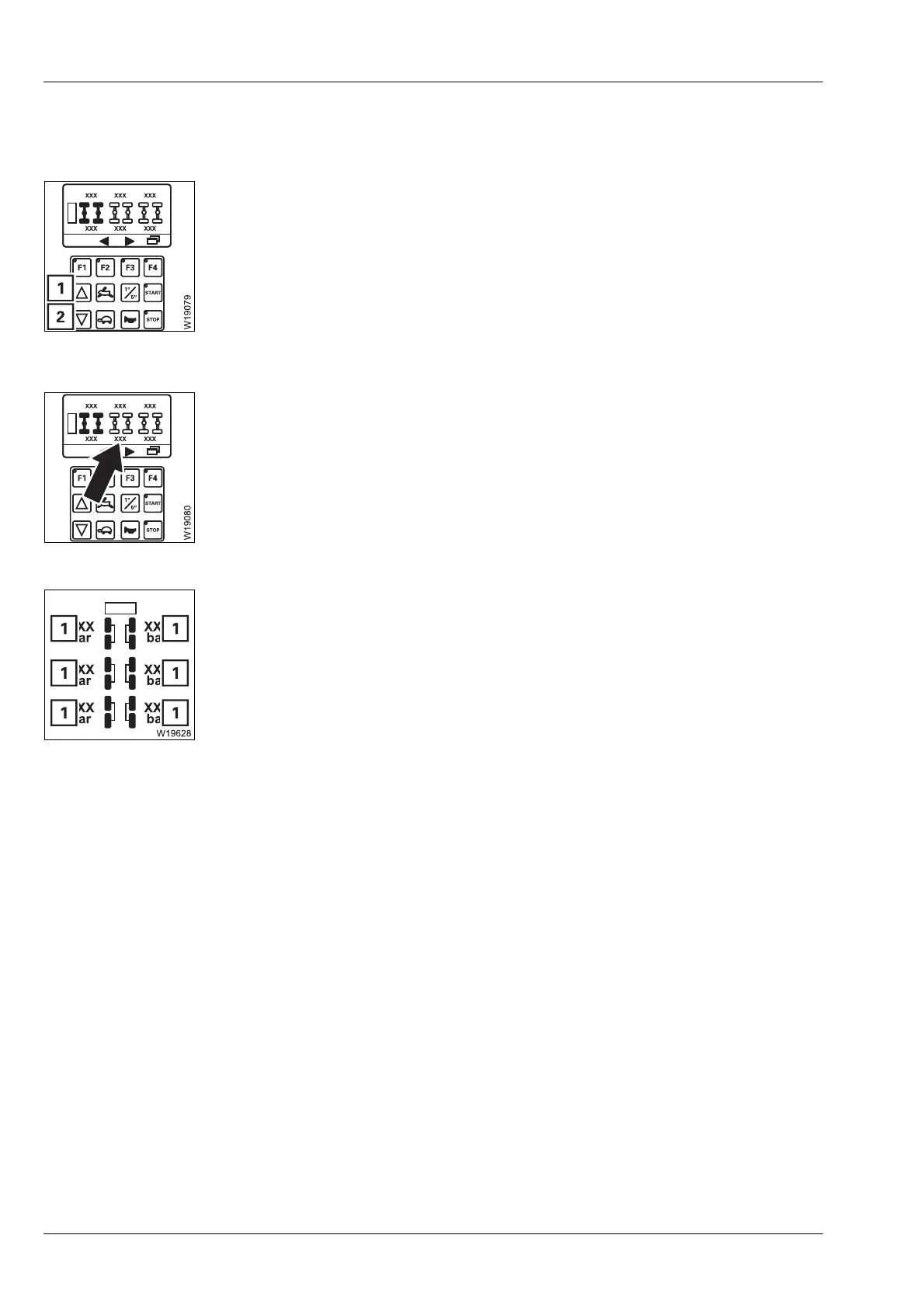

Raising/lowering axles
Movement stops after the button is released.
Axle load display
Lowering the axles not functioning
If the maximum permissible operation pressure (1) of 210 bar (3,045 psi) per
axle pair has been exceeded, then
– It is not possible to lower these axles any further
– Only the other axles can be moved.
H
Operation of the axle raising on the opposite control unit is the same.
Raise: Press button (1) – the selected axles are raised and the
truck crane is lowered
Lower: Press button (2) – the selected axles are lowered and the
truck crane is raised
– Unit of meas-
urement:
Displayed depending on setting
– t – tons or
– klbs – kilopounds – (1 kilopound = 1,000 lbs)
