Operating elements for crane operation
9.2 Short description of the operating elements
9 - 90 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

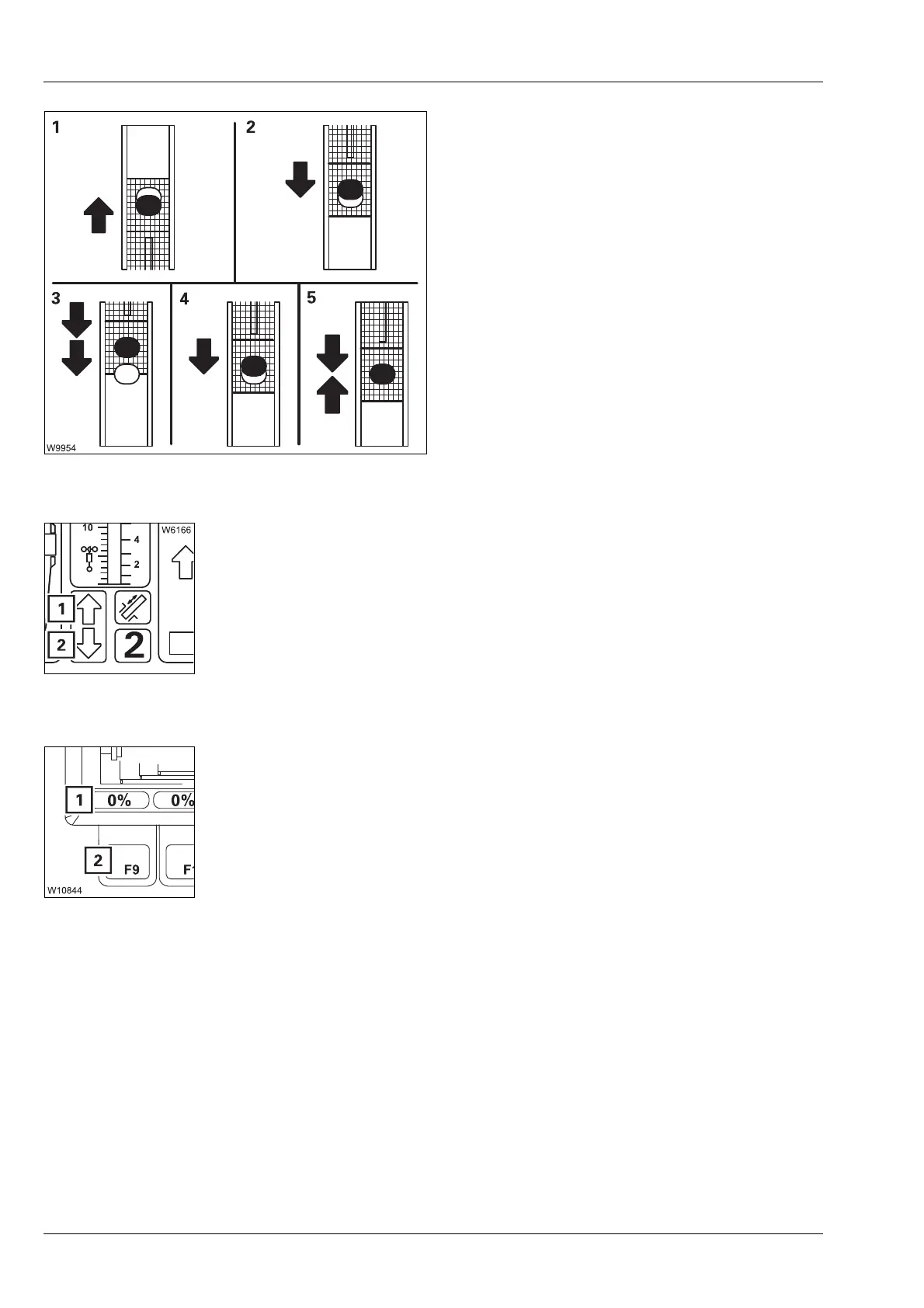

Locking point display
Direction of travel to the locking point
Distance to the locking point
Telescoping release display
Entering the set value for teleautomation
1 Extend telescoping cylinder
2 Retract telescoping cylinder
3 Yellow: approx. 1 m (3.3 ft)
4 Yellow Less than 1 m (3.3 ft)
5 Green: At the locking point
1 Extending Red: Blocked
Green: Enabled
2 Retracting Red: Blocked
Green: Enabled
1–Red:
Yellow:
Green:
Teleautomation off
Enter target value
Teleautomation on
2 Press button first time – nominal value input on
Press button once – target value to next fixed length
à p. 11 - 89
