Operating elements for crane operation
9.2 Short description of the operating elements
9 - 92 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
In the Settings
submenu

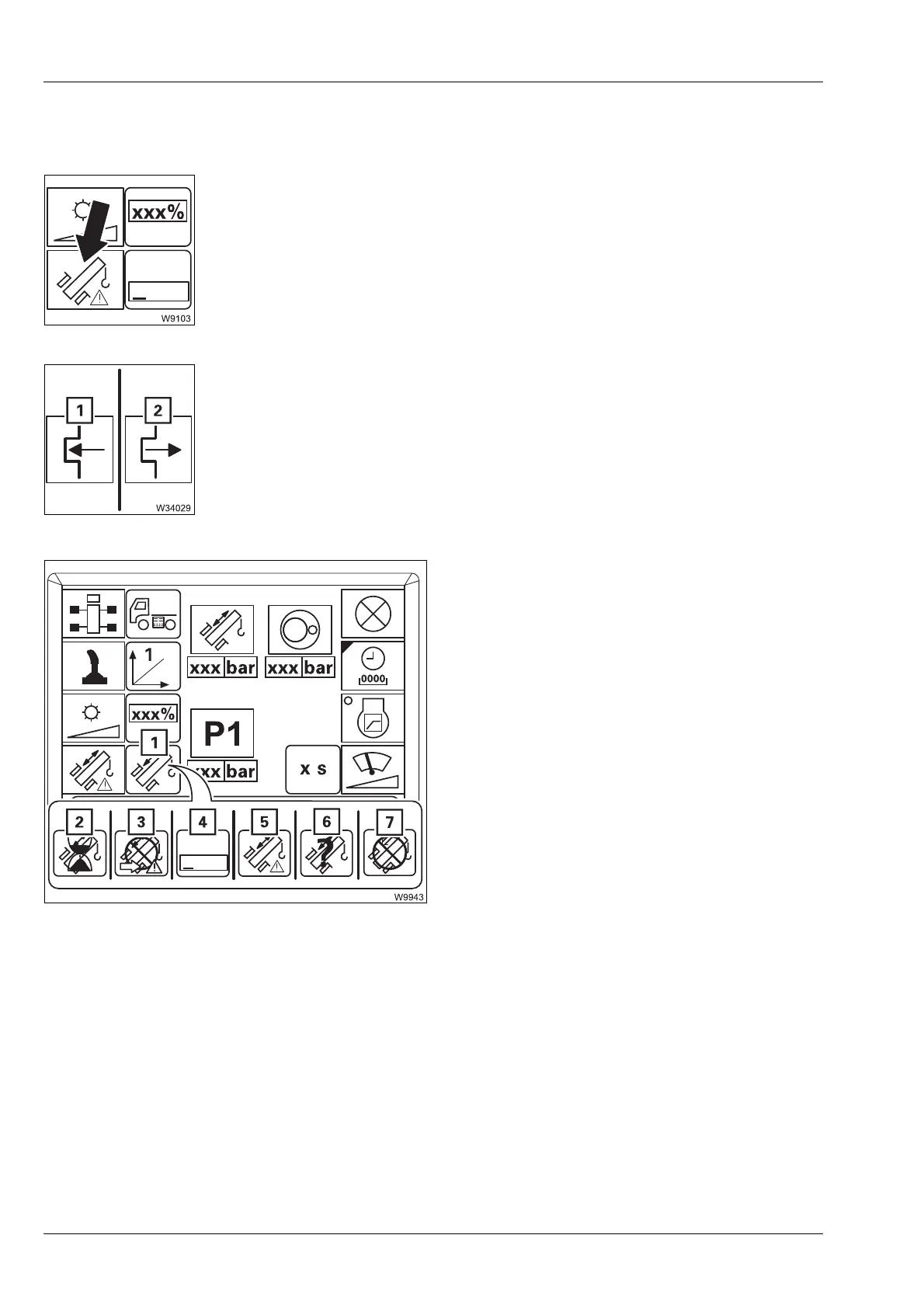

Telescoping emergency program access
The right dead man's switch is pressed.
Pivoting the swing-away lattice in the emergency programme
Current telescoping mechanism status
display
The current status is shown using different
symbols:
à p. 14 - 19
– Press the button
once:
After entering the keycode, the emergency
program
Telescoping opens
à p. 14 - 45
1 Pivoting into the rigging position
2 Pivoting into the telescoping position
à p. 14 - 45
1 Normal
2 Waiting
3 Emergency program access
4 Keycode input
5 Emergency program
6 Telescope status divergence
7 Inactive
