Crane operation
11.2 Operation of the rated capacity limiter
11 - 32 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
Checks • Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
• Check:
Hoists display
The lamp that lights up must always be for the hoist with which the load is
to be lifted:
• Switch over the display if necessary; à Example of how to switch over the
display
, p. 11 - 33.
• If you need to correct the values, press the button (1) and open the Enter
rigging mode
submenu.
You can start working with the crane if the current rigging mode of the truck
crane is displayed.
G
Risk of accidents due to an incorrectly set RCL!
If the current rigging mode varies from the displayed rigging mode, the
maximum load displayed by the RCL will not correspond to the actually
permissible lifting capacity according to the
Lifting capacity table.
Overloading and accidents will certainly be the result.

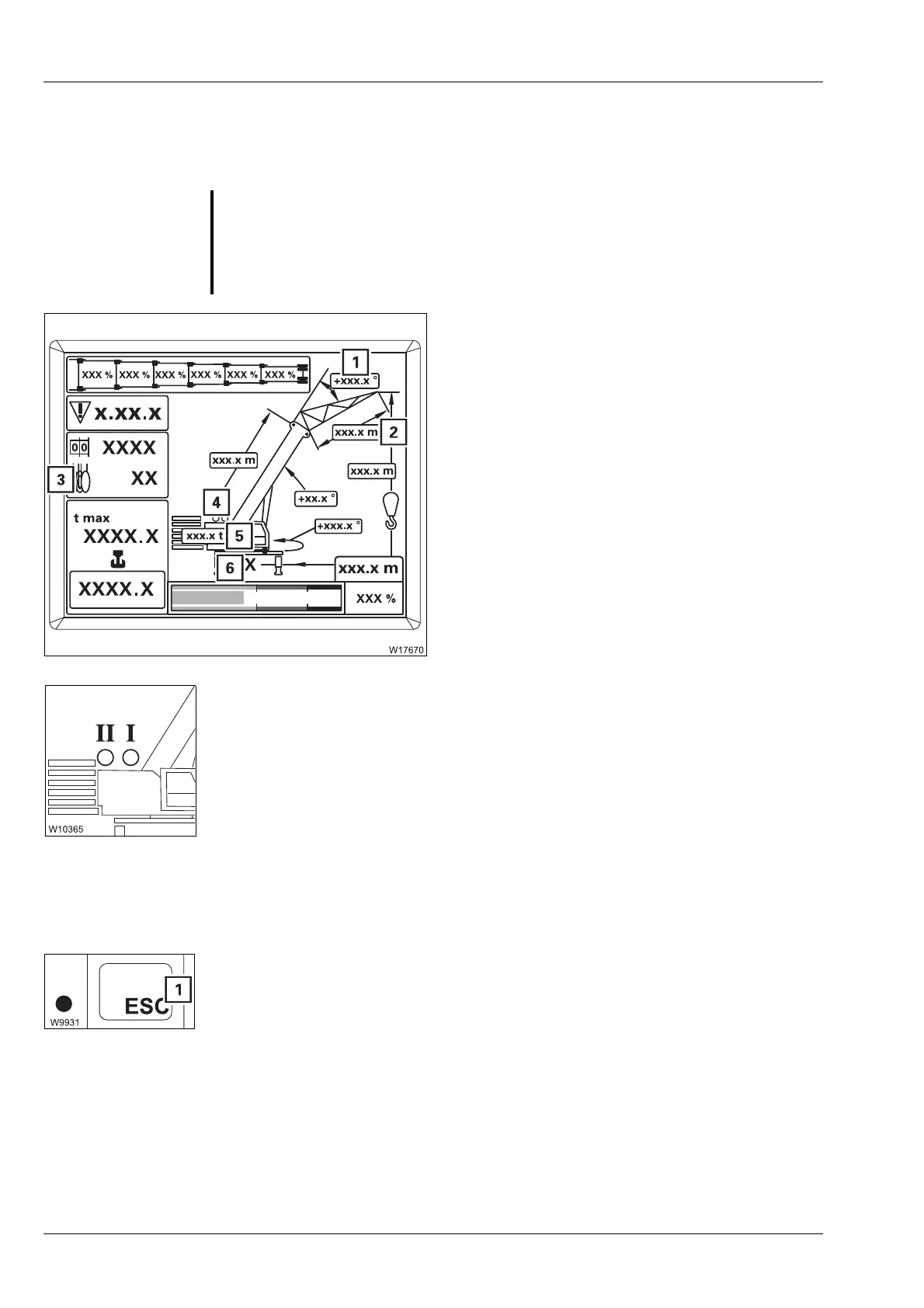

1 The angle of the rigged lattice
extension – inclinable
2 The length of the rigged lattice
extension
3 The number of reeved hoist rope lines
4 The hoist that is switched on
5 The rigged counterweight
6 The rigged outrigger span
Lamp I: Must light up if the load is to be raised with the main hoist.
Lamp
II: Must light up if the load is to be raised with the auxiliary
hoist.
