Crane operation
11.5 Working range limiter
Operating Manual GMK6300L 3 112 xxx en 11 - 125
xx.xx.xxxx

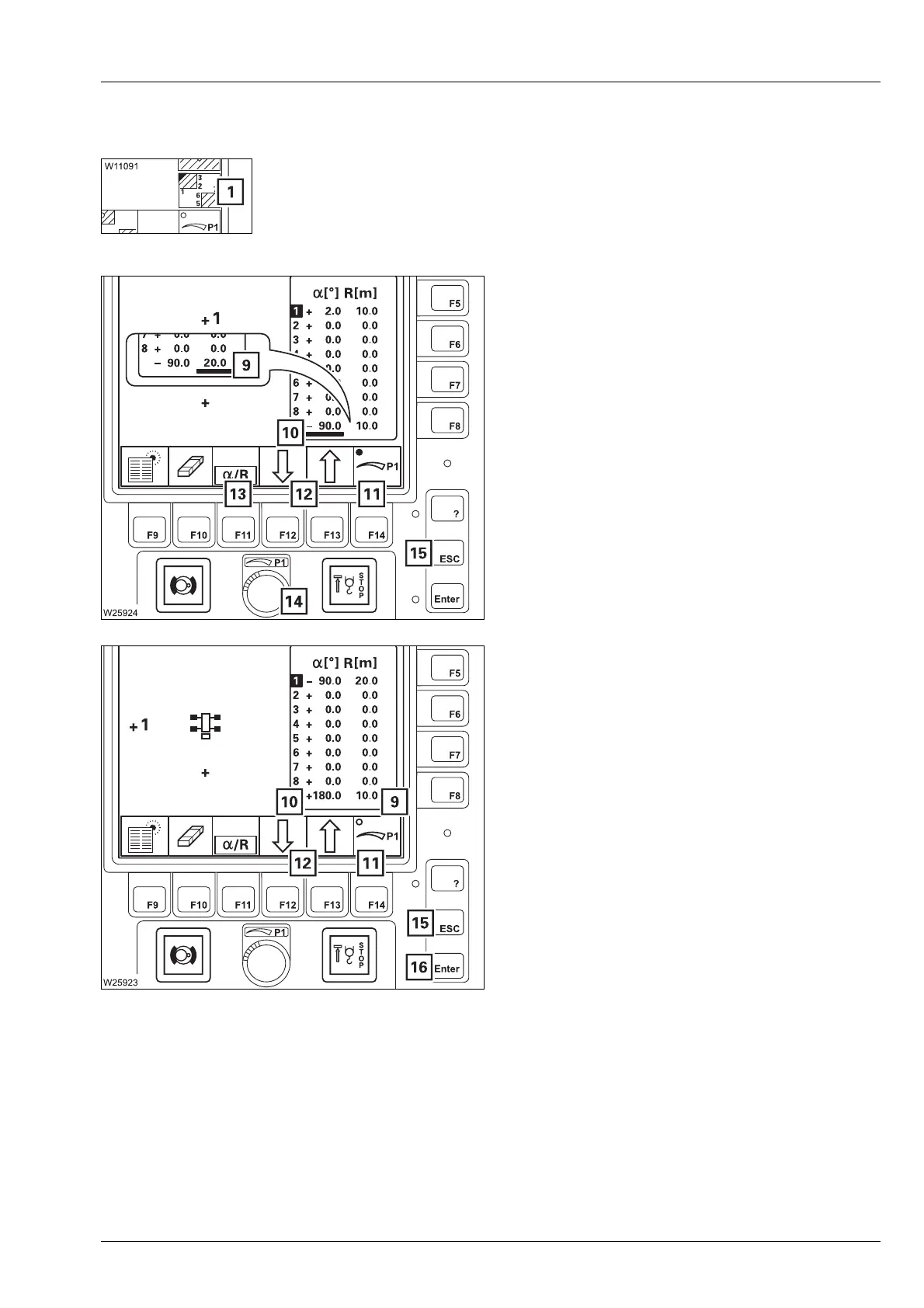

Objects Objects are entered in a submenu.
• Press the button (1) once.
The
Enter objects submenu opens.
• With the buttons (12), select the desired
point, e.g. point (1) – blue.
• Press button (11) once – the dot will turn
green, manual input on.
• With button (13) select one of the following:
– the slewing angle – bar (10) is red, or
– the working radius – bar (9) is red,
Input on. To cancel input – press button (15)
once.
• Enter the new values, e.g. -90.0° and 20.0 m
with switch (14).
• Press the button (16) once.
The new values for point (1) will be
accepted.
You can enter additional points in the same
way – button (12).
• Press button (15) once to end the input
process.
–Bar (9) or (10) goes out – display = current
main boom position,
–Dot (11) is black – manual input off.
