Crane operation
11.7 Heating and air-conditioning system
11 - 132 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

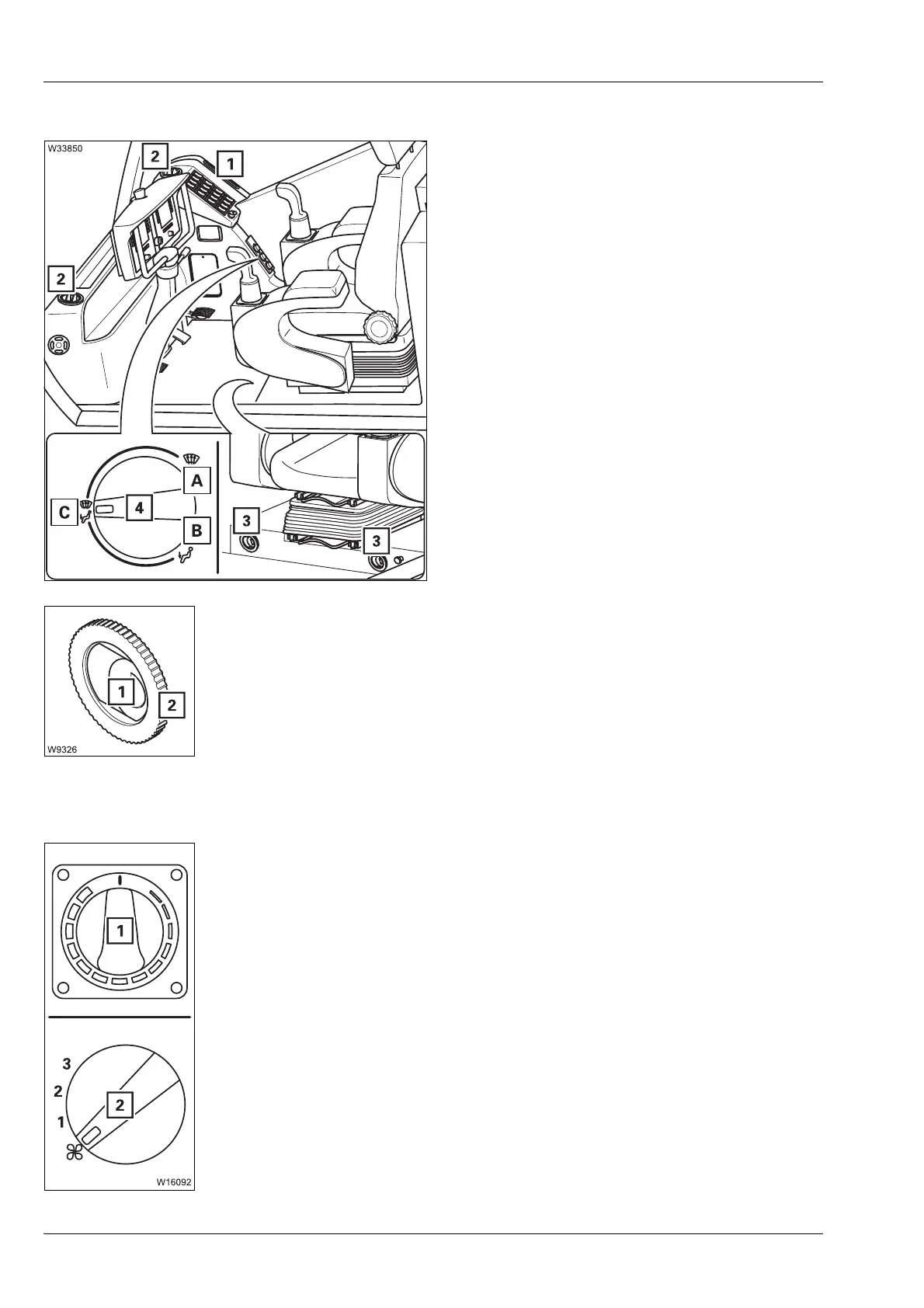

Air distribution You can direct the air to flow out of various air vents.
• Turn the switch (4) to the position for the
required air vents.
You can adjust air vents (2) and (3).
Adjusting the air vents
Switching off
Switching off the heating system
• Turn the switch (1) as far as it will go in a counter-clockwise direction, to
Cold.
Switching off the ventilation
• Turn the switch (2) to the level 0.
A Air vents (1), (2),
windscreen, centre
B Air vents (3),
cab floor
C Air vents (1), (2), (3)
1 – To open: Press in and position lengthwise
– To close: Position crosswise
– To direct the air flow: In intermediate position
2 – To direct the air flow: Slewing
