Rigging work
12.6 Outriggers
Operating Manual GMK6300L 3 112 xxx en 12 - 51
xx.xx.xxxx

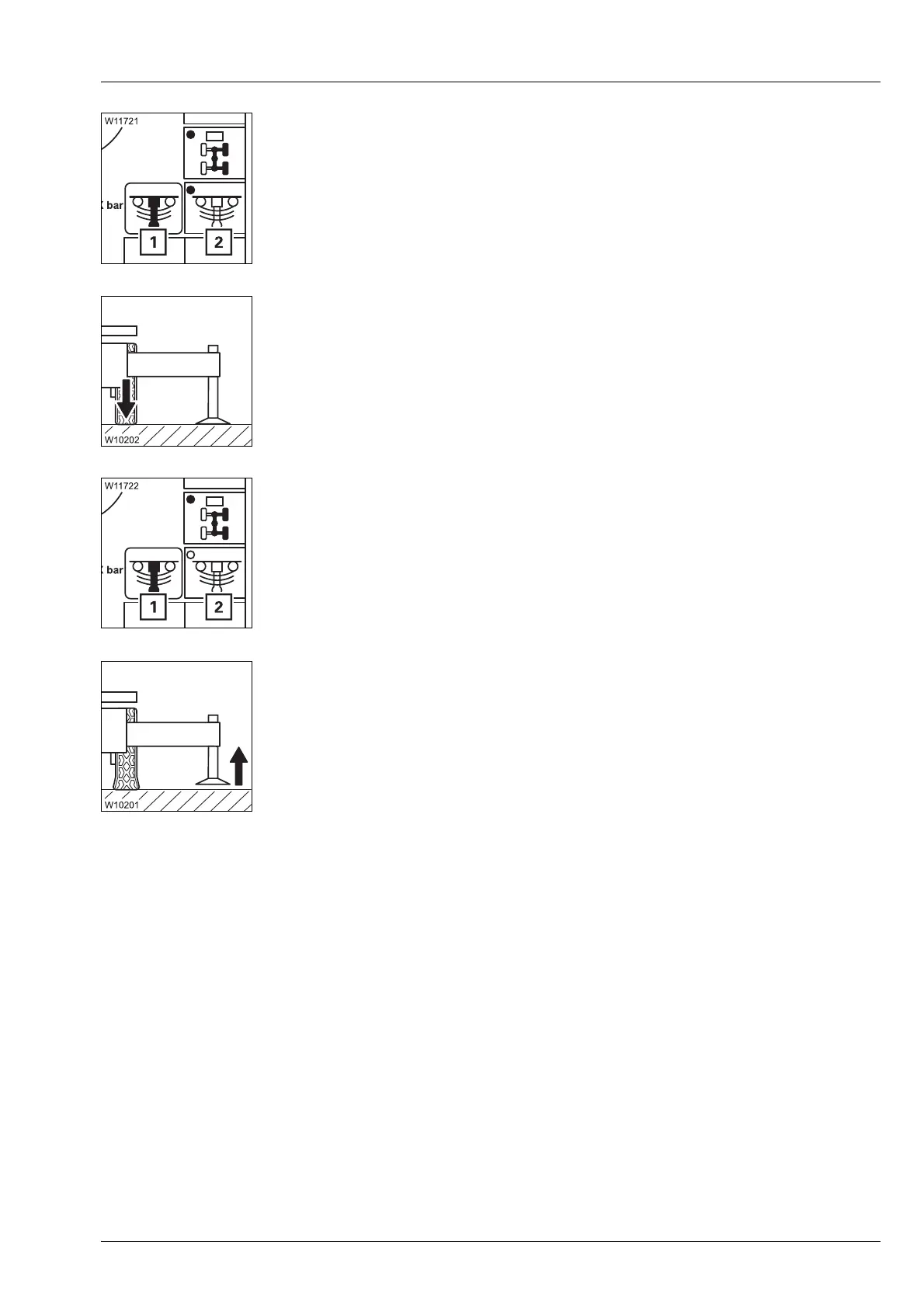

• Press the button (2) once – dot is green.
The symbol (1) is green if the suspension is switched on.
Now all wheels are lowered to the ground and are in the right position for
the horizontal alignment.
Switching off the suspension
• Press the (2) button once – dot is black.
The symbol (1) is red if the suspension is switched off.
To secure the truck crane
• Retract the supporting cylinders until the outrigger pads are about 5 to
10 cm (2 to 4 in) above the ground. Leave the outrigger beams extended.
