Rigging work
12.7 Rigging/unrigging the counterweight
Operating Manual GMK6300L 3 112 xxx en 12 - 67
xx.xx.xxxx

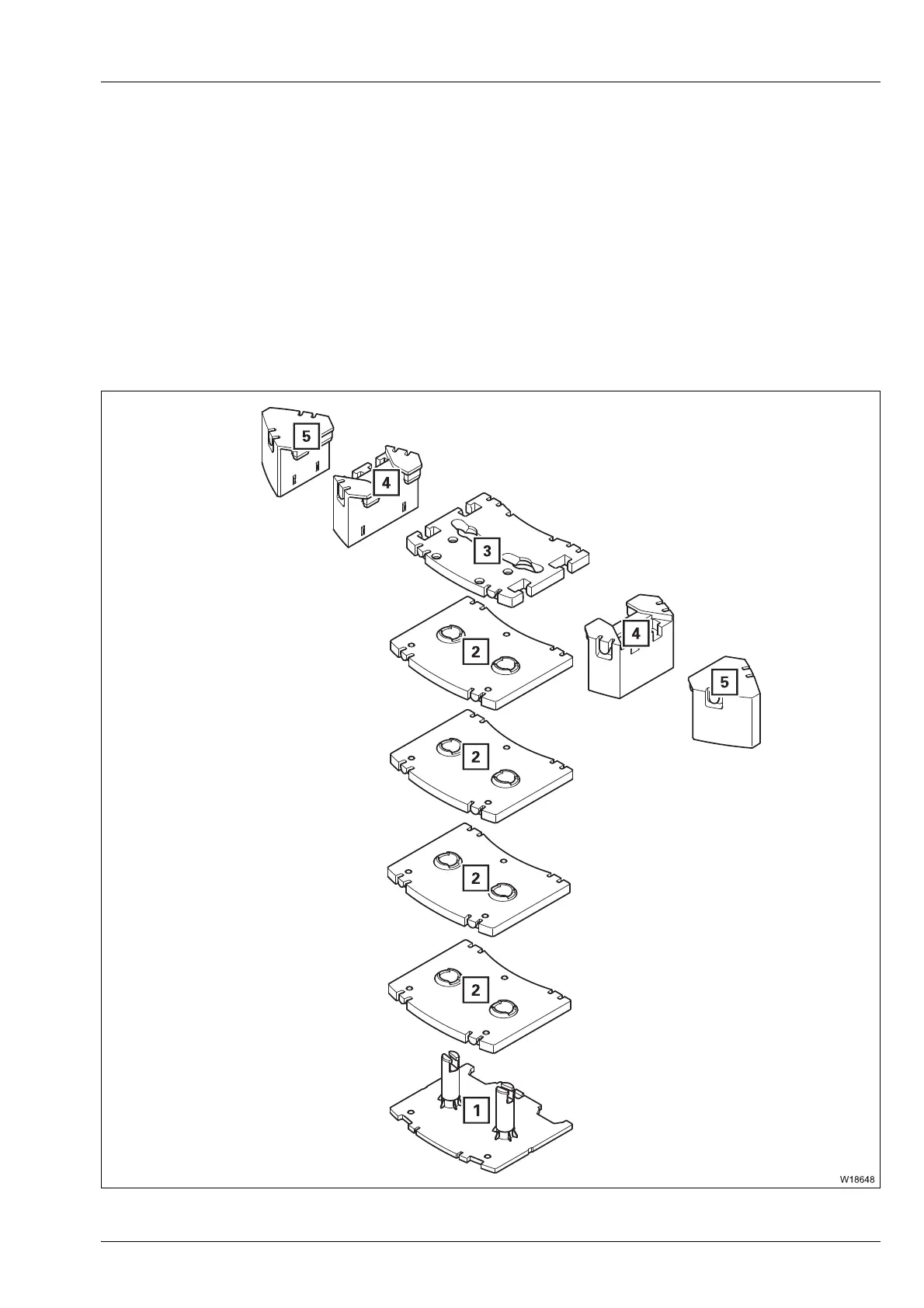

The diagram shows all counterweight sections in version A with additional
equipment (4) and (5) with the maximum counterweight mass of 92.5 t
(203,928 lbs).
– The base plate (1) must always be at the bottom.
– The counterweight sections (2) can be exchanged among each other.
– The counterweight section (3) must always be placed on top with the
54.5 t (120,152 lbs) counterweight combination.
– The counterweight blocks (4) can only be attached to the counterweight
section (3).
– The counterweight blocks (5) can only be attached to the counterweight
blocks (4).
