Rigging work
12.8 Rigging work on the main boom
Operating Manual GMK6300L 3 112 xxx en 12 - 93
xx.xx.xxxx
Reeving the hoist
rope
Opening the hook block
• Pull out the rods (2).
• Fold down the plates (1).

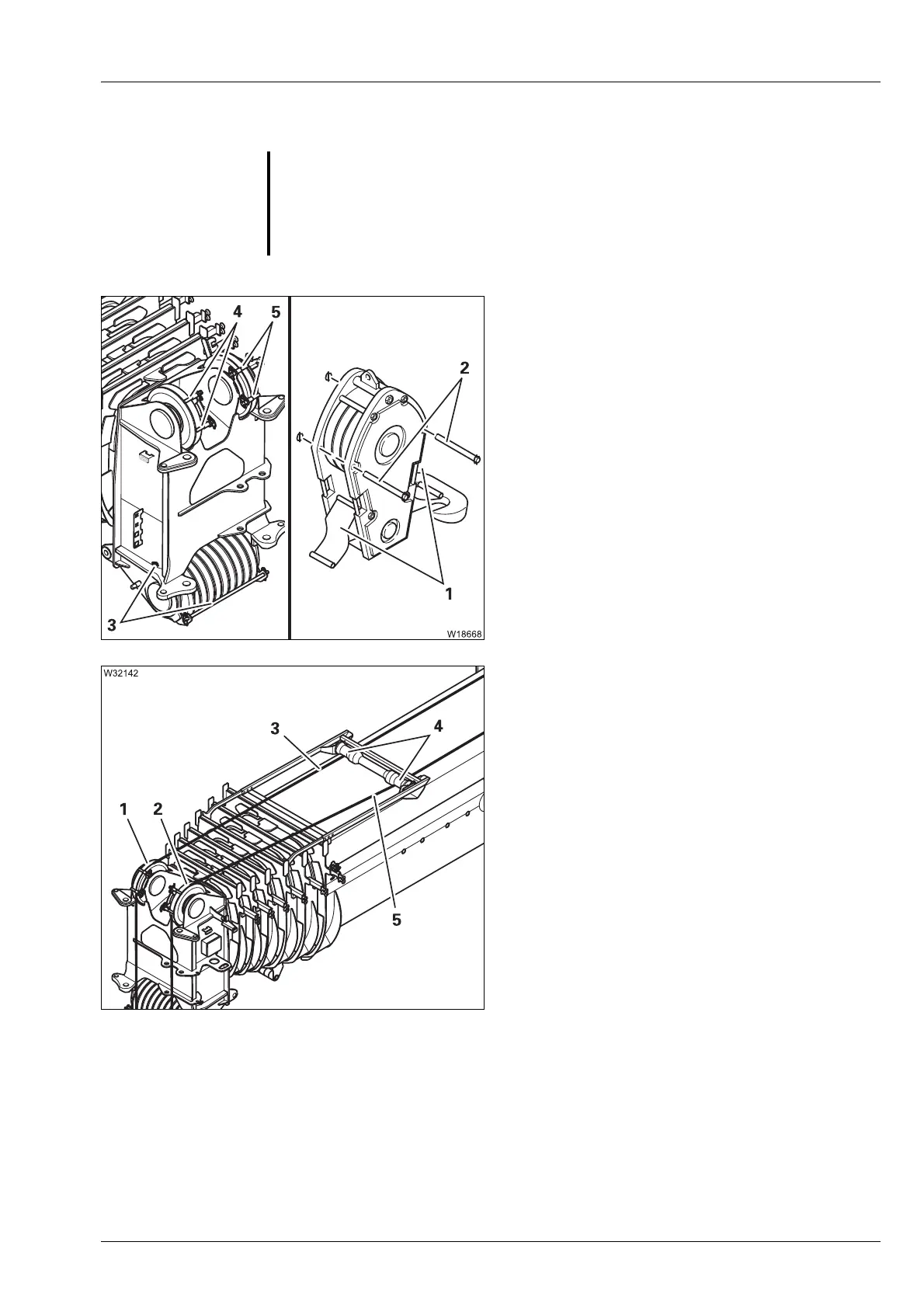

Fitting the hoist rope
• Pull out the rods (3).
• Pull out the rod (4) for the main hoist rope.
• Pull out the rod (5) for the auxiliary hoist
rope.
• Feed the main hoist rope (3) through under
the sheave (4).
• Feed the auxiliary hoist rope (5) through
under the sheave (4).
• Feed the main hoist rope (3) to the head
sheave (1).
• Feed the auxiliary hoist rope (5) to the head
sheave (2).
H
Feed the hoist rope through under the sheave (4) also when working with
the lattice extension.
s
G
Danger due to slack rope!
Only use hook blocks and sling gear of the minimum weight prescribed in
the
Lifting capacity table, depending on the reeving and boom length. This
prevents slack rope forming at large heights when lifting without a load.
This can result in the load slipping.
