Rigging work
12.8 Rigging work on the main boom
Operating Manual GMK6300L 3 112 xxx en 12 - 95
xx.xx.xxxx

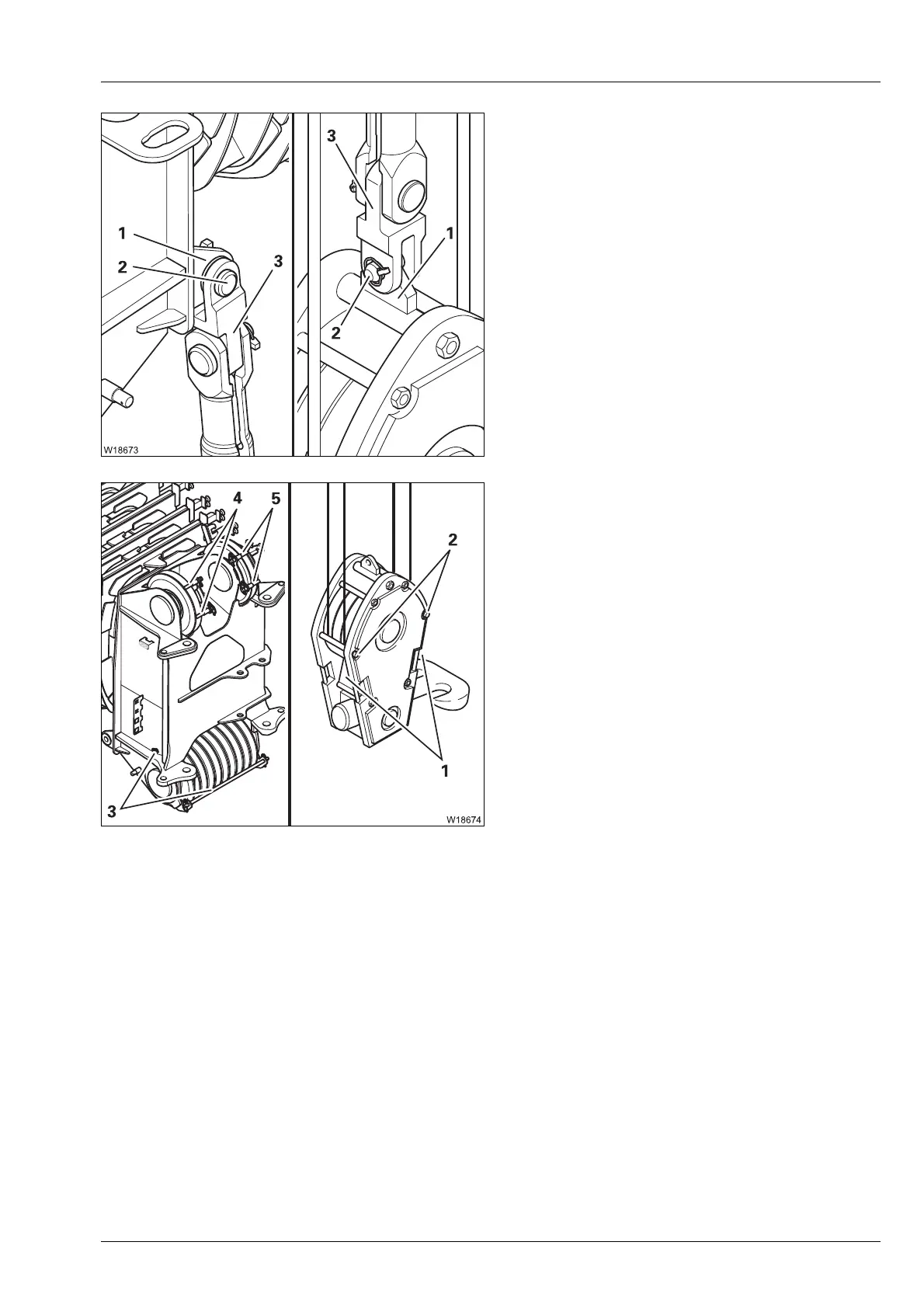

Rope end fitting
• Insert the rope end fitting (5) at the fixed
point (1) and secure the pin (2).
Securing the hoist rope
• Insert the rods (3) and (4), (5).
• Secure all rods using the retaining pins.
Closing the hook block
• Fold up the sheet metals (1) on both sides.
• Insert the rods (2) and secure them with the
linchpins.
