Rigging work
12.8 Rigging work on the main boom
Operating Manual GMK6300L 3 112 xxx en 12 - 111
xx.xx.xxxx

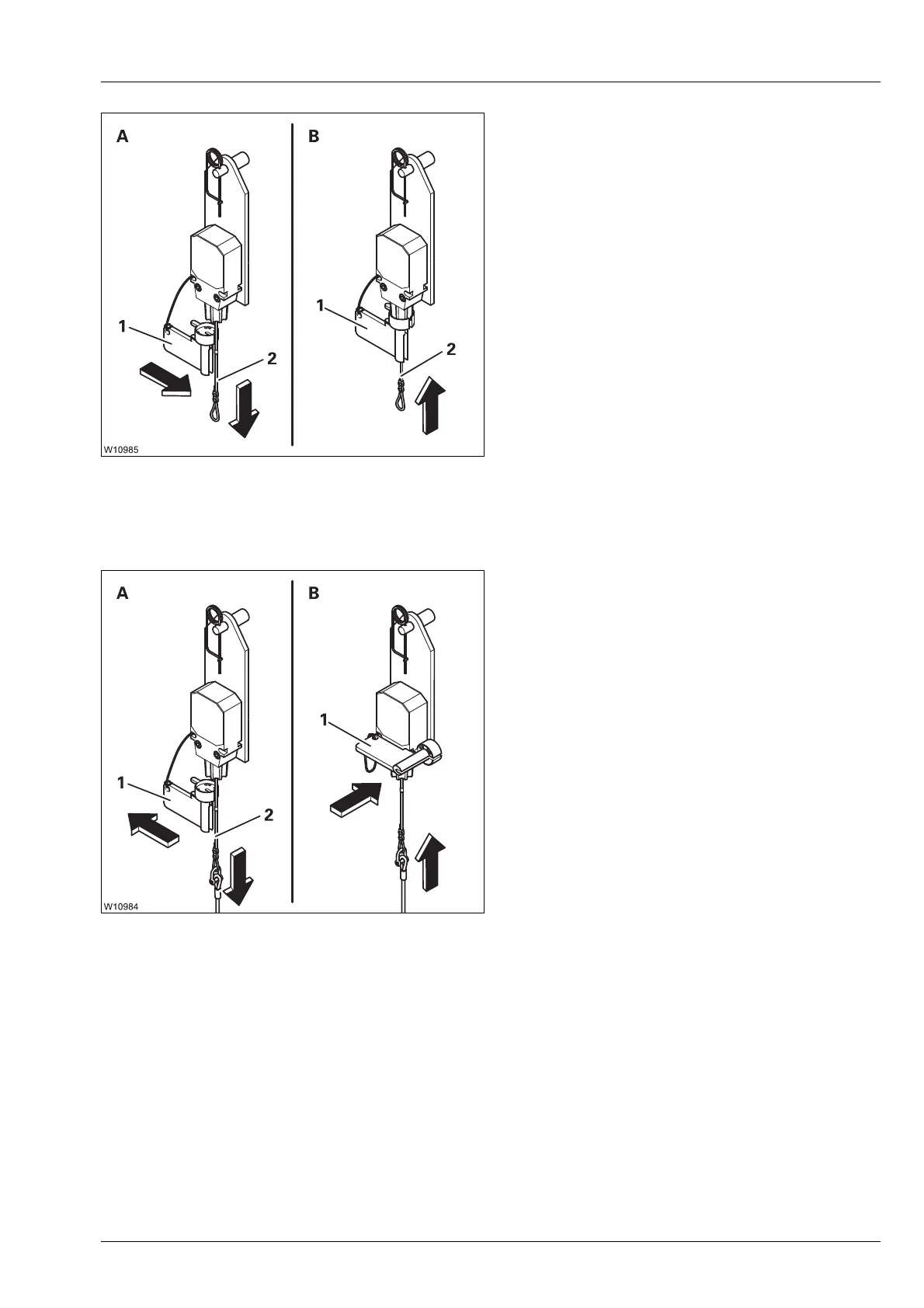

• Remove the lifting limit switch weight.
• (A) – Remove the cap (1).
• Pull down the rope (2).
• (B) – Secure the rope (2) in this position
using the cap (1) – the lifting limit switch is
locked and can no longer be triggered.
Removing the lock You must always release the locking before you place a lifting limit switch
weight around the hoist rope.
• (A) – Pull the rope (2) down and take off the
cap (1) – the locking is released.
• (B) – Fit the cap (1) onto the lifting limit
switch.
