Maintenance work on the superstructure
8.10 Hydraulic system
16.08.2018
Maintenance manual 3 302 577 en 8 - 79
GMK7450

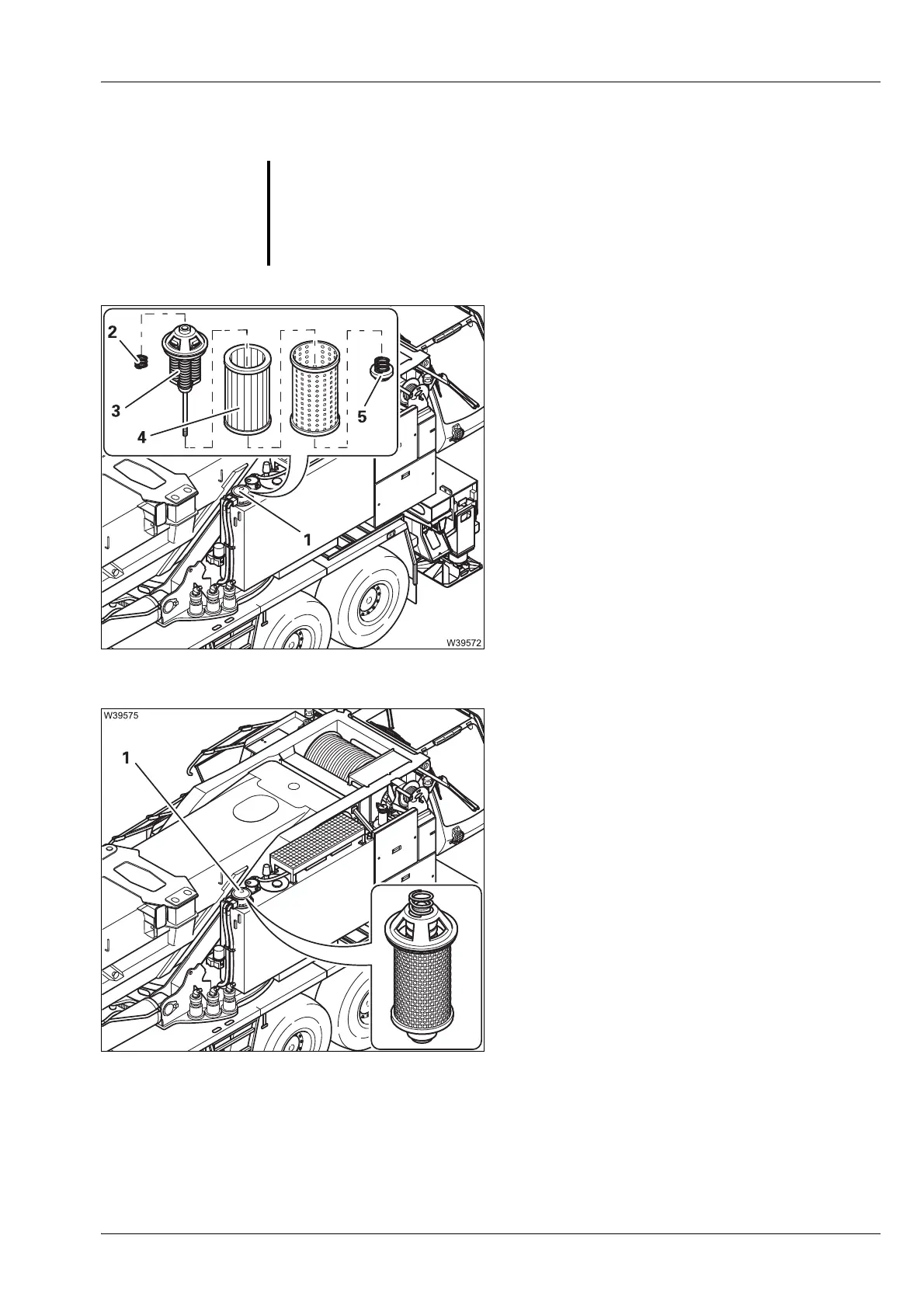

Change oil filter 1
• Take off the cap (1) and pull out the filter.
• Place the filter in a receptacle.
• Remove the spring (2).
• Remove the nut (5).
• Remove the magnetic rod (3) and filter (4)
from the filter cage.
• Clean the magnetic rod (3) and filter cage.
• Insert a new filter (4) into the filter cage.
• Replace any damaged parts, if necessary.
• Replace the gaskets (packing set) if neces-
sary.
• Assemble the filter and insert it.
• Fasten the cover (1).
s
O
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable recept
acles. Wipe up any con-
sumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
