Manitowoc GROVE GMK7450 User Manual

Maintenance work on the superstructure
8.10 Hydraulic system
8 - 80 3 302 577 en Maintenance manual
GMK7450
16.08.2018

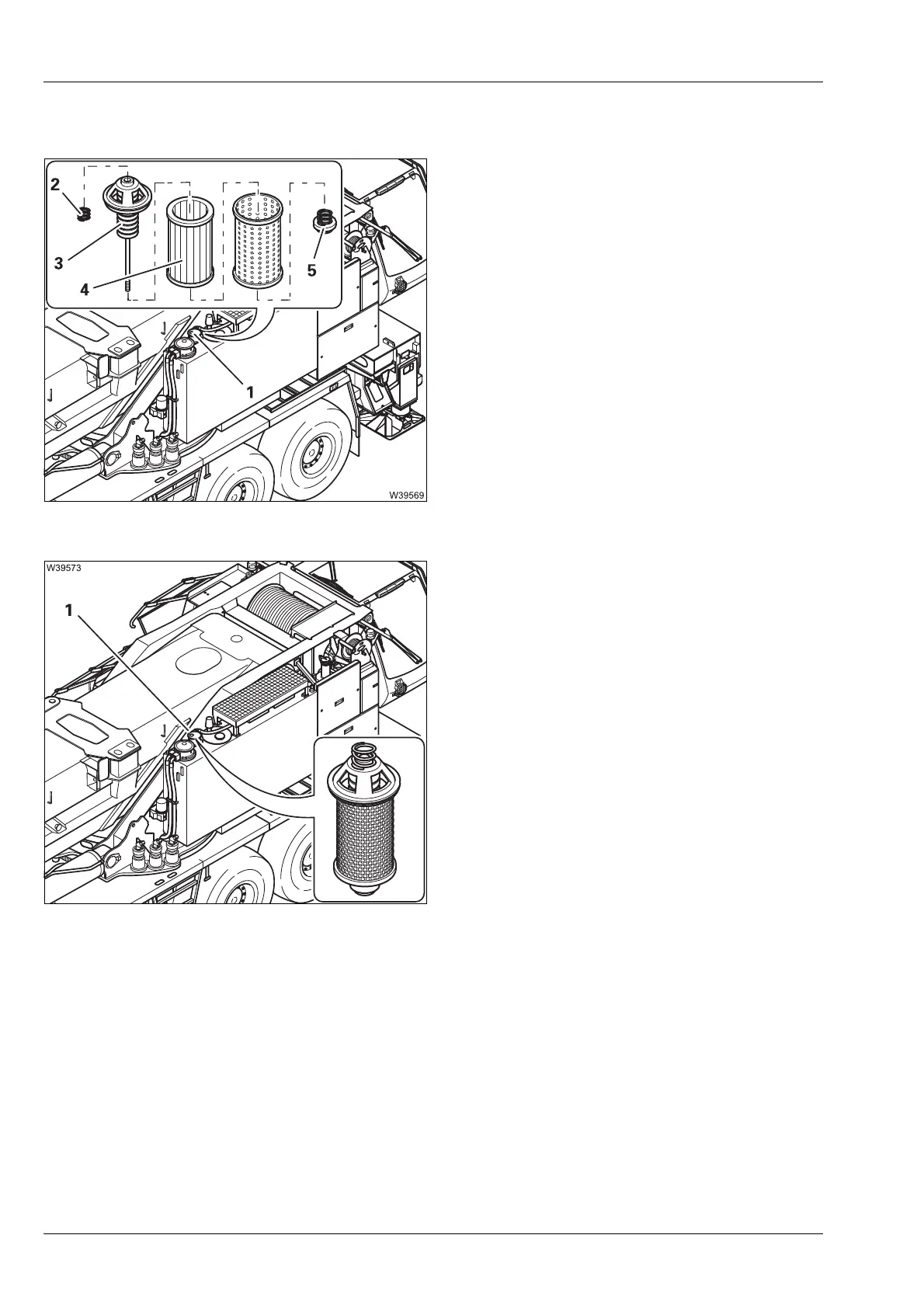

Change oil filter 2
• Take off the cap (1) and pull out the filter.
• Place the filter in a receptacle.
• Remove the spring (2).
• Remove the nut (5).
• Remove the magnetic rod (3) and filter (4)
from the filter cage.
• Clean the magnetic rod (3) and filter cage.
• Insert a new filter (4) into the filter cage.
• Replace any damaged parts, if necessary.
• Replace the gaskets.
• Assemble the filter and insert it.
• Fasten the cover (1).
