MI 2893 / MI 2892 / MI 2885 Connection setup
153
Automatic current clamps recognition
Metrel developed Smart current clamps product family in order to simplify current clamps selection and
settings. Smart clamps are multi-range switchless current clamps automatically recognized by
instrument. In order to activate smart clamp recognition, the following procedure should be followed
for the first time:
1. Turn on the instrument
2. Connect clamps (for example A 1227) to MI2893/MI 2892/MI 2885
3. Enter: Measurement Setup Connection setup Phase/Neutral Curr. Clamps menu
4. Select: Smart clamps/T
5. Clamps type will be automatically recognized by the instrument.
6. User should then select clamp range (Auto range or fixed one) and confirm settings.

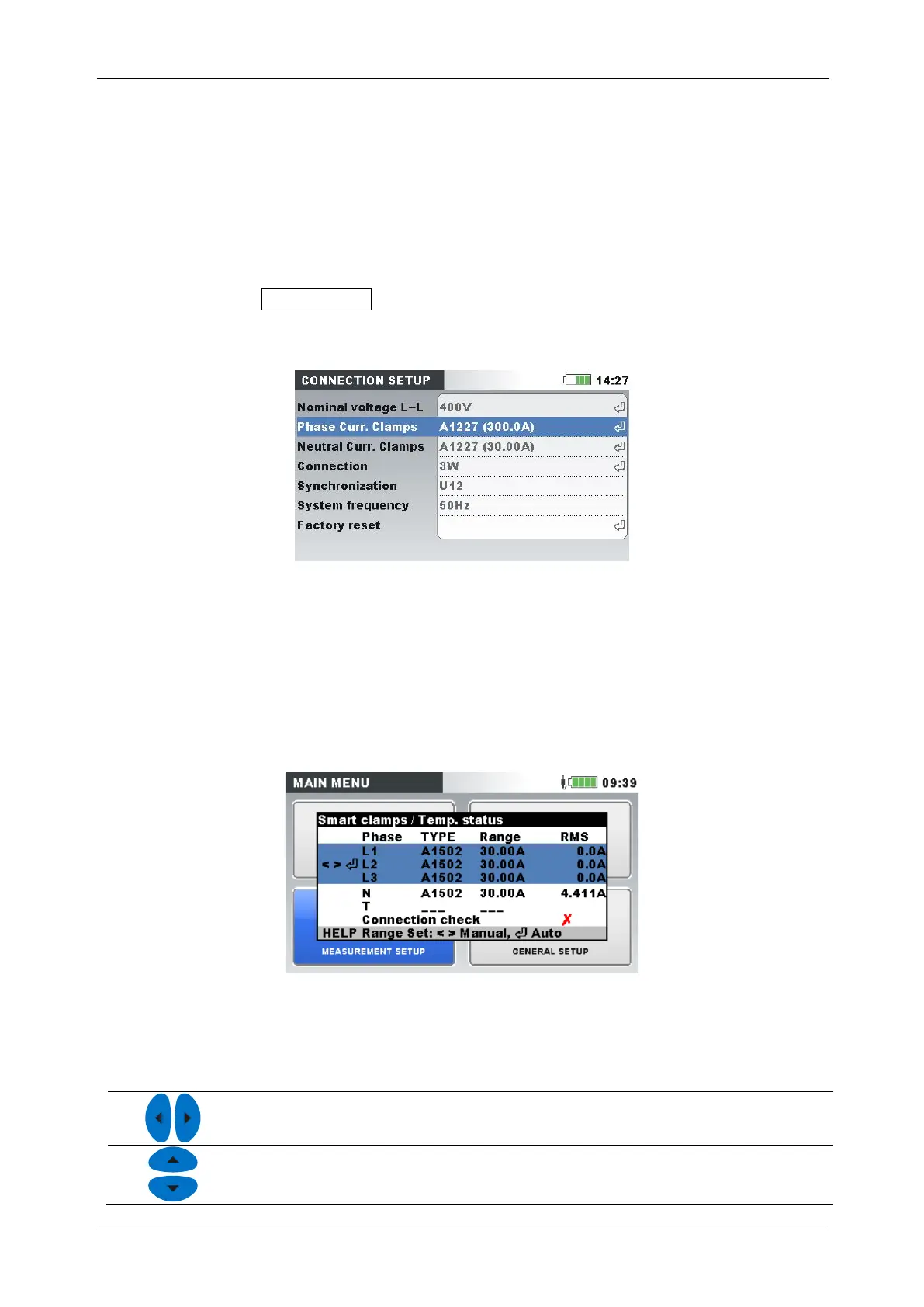

Figure 131: Automatically recognised clamps setup
Instrument will remember clamps setting for the next time. Therefore, user only need to:
1. Plug clamps to the instrument current input terminals
2. Turn on the instrument
Instrument will recognize clamps automatically and set ranges as was settled on measurement before. If
clamps were disconnected following pop up will appear on the screen (See Figure below). Use cursor
keys to select Smart clamp current range.
Figure 132: Automatically recognised clamps status
Table 124: Keys in Smart clamps pop up window
Changes Clamps current range.
Selects Phase or Neutral current clamps.
