MI 2893 / MI 2892 / MI 2885 Remote instrument connection (over Internet / Internet(3G/GPRS) /
Intranet (LAN))
165

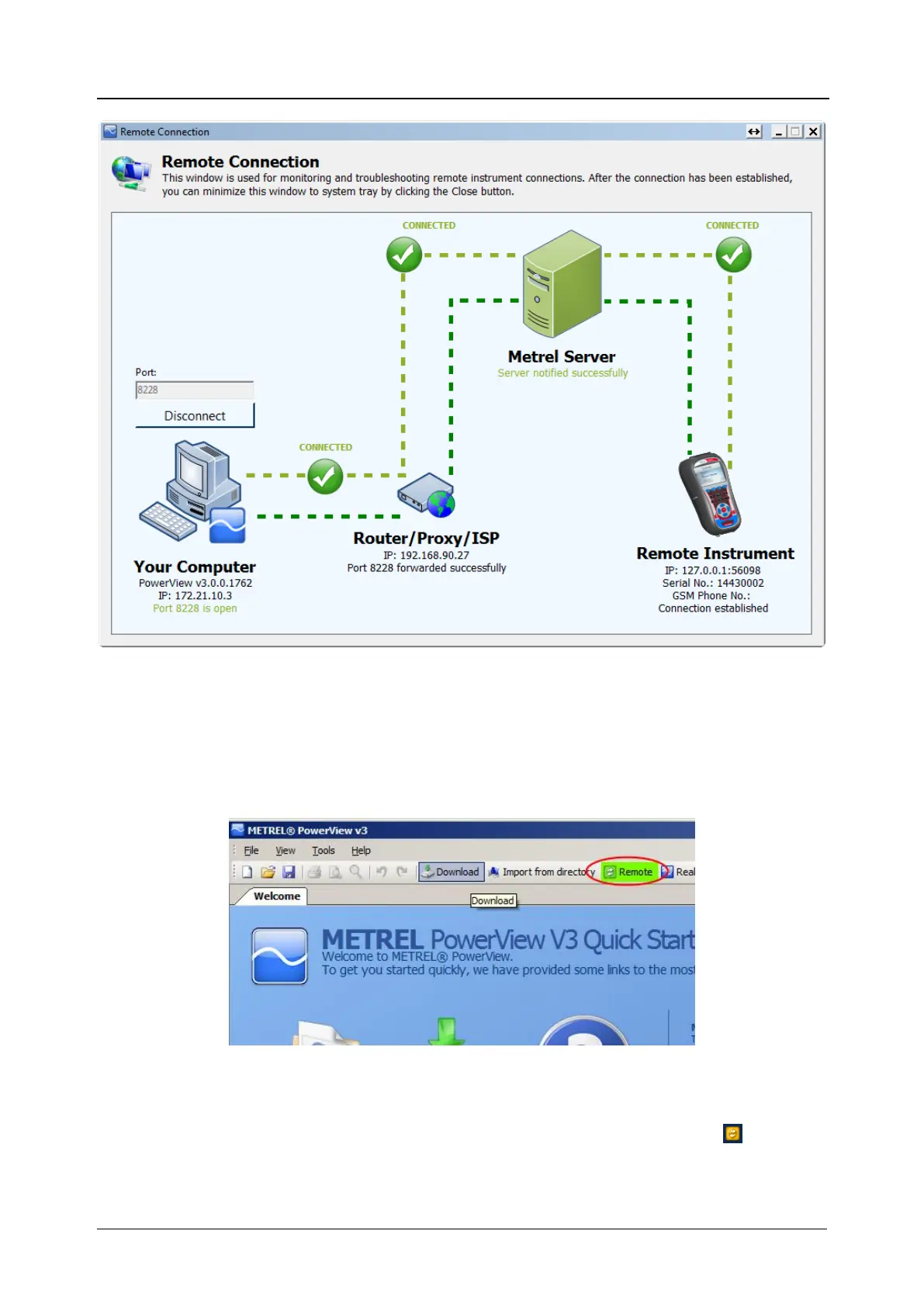

Figure 140: Remote instrument connection to PowerView v3.0 established (Step 4)
While the data is refreshed, the Remote button is displayed in green, to indicate that the connection is
active, as shown below. If it is displayed in orange colour, it means that the communication was broken
and it should be reinitialized by user.
Figure 141: Active connection indication
Remote connection screen can also be accessed through Windows tray bar, by clicking on icon. This
is particularly useful to reconnect instrument and PowerView v3.0, after network failure.
