System Interface Spirometry Tab (A5 Only)
You can press the button (see FIGURE 3-18) to see the spirometry loop and waveforms (see
FIGURE 3-17).

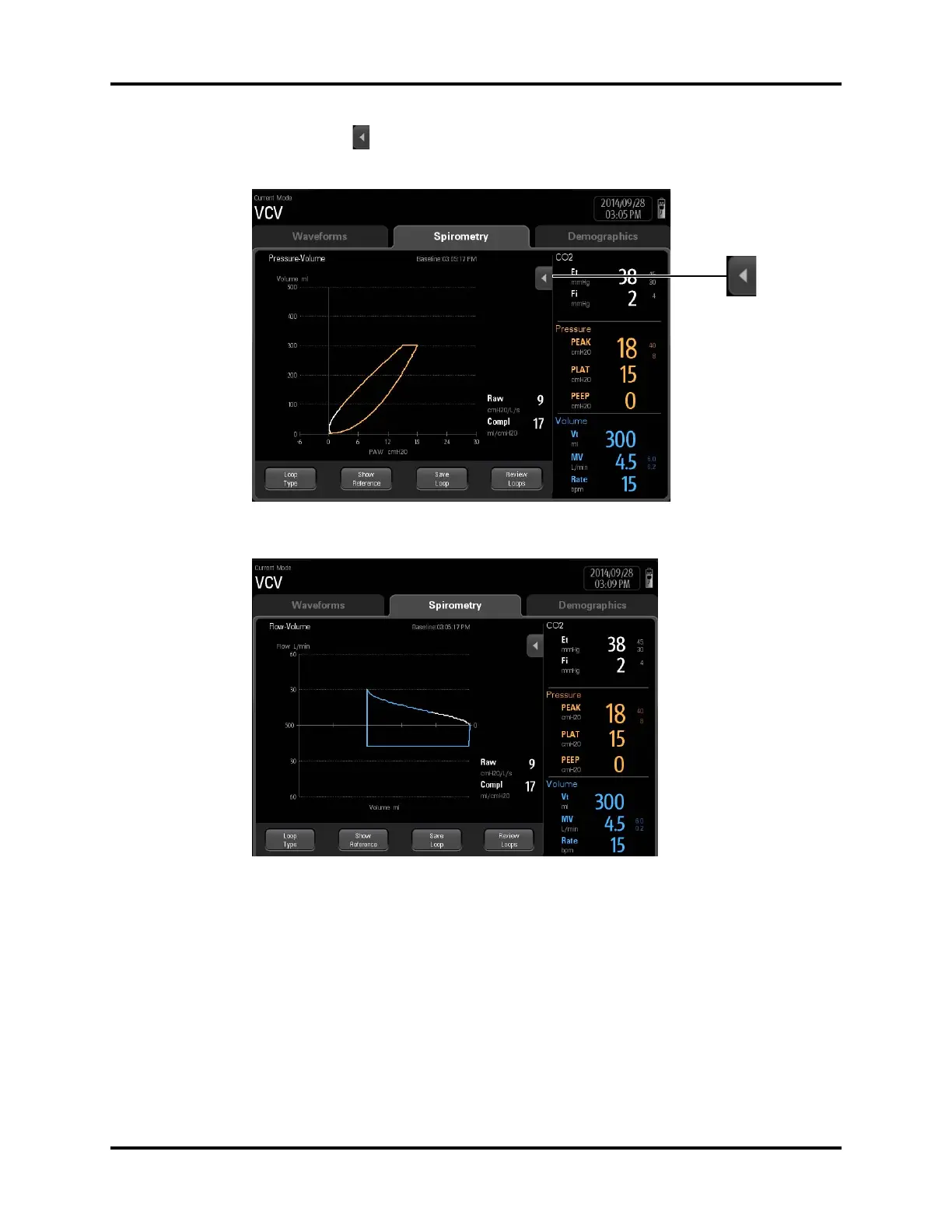

FIGURE 3-18 Spirometry: Pressure-Volume Loop
FIGURE 3-19 Spirometry: Flow-Volume Loop
