13-22 Probes and Biopsy
 NGB-011
 NGB-016

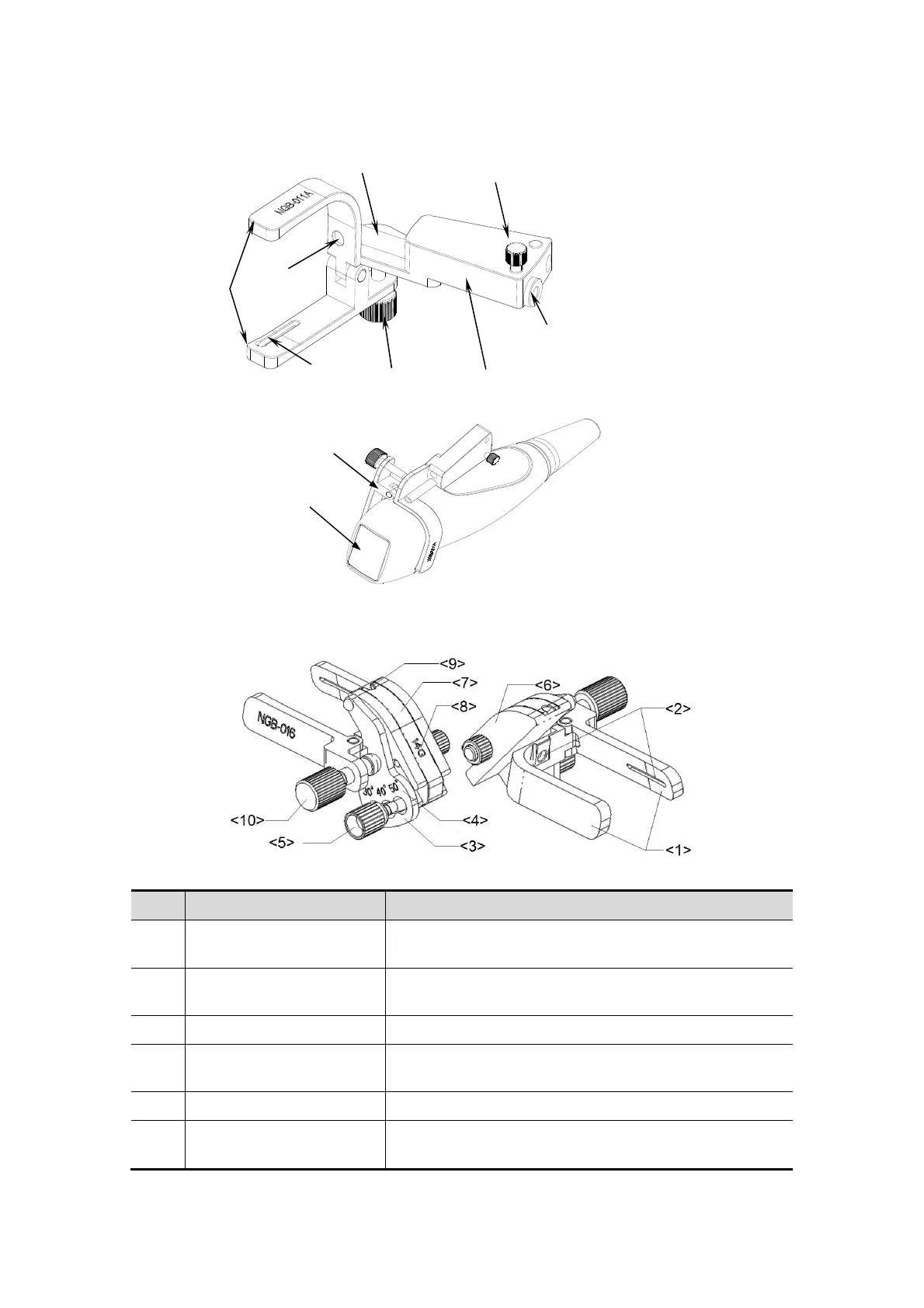

No. Name Description
<1>
Clamp of needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
<2>
Groove of the needle-
guided bracket
Matches with the tab of the probe.
<3> Angle adjusting base There are 3 types of angles available to be adjusted.
<4>
Angle shift sign (30°, 40°,
50°)
Matches with the biopsy angle. (30°, 40°, 50°).
<5> Angle pinch nut Used for fixing the angle lock at a chosen angle.
<6> Angle block
Determines the angle of the biopsy; different
specifications of blocks can be used.
Needle guide rack
Needle guide
hole
Grip
knob
Locating groove
Clamp
Clamping knob of
the needle
g
uide
Needle guide
Locating
p
it
Probe
Needle-guided
b
r
ac
k
et
