Probes and Biopsy 13-23
No. Name Description

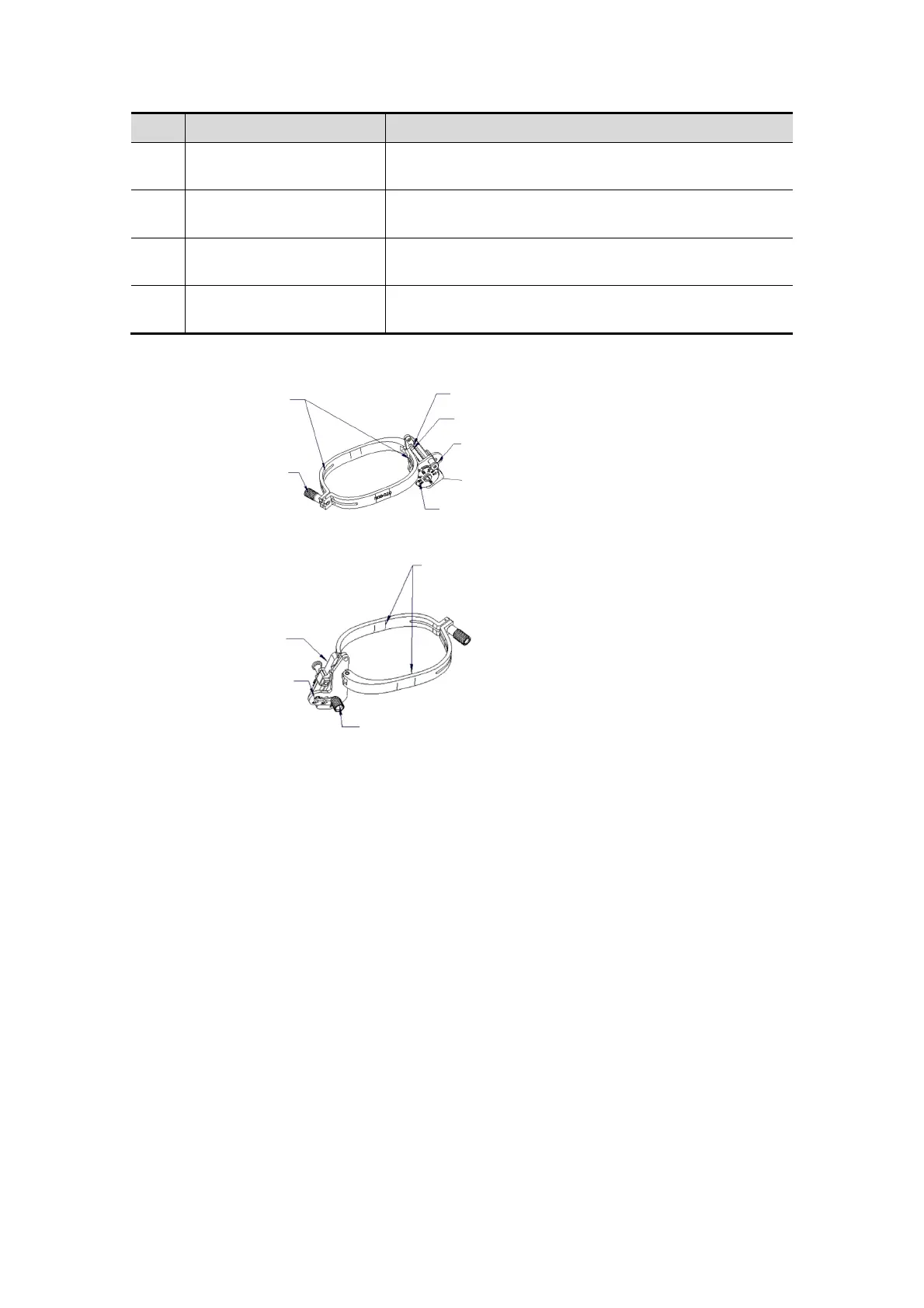

<7> Guiding block
Used for installing the needles of different
specifications, 5 types of needles are available.
<8>
Specification of guiding
block (14G)
Matched with the corresponding biopsy needle (14G).
<9>
Guiding hole of biopsy
needle
Used for installing the needles.
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
probe.
îš„ NGB-020
13.2.3 Needle-guided Bracket Inspection and
Installation
Inspection of the Needle-guided Bracket
Be sure to perform inspections before and after use of the needle-guided bracket. If an
abnormality is found on the needle-guided bracket, immediately stop using it and contact
MINDRAY Customer Service Department or sales representative.
1. Sterilize the needle-guided bracket before and after use.
2. Confirm that the needle-guided bracket is free of damage, deformation, stripping,
and malfunction, loose or missing parts.
3. Confirm that the needle-guided bracket is securely mounted in the correct position.
Installing the Needle-guided Bracket
îš„ NGB-004
(1) Put on the sterile probe sheath.
Retaining clamp
V-shaped cover
Angle adjusting block
Angle pinch nut
Guiding hole
V-shaped guiding block
Lock pin
Needle type dial scale
Clamp pinch nut
Locating groove
Needle type adjusting
To Next Page
