Mitsubishi FX3U Series User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
130
8 Installation In Enclosure
8.3 Layout in Enclosure

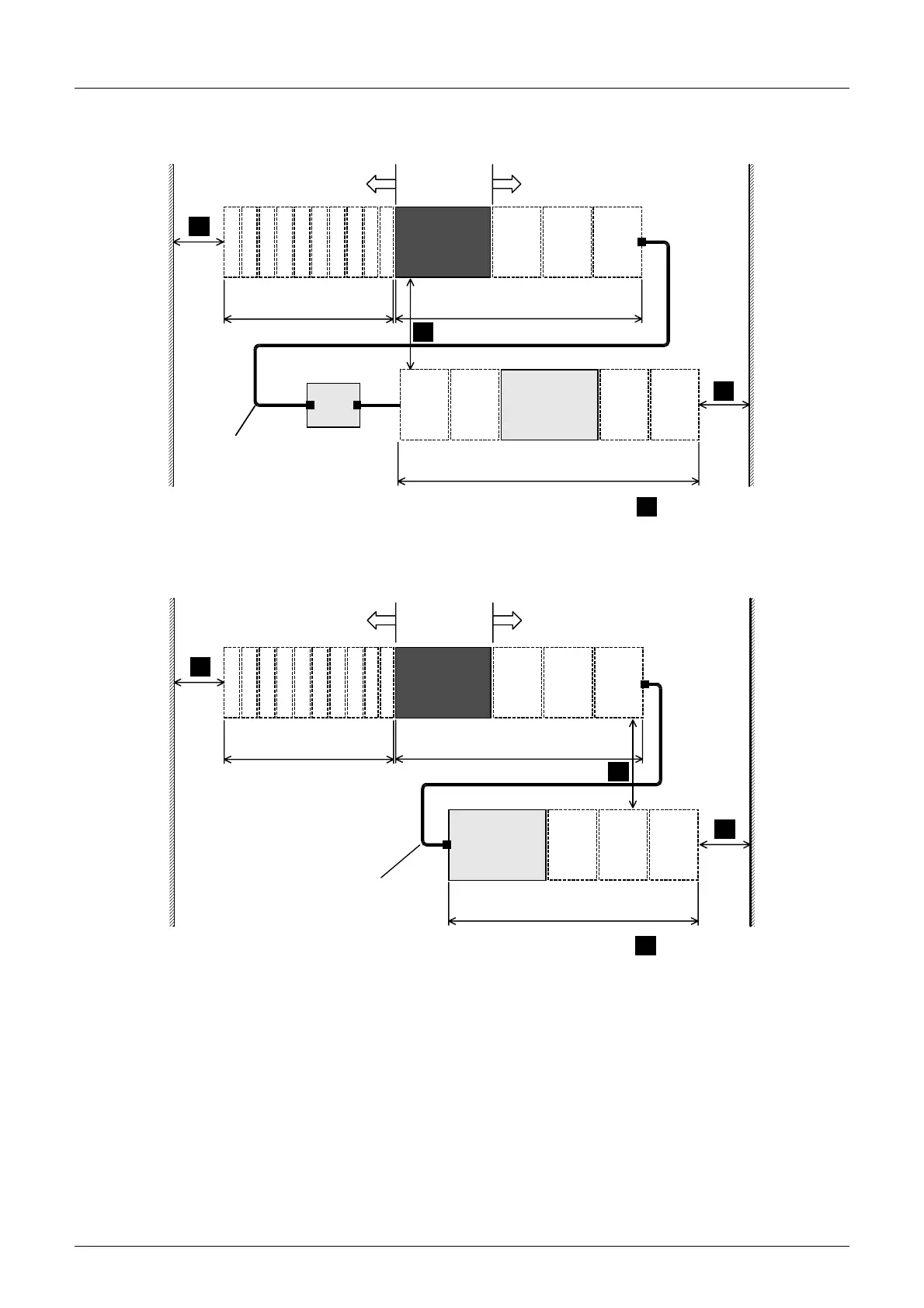

2. When an input/output extension block or a special function block is connected at the top of
the 2nd stage
3. When a special function block (FX
2N-10GM/20GM) is connected at the 2nd stage
→ Refer to the previous page for FX2N-1RM(-E)-SET information.
12345678
Up to 10 units (approx. 18mm
(0.71") x number of units)
910
Input/output powered extension
units/blocks
Special function units/blocks
FX 3U Series
main unit
For the dimensions of each product,
refer to the external dimensions diagram.
Special adapter
Extension
block
*1
Input/output
powered
extension units
For the dimensions of each product, refer to the
external dimensions diagram.
Extension cable
• FX 0N -65EC (650mm (25.59"))
• FX 0N -30EC (300mm (11.81"))
FX 2N -CNV-BC
Extension
block
Extension
block
Extension
block
Extension
block
Extension
block
Extension
block
A
≥ 50mm (1.97")
A
A
A
*1 Except FX 2N -8AD
Input/output powered extension
units/blocks
Special function units/blocks
FX3U Series
main unit
For the dimensions of each product, refer to the
external dimensions diagram.
Special adapter
FX 2N -10GM
FX
2N -20GM
Extension cable
• FX 2N -GM-65EC (650mm)
12345678
Up to 10 units (approx. 18mm
(0.71") x number of units)
910
Extension
block
Extension
block
Extension
block
Extension
block
Extension
block
Extension
block
A
A
A
For the dimensions of each product, refer
to the external dimensions diagram.
A
≥ 50mm (1.97")
