Mitsubishi FX3U Series User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
323
16 FX2N-8/16E*-*(Input/Output Extension Blocks)
16.13 FX2N-16EYS (Triac Output: 16 Points)
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

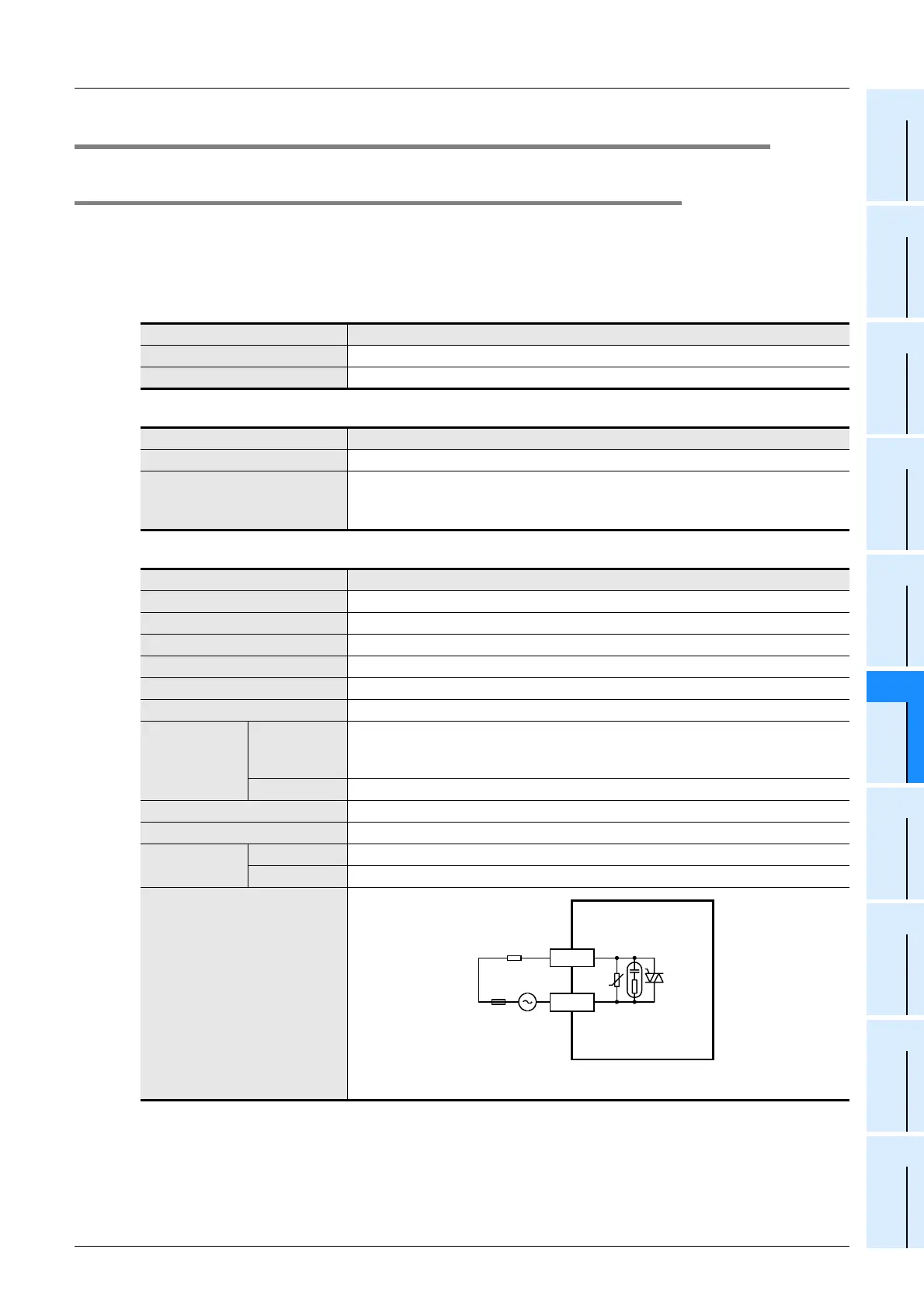

16.13 FX2N-16EYS (Triac Output: 16 Points)
16.13.1 Product specifications
The generic specifications are identical to the main unit specifications.
→ Refer to Section 4.1 for generic specifications.
For external wiring, refer to the following chapter.
→ Refer to Chapter 12 for output wiring.
1. Power supply specifications
2. Weight and Other specifications
3. Output specifications (Triac output type)
Item FX2N-16EYS
Product type FX2N extension block
Rated voltage 24V DC (supplied from main unit and input/output powered extension unit)
Item FX2N-16EYS
MASS (Weight) 0.3 kg (0.66lbs)
Other
• The extension cable is already connected to the extension block.
• Accessories: Label for indication of input/output number
• The DIN46277 rail (width: 35 mm (1.38")) or direct installation.
Item FX2N-16EYS
Output points 16 points
Connection unit Vertical terminal block (M3 screws)
Output unit Triac output (SSR)
External power supply 85 to 242V AC
Output circuit insulation method Photo-coupler insulation
Indication of output operation Activation of the photo-thyristor will light the LED indicator lamp on panel.
Maximum load
Resistance
load
0.3 A/point
The total load current per common should be as follows:
• 8 output points/common: 0.8A or less
Inductive load 15 VA/100V AC, 30 VA/200V AC
Open circuit leakage current 1 mA/100V AC, 2 mA/200V AC
Minimum load 0.4 VA/100V AC, 1.6 VA/200V AC
Response time
OFF→ON 1 ms or less
ON→OFF 10 ms or less
Output circuit diagram
A common number applies to the  of [COM  ].
U
Load
Fuse
Y
COM 
AC power
supply
