16 FX2N-8/16E*-*(Input/Output Extension Blocks)
16.10 FX2N-8EYR, FX2N-16EYR (Relay Output)

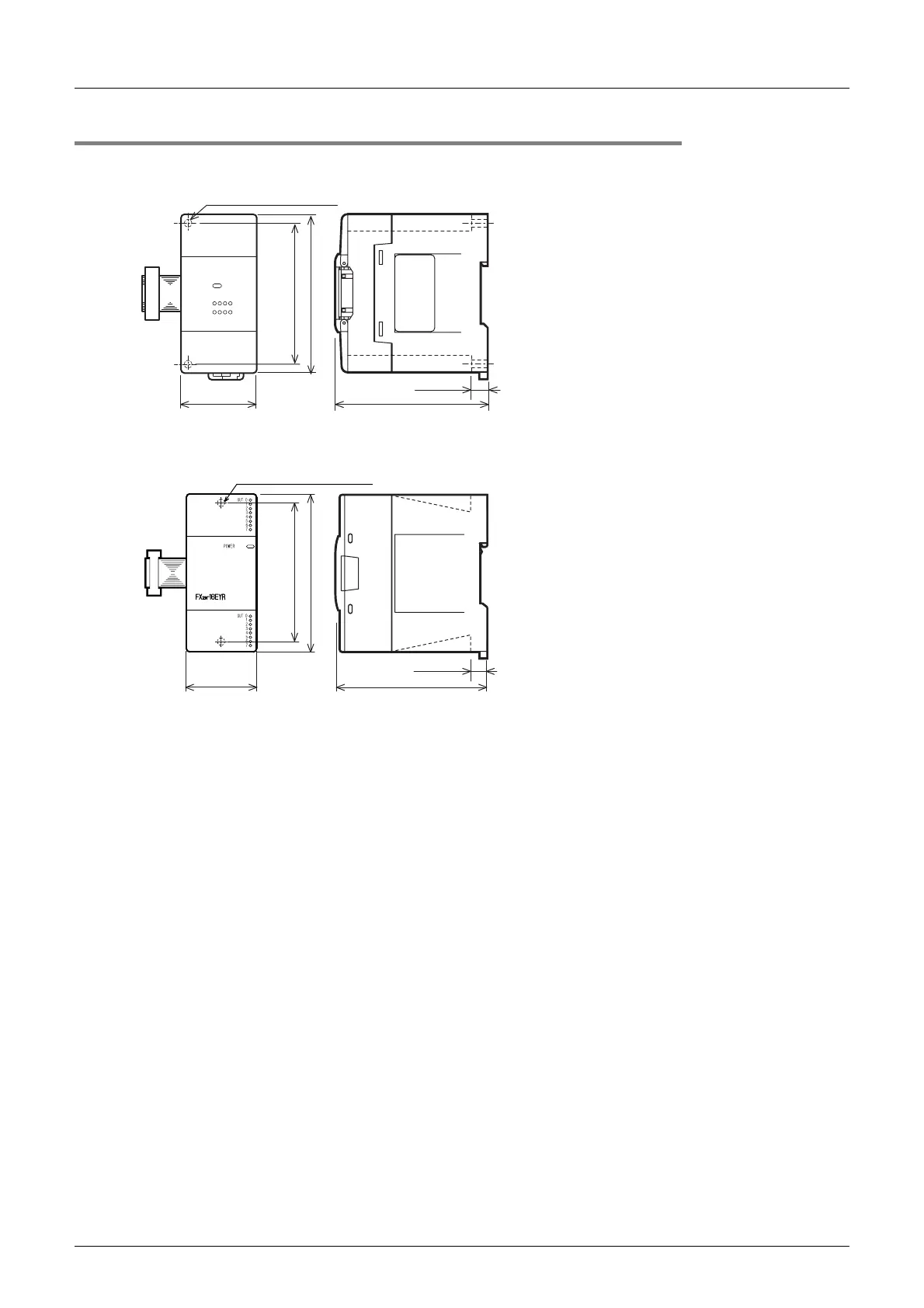

16.10.3 External dimensions
FX2N-8EYR
FX
2N-16EYR
FX2N-8EYR
POWER
0 1 23
7654
OUT
43(1.7")
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
2-φ4.5 mounting holes
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
40(1.58")
2-φ4.5 mounting holes
