Mitsubishi FX3U Series User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
347
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.7 Interface Module
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

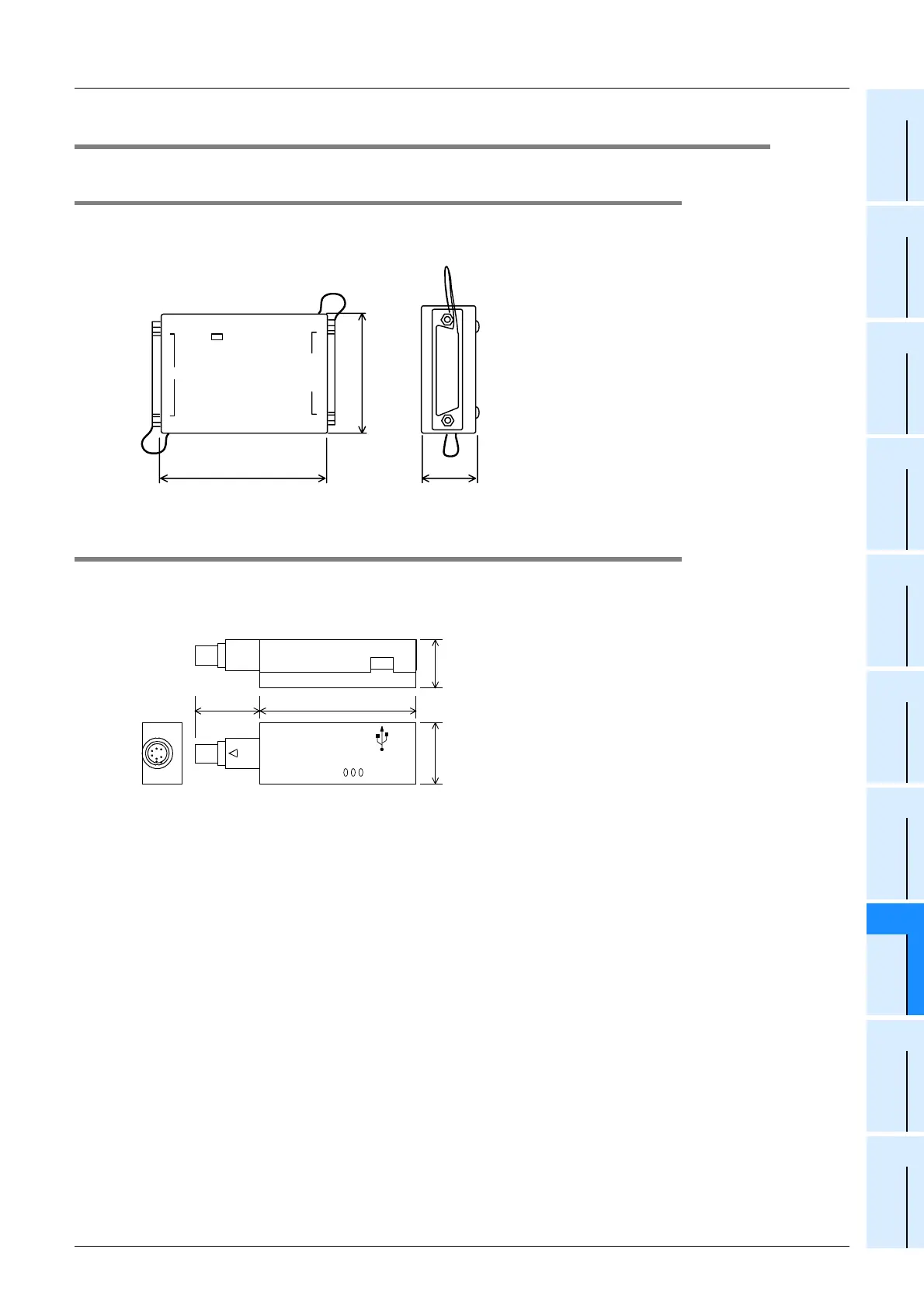

18.7 Interface Module
18.7.1 FX-232AWC-H
External Dimensions
•MASS(Weight): 0.1kg (0.22lbs)
•Accessories:
Manual supplied with product
•Connector: RS-232C
(D-SUB 25-pin, female)
RS-422
(D-SUB 25-pin, female)
18.7.2 FX-USB-AW
External Dimensions
•MASS(Weight): 20g (0.05lbs)
•Accessories: USB driver software
(CD-ROM),
USB cable (3m(9’10")),
Manual supplied with product
•Connector: RS-422
(MINI DIN 8-pin, male)
USB (MINI B connector,
female)
FX-232AWC-H
Unit:mm (inches)
25
(0.99")
80(3.15")
60(2.37")
CONPUTER
(RS232C)
POWER
MITSUBISHI
FX
(RS422)
Unit:mm (inches)
15
(0.6")
MITSUBISHI FX-USB-AW
PW SD RD
FX
(RS-422)
45(1.78")17(0.67")
21
(0.83")
