20 FX-16/32E*-*-TB (Terminal Block)
20.2 External Dimensions & Component Names
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

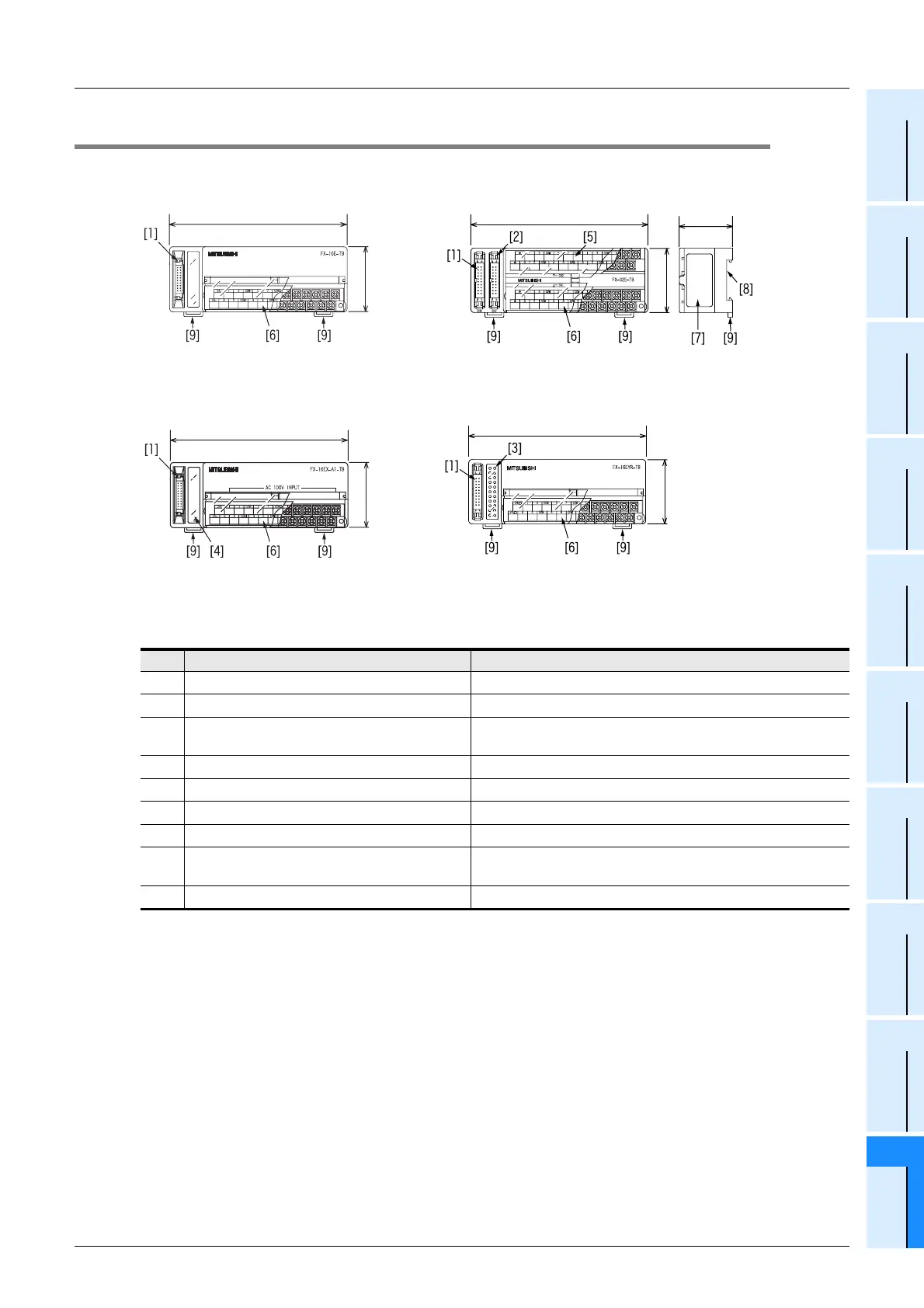

20.2 External Dimensions & Component Names
No. Name Remarks
[1]
CN1 connector −
[2]
CN2 connector Present at FX-32E-TB.
[3]
Operation indicator LED
Present at FX-16EYR-TB, FX-16EYS-TB, FX-16EYT-TB, FX-
16EYT-H-TB.
[4]
POWER LED Present at FX-16EX-A1-TB.
[5]
CN2 terminal block (M3.5 screws) Present at FX-32E-TB.
[6]
CN1 terminal block (M3.5 screws) −
[7]
Nameplate −
[8]
DIN rail mounting groove
(DIN rail width: 35mm(1.38"))
−
[9]
DIN rail mounting hook −
150(5.91")
55(2.17")
150(5.91") 45(1.78")
55(2.17")
150(5.91")
55(2.17")
150(5.91")
55(2.17")
FX-16E-TB
FX-16EX-A1-TB
FX-32E-TB
FX-16EYR-TB
FX-16EYS-TB
FX-16EYT-TB, FX-16EYT-H-TB
Units: mm (inches)
Accessories: Input/output No. labels, terminal block arrangement
cards
