FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
20 FX-16/32E*-*-TB (Terminal Block)
20.4 Installation Work
20.4 Installation Work
→ Refer to Section 8.2 for installation location.

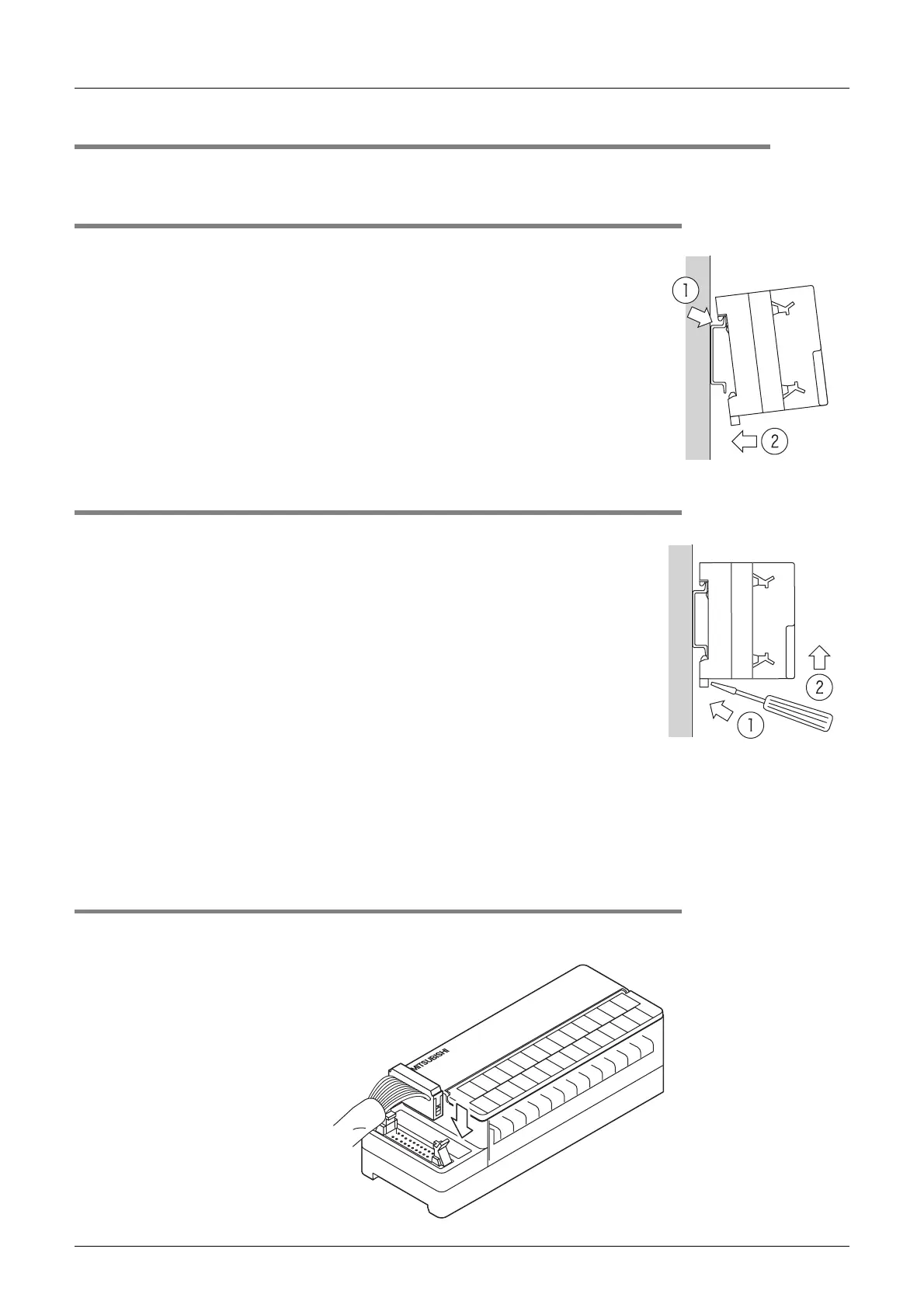

20.4.1 Mounting
1 Turn OFF all power supplies connected to the PLC,
input/output devices, and terminal blocks.
2 Align the top side of the "DIN rail mounting groove"
(refer to Fig.1 at right) with the DIN rail.
3 Press the product onto the DIN rail (refer to Fig.2 at
right).
20.4.2 Removal
1 Turn the power supply OFF.
2 Disconnect the wiring and input/output cables.
3 Place a flathead screwdriver against the DIN rail
mounting hook in the posture shown (refer to Fig.1 at
right)
4 Move the flathead screwdriver in direction shown at
right (refer to Fig.2) to detach the DIN rail mounting
hook from the DIN rail.
5 Remove the product from the DIN rail.
20.4.3 Input/output cable connection
The terminal block’s CN1 and CN2 connectors comply with the MIL-83503 standard.
→ Refer to Subsection 9.2.2 for input/output cable information.
Input/output cable
Terminal block
