FX3U Series Programmable Controllers

User’s Manual - Hardware Edition

217

12 Output Wiring Procedures

12.3 External Wiring of Transistor Output (Sink/Source) Type

High-Speed

Counters

Output Wiring

Wiring for

Various Uses

Test Run,

Maintenance,

Troubleshooting

IInput/Output

Powered

Extension Units

Input/Output

Extension

Blocks

Extension

Power Supply

Unit

Other Extension

Units and

Options

Display Module

Terminal Block

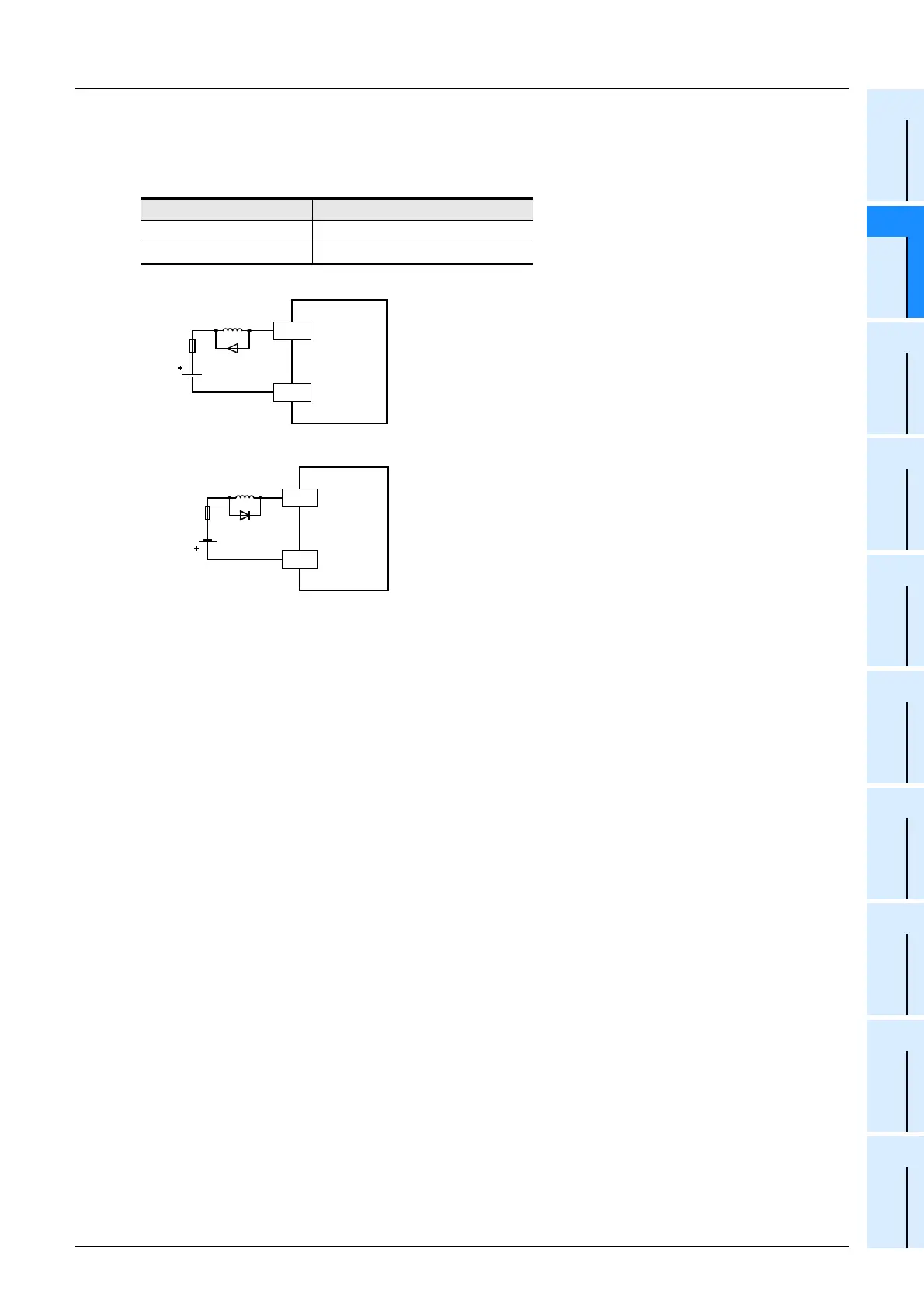

3. Contact protection circuit for inductive loads

When an inductive load is connected, connect a diode (for commutation) in parallel with the load as

necessary.

The diode (for commutation) must comply with the following specifications.

• External Wiring of Sink Output Type

• External Wiring of Source Output Type

Item Guide

Reverse voltage 5 to 10 times of the load voltage

Forward current Load current or more

PLC

COM1

Inductive

load

Fuse

PLC

+V0

Inductive

load

Fuse
