FX3U Series Programmable Controllers

User’s Manual - Hardware Edition

232

13 Examples of Wiring for Various Uses

13.4 Hexadecimal Input [HKY Instructions (FNC71)]

3. Input/output powered extension unit

Example of program

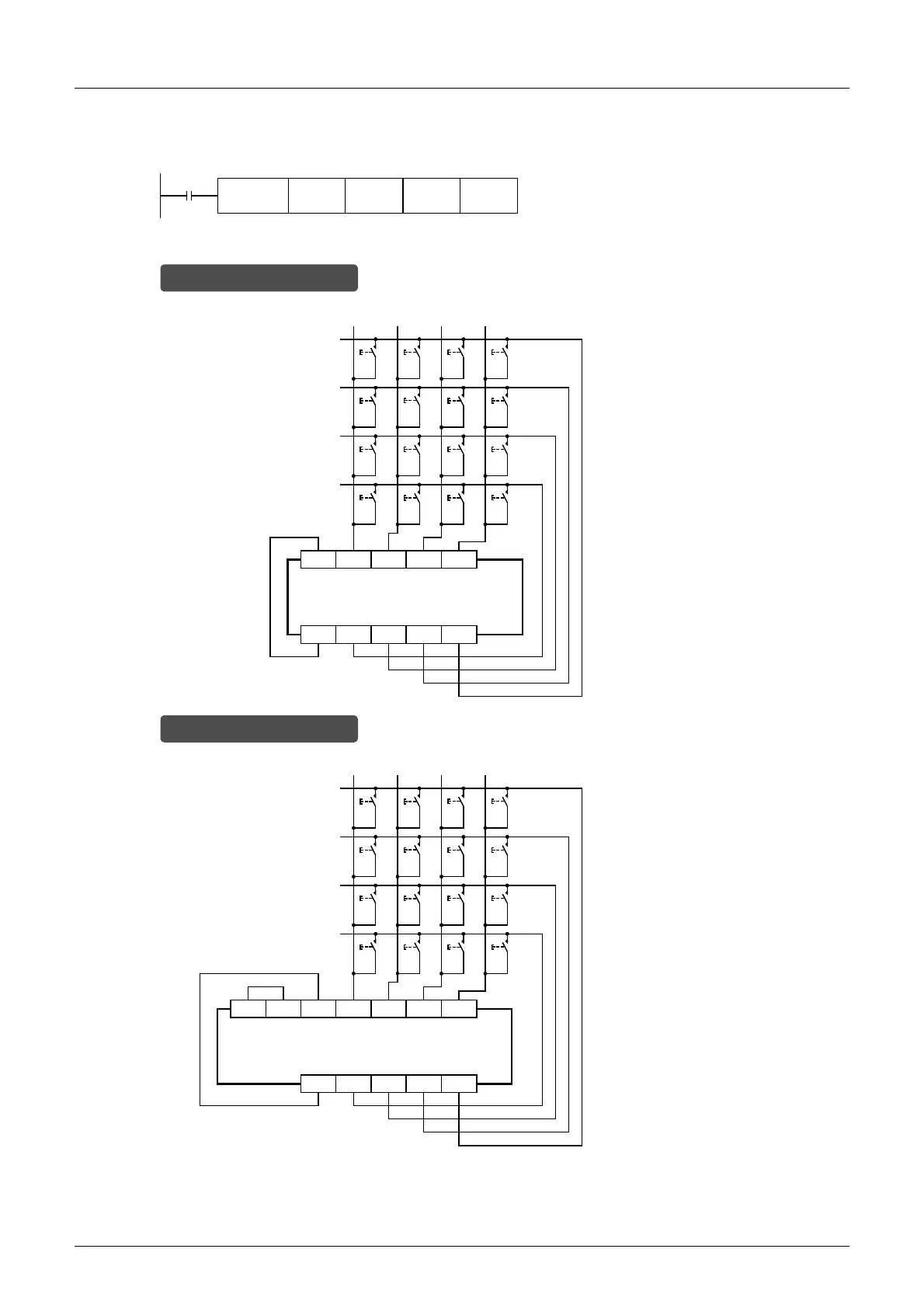

Examples of wiring

M8000

X060 Y050 D100 M0HKY

When a sink input type unit is used

COM X060 X061 X062 X063

COM1

Y050 Y051 Y052 Y053

0 1 23

4567

89AB

C DEF

External wiring

Transistor output (sink)

Input/output powered

extension unit

In the case of sink wiring

-32ET

-48ET

When a source input type unit is used

24V X060 X061 X062 X063

+V0 Y050 Y051 Y052 Y053

0 1 23

4567

89AB

C DEF

External wiring

Transistor output (source)

0VS/S

In the case of source wiring

Input/output powered

extension unit

-32ET-ESS/UL

-48ET-ESS/UL
