Mitsubishi FX3U Series User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
389
19 FX3U-7DM (Display Module)
19.19 User (User-Registered Device Setting)
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

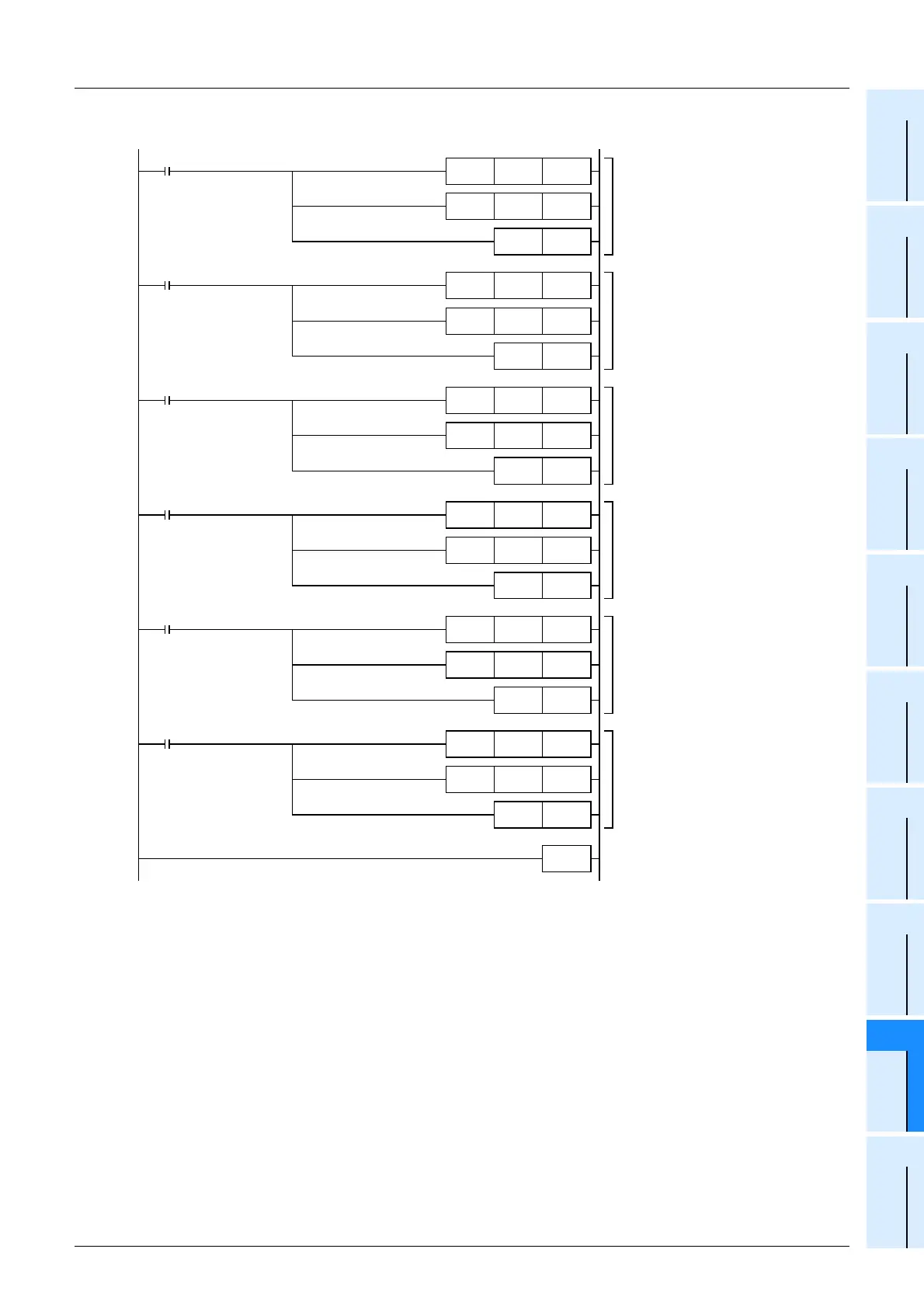

Continued from previous page
MOV K7 D50
MOV K102 D51
M61
RST M55
At user-registered device screen
scrolling (by [+] and [-] buttons), sets
the 2nd displayed device as a "D102"
16-bit device, with a decimal current
value display format.
MOV K7 D50
MOV K103 D51
M62
RST M55
At user-registered device screen
scrolling (by [+] and [-] buttons), sets
the 3rd displayed device as a "D103"
16-bit device, with a decimal current
value display format.
MOV K7 D50
MOV K104 D51
M63
RST M55
At user-registered device screen
scrolling (by [+] and [-] buttons), sets
the 4th displayed device as a "D104"
16-bit device, with a decimal current
value display format.
MOV K7 D50
MOV K200 D51
M64
SET M55
At user-registered device screen
scrolling (by [+] and [-] buttons), sets
the 5th displayed device as a "D200"
16-bit device, with a hexadecimal
current value display format.
MOV K7 D50
MOV K210 D51
M65
RST M55
At user-registered device screen
scrolling (by [+] and [-] buttons), sets
the 6th displayed device as a "D210"
16-bit device, with a decimal current
value display format.
MOV K7 D50
MOV K201 D51
M66
SET M55
At user-registered device screen
scrolling (by [+] and [-] buttons), sets
the 7th displayed device as a "D201"
16-bit device, with a hexadecimal
current value display format.
END

Mitsubishi FX3U Series Specifications

General

Model	FX3U Series
Program Memory	64k steps
Execution Speed	0.065 μs/basic instruction
Type	PLC (Programmable Logic Controller)
Power Supply	100-240V AC
I/O Points	Up to 384
Communication	USB
Expansion	Supported via expansion modules
High-Speed Counters	Up to 6 channels
Analog Input/Output	Available via expansion modules
Temperature Range	0 to 55°C
Programming Language	Ladder Logic, Structured Text
Built-in Functions	PID control
Humidity	5 to 95% (non-condensing)
