Mitsubishi FX3U Series User Manual

400
FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
19 FX3U-7DM (Display Module)
19.23 User Message Display Function
Continued from previous page

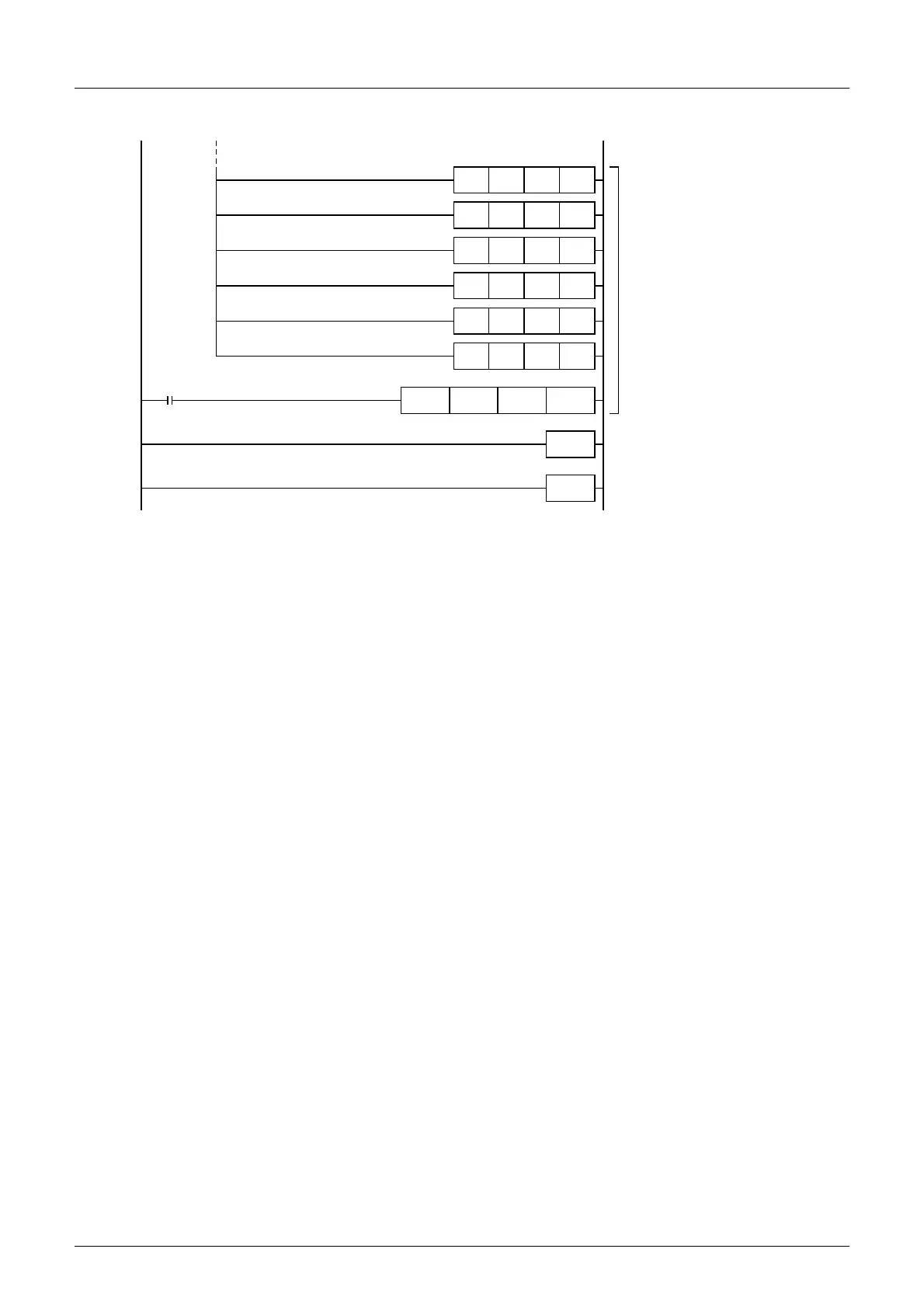

H100 D120D111MUL
D110 D130D120ADD
H100 D121D113MUL
D112 D131D121ADD
H100 D122D115MUL
D114 D132D122ADD
RUN monitor
M8000
D130 D140Z1 K3BMOV
SRET
END
Program comprising 6 characters
(with space added).
• Target → D140 to D142
• Production → D150 to D152
• Remaining → D160 to D162

Mitsubishi FX3U Series Specifications

General

Model	FX3U Series
Program Memory	64k steps
Execution Speed	0.065 μs/basic instruction
Type	PLC (Programmable Logic Controller)
Power Supply	100-240V AC
I/O Points	Up to 384
Communication	USB
Expansion	Supported via expansion modules
High-Speed Counters	Up to 6 channels
Analog Input/Output	Available via expansion modules
Temperature Range	0 to 55°C
Programming Language	Ladder Logic, Structured Text
Built-in Functions	PID control
Humidity	5 to 95% (non-condensing)
