6 - 6

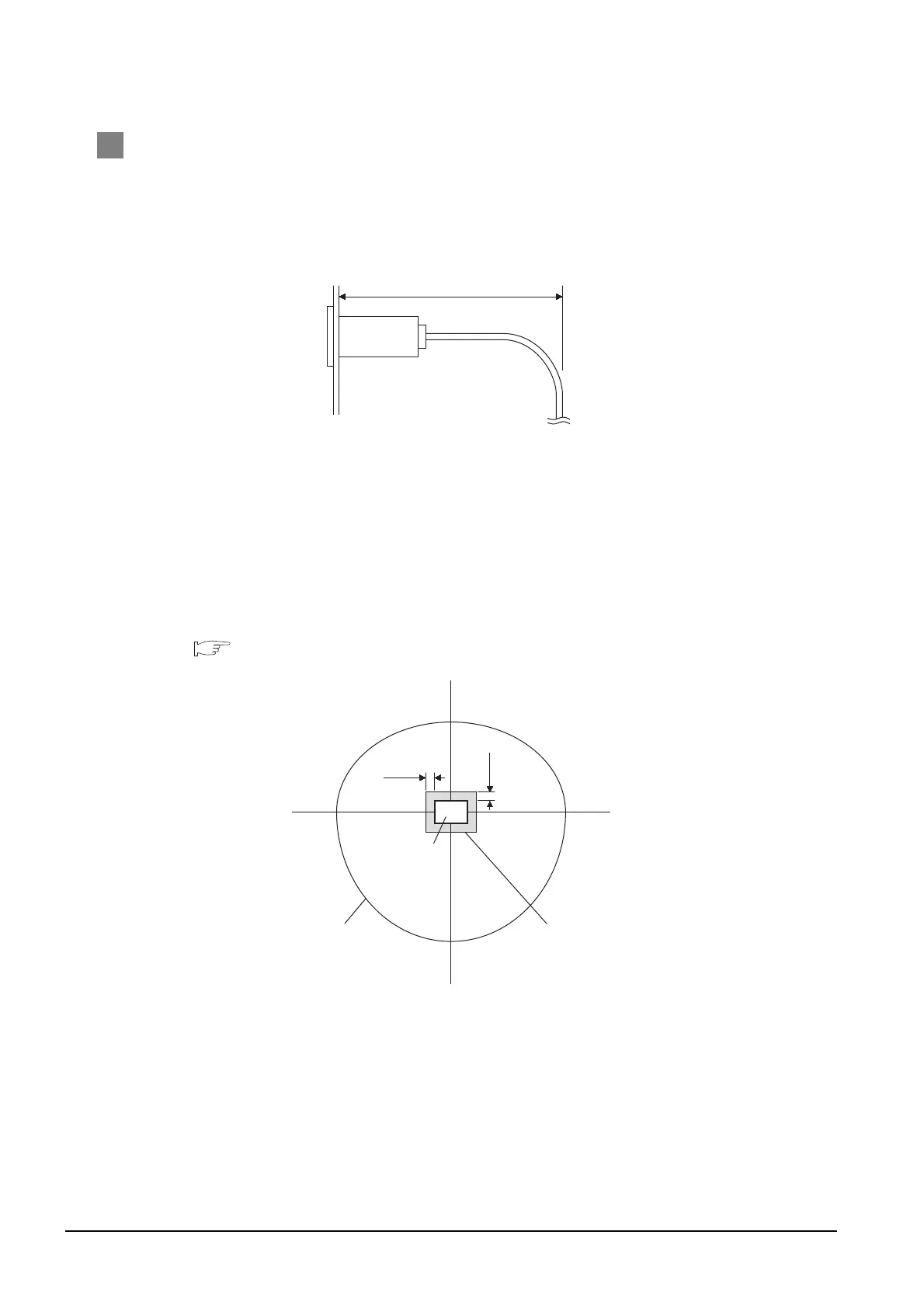

6.3 Mounting Position
2 For installing CF card extension unit
(1) Installing location
(a) Depth dimensions
When the control panel side installation unit is installed on the control panel, 180mm in depth
(including the bending radius of the cable) is required inside the control panel.
(b) Available area for installation
When the control panel side installation unit is installed on the control panel, a distance of
25mm is required around the unit.
Keep a distance of 25mm or more between the control panel side installation unit and the GOT.
The control panel side installation unit can be installed in the area shown in the following
figure.
For the installation, do not give stresses, including an incorrect bending radius of the cable, on
the connection cable.
Appendix 1 External Dimensions
180 or more
Unit : mm(inch)
(7.09)
500 or less
Available area
for installation
25 or more
25 or more
Prohibited area
for installation
Unit : mm(inch)
500 or less
400 or less
600 or less
GOT
(19.69)(19.69)
(0.98)
(0.98)
(23.62)
(15.75)
