Mitsubishi GOT1000 GT15 User Manual

13.3 Project Information
13.3.4 Operation of project information
13 - 25
9
UTILITY FUNCTION
10
COMMUNICATION INTERFACE SETTING
11
DISPLAY AND OPERATION SETTINGS
12
CLOCK SETTINGS AND BATTERY STATUS DISPLAY
13
FILE DISPLAY AND COPY
14
GOT SELF CHECK
15
CLEANING OF DISPLAY SECTION
16
MAINTENANCE TIME NOTIFICATION SETTING

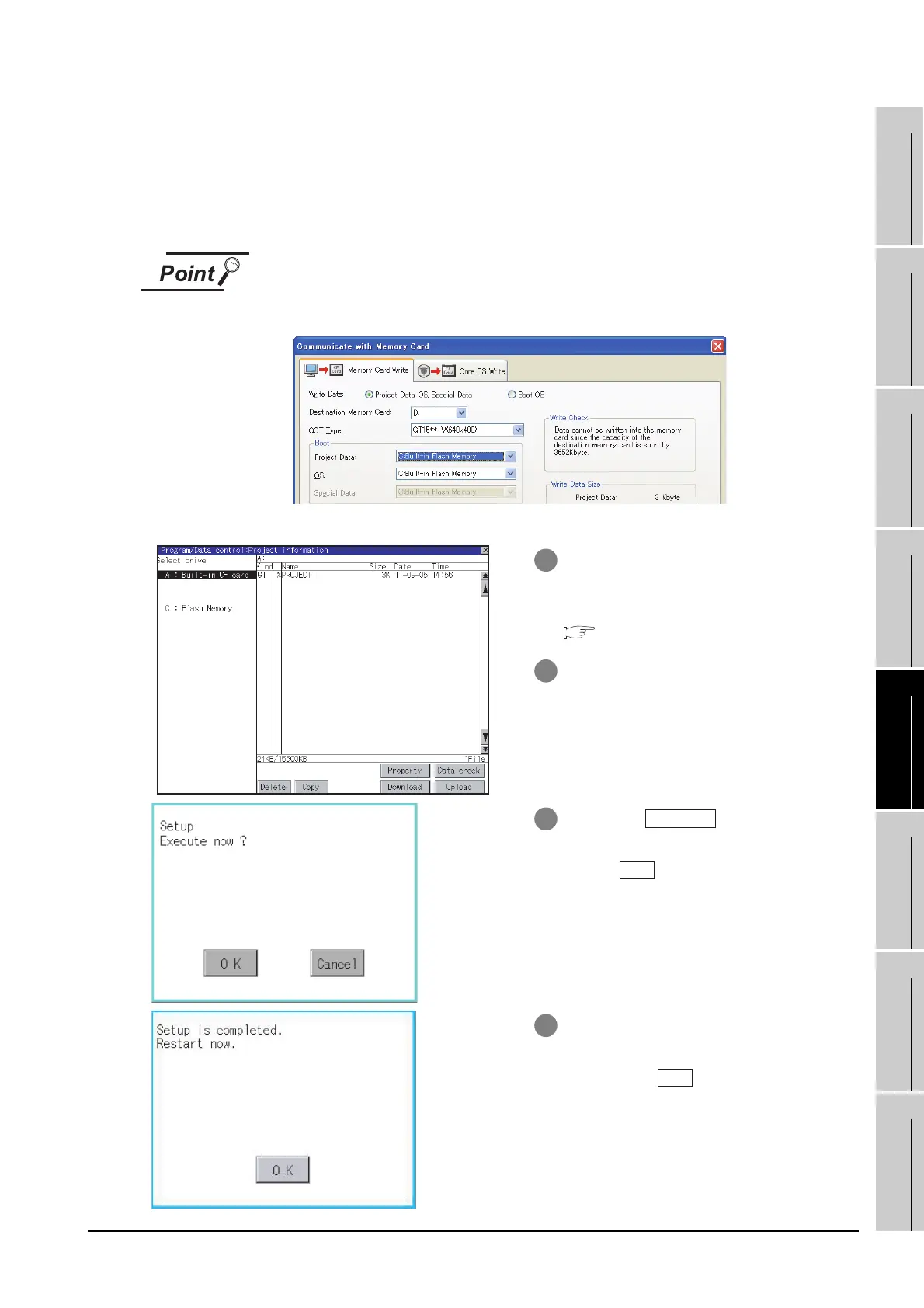

(2) Setup operation
Sets the project data stored in the A drive (Standard CF Card) or B drive (Extended memory card)
to be used in the GOT.
The GOT monitors using the data in the A drive or B drive.
(This item explains using the A drive.)
Before setup operation
When storing project data from GT Designer3 or GT Designer2 to CF card, select
[A: Standard CF Card] for [Project Data] in [Boot Drive].
1 Install a CF card in the GOT.
For how to install a CF card, refer to the
following.
8.8 CF Card
2 Touch [A: Standard CF Card] in Select
drive.
3 If touch the button, the dialog
mentioned left is displayed.
If touch button, the setup is
executed.
4 When the setup is completed, the dialog
mentioned left is displayed.
Touching the button restarts the
GOT.
Download
OK
OK

Mitsubishi GOT1000 GT15 Specifications

General

Display Size	10.4 inches
Display Type	TFT Color LCD
Resolution	640 x 480 pixels
Touch Panel Type	Analog resistive film
Power Supply	24V DC
Backlight	LED
Protection Rating	IP65 (front panel)
Interface	RS-232, RS-422/485, USB
Operating Temperature	0°C to 50°C
Memory	9 MB
Storage Temperature	-20 to 60°C
Display Colors	256 colors
