13 - 34
13.4 Alarm Information
13.4.4 Alarm information operation
5 Graph operation
Displays the selected extended alarm log file in a graph.
When the extended alarm watch (advanced user alarm, advanced system alarm) is set in history mode,
the selected extended alarm log file is displayed in historical graph ( (1) Historical graph display).
When set in accumulation mode, displayed it in tally graph ( (2) Tally graph display).
Refer to the following for details related to setting of the extended alarm watch.
• GT Designer3 Version1 Screen Design Manual (Functions) (10 ALARM)
• GT Designer2 Version Screen Design Manual (8 ALARM)

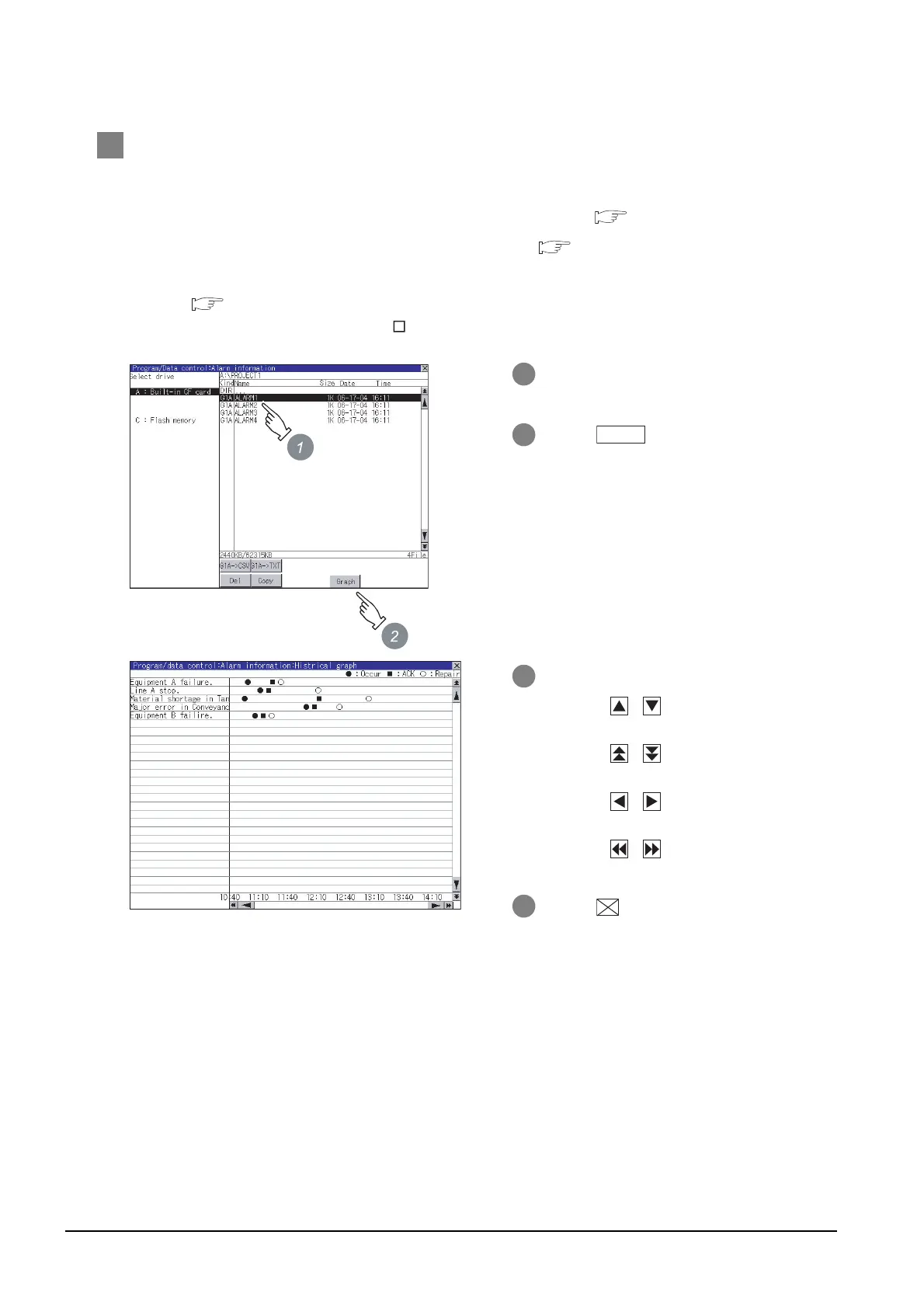

1 Touch and select the G1A file to display in
a graph.
2 If touch button, displays the
historical graph or tally graph according to
the setting of the extended alarm watch.
3 When move a graph, operate as follows.
• If touch / button, moves the
graph up/down line by line.
• If touch / button, moves the
graph up/down by one screen.
• If touch / button, moves the
graph to left/right by one column.
• If touch / button, moves the
graph to left/right by one screen.
4 If touch button, closes the graph.
(Example: Historical graph)
To Next Page
