Mitsubishi GOT1000 GT15 User Manual

App - 12
Appendix 1 External Dimensions

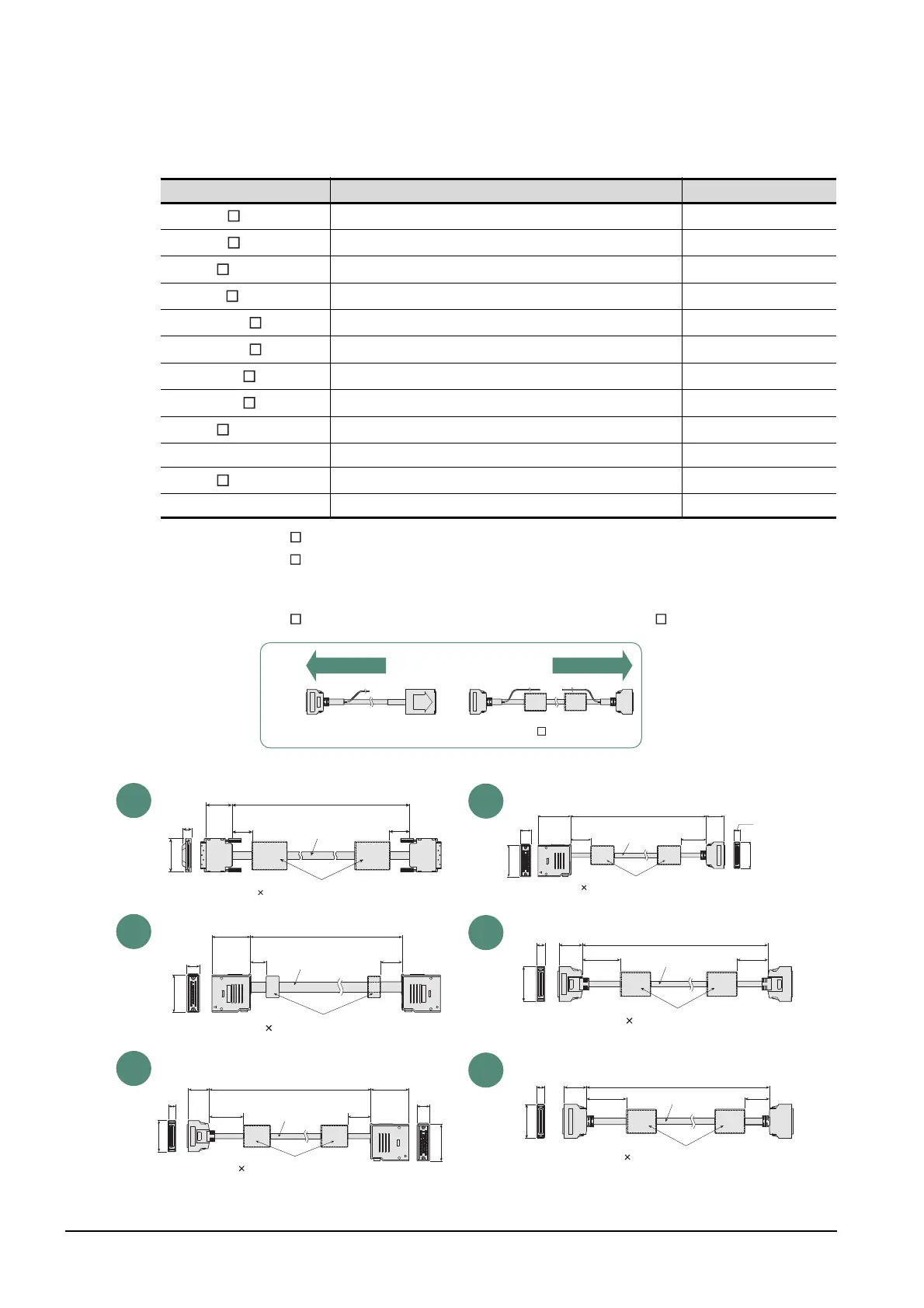

(8) External dimensions of the communication cable
(a) External dimensions of the bus connection cable connector
*1: The GT15-C EXSS cable has a grounding wire (1 m).
The GT15-C BS cable has a grounding wire (For the cable length of 10m or more: 1m, for the cable length less
than 10m: 0.5m).
Be sure to connect the wire to control panels.
*2: The GT15-C EXSS-1 is the set product consisting of (GT15-EXCNB+GT15-C BS). (Refer to Fig. A)
Unit:mm(inch)
Cable model Cable length (m(ft.)) External dimensions
GT15-QC B
0.6(2.0),1.2(3.9),3(10),5(16),10(33) Fig. 1
GT15-QC BS
15(49),20(66),25(82),30(98),35(115) Fig. 1
GT15-C NB
1.2(3.9),3(10),5(16) Fig. 2
GT15-AC B
0.6(2.0),1.2(3.9),3(10),5(16) Fig. 3
GT15-A370C B-S1
1.2(3.9),2.5(8.2) Fig. 4
GT15-A370C B
1.2(3.9),2.5(8.2) Fig. 5
GT15-A1SC B
0.7(2.3),1.2(3.9),3(10),5(16) Fig. 6
GT15-A1SC NB
0.45(1.5),0.7(2.3),3(10),5(16) Fig. 7
GT15-C EXSS-1
10.6(34.8),20.6(67.6),30.6(100) Figs. 8 & 9
GT15-EXCNB 0.5(1.6) Fig.8
GT15-C BS
0.7(2.3),1.2(3.9),3(10),5(16),10(33),20(66),30(98) Fig. 9
GT15-J2C10B 1(3) Fig. 10
Fig. A
GT15-EXCNB (Fig. 8) GT15-C BS (Fig. 9)
PLC side
GOT side
+
GOT side CON 2
CON 1
145
(5.71)
L
95
(3.74)
10(0.39)
42(1.65)
34.5
(1.36)
Cable approx. Φ10(0.39)
Fig.1
Ferrite core, approx. Φ35(1.38)
40(1.57),red holder tube
20
(0.79)
60
(2.36)
58(2.28)
70
(2.76)
50
(1.97)
32
(1.26)
11.5
(0.45)
49 (1.93)
L
Fig.2
Cable approx.
Φ 8.0(0.31)
Ferrite core, approx. Φ35(1.38)
40(1.57),green holder tube
PLC side
GOT side
20
(0.79)
60
(2.36)
50
(1.97)
70
(2.76)
58(2.28)
Fig.3
L
Cable approx.
Φ17.0(0.67)
Ferrite core, approx. Φ32(1.26)
16(0.63),green holder tube
11.5
(0.45)
32
(1.26)
110
(4.33)
49(1.93)
L
50
(1.97)
Cable approx.
Φ8.0(0.31)
Ferrite core, approx. Φ35(1.38)
40(1.57),green holder tube
Fig.4
L
60
(2.36)
20
(0.79)
58 (2.28)
Fig.5
11.5
(0.45)
32
(1.26)
110
(4.33)
49(1.93)
50
(1.97)
Ferrite core, approx. Φ35(1.38)
40(1.57),green holder tube
Motion controller
side A7GT-CNB side
Cable approx.
Φ8.0(0.31)
160
(6.30)
L
110
(4.33)
Fig.6
11.5
(0.45)
33
(1.30)
49(1.93)
Ferrite core, approx. Φ35(1.38)
40(1.57),green holder tube
Cable approx.
Φ8.0(0.31)

Mitsubishi GOT1000 GT15 Specifications

General

Display Size	10.4 inches
Display Type	TFT Color LCD
Resolution	640 x 480 pixels
Touch Panel Type	Analog resistive film
Power Supply	24V DC
Backlight	LED
Protection Rating	IP65 (front panel)
Interface	RS-232, RS-422/485, USB
Operating Temperature	0°C to 50°C
Memory	9 MB
Storage Temperature	-20 to 60°C
Display Colors	256 colors
