Appendix 1 External Dimensions
App - 13
17
ADDITION TIMES RESET FOR MAINTENANCE TIME NOTIFICATION
18
INSTALLATION OF COREOS, BOOTOS AND STANDARD MONITOR OS
19
MAINTENANCE AND INSPECTION
20
TROUBLESHOOTING
APPENDICESINDEX

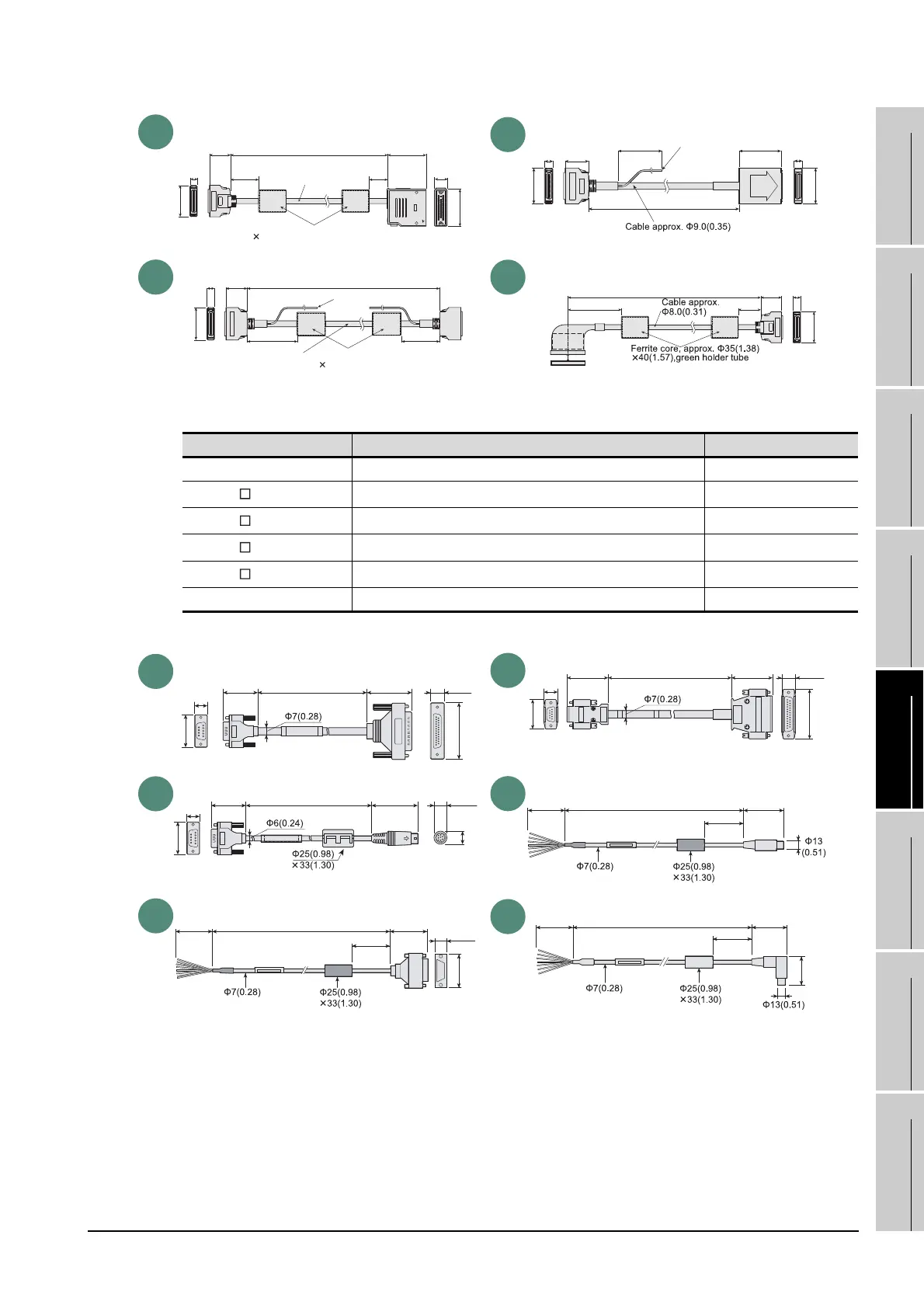

(b) External dimensions of RS-422 connection cable connector
Unit:mm(inch)
Cable model Cable length (m(ft.)) External dimensions
GT01-C30R4-25P 3(10) Fig. 11
GT01-C R4-25P
10(33),20(66),30(98) Fig. 12
GT01-C R4-8P
1(3),3(10),10(33),20(66),30(98) Fig. 13
GT10-C R4-8P
1(3),3(10),10(33),20(66),30(98) Fig. 14
GT10-C R4-25P
3(10),10(33),20(66),30(98) Fig. 15
GT10-C10R4-8PL 1(3) Fig. 16
50
(1.97)
Fig.7
PLC side
A7GT-CNB side
L
110
(4.33)
11.5
(0.45)
32
(1.26)
49(1.93)
20
(0.79)
60
(2.36)
58 (2.28)
Ferrite core, approx. Φ35(1.38)
40(1.57),green holder tube
Cable approx.
Φ8.0(0.31)
1000
(39.37)
500
(19.69)
75
(2.95)
20.5
(0.81)
Fig.8
FG cable
PLC side
GOT side
60 (2.36)
11.5
(0.45)
32
(1.26)
49(1.93)
GOT side CON 2
CON 1
50(1.97)
33
(1.30)
L
110
(4.33)
160
(6.30)
FG cable
Ferrite core, approx. Φ35(1.38)
40(1.57),blue holder tube
Cable approx.
Φ9.0(0.35)
Fig.9
11.5
(0.45)
1000
(39.37)
70
(2.76)
100
(3.94)
A0J2-PW side
GOT side
49 (1.93)
11.5
(0.45)
32
(1.26)
Fig.10
50
(1.97)
16
(0.63)
35(1.38)
53
(2.09)
55(2.17)
3000
(118.11)
16
(0.63)
Fig.11
L
50
(1.97)
16
(0.63)
35(1.38)
53
(2.09)
55(2.17)
16
(0.63)
Fig.12
40
(1.57)
13
(0.51)
13
(0.51)
L
50
(1.97)
16
(0.63)
35(1.38)
Fig.13
30
(1.18)
L 40
(1.57)
250
(9.84)
Fig.14
53
(2.09)
55
(2.17)
16
(0.63)
30
(1.18)
L
250
(9.84)
Fig.15
1000
(39.37)
38
(1.50)
30
(1.18)
30
(1.18)
250
(9.84)
Fig.16
