Exchanging Hardware
134 0112-0109 H
3. Ensure the Blue O-Ring on the washer base remains properly
seated. If not reinstall the o-ring into its o-ring groove.
4. Store the reservoir top in a safe location.

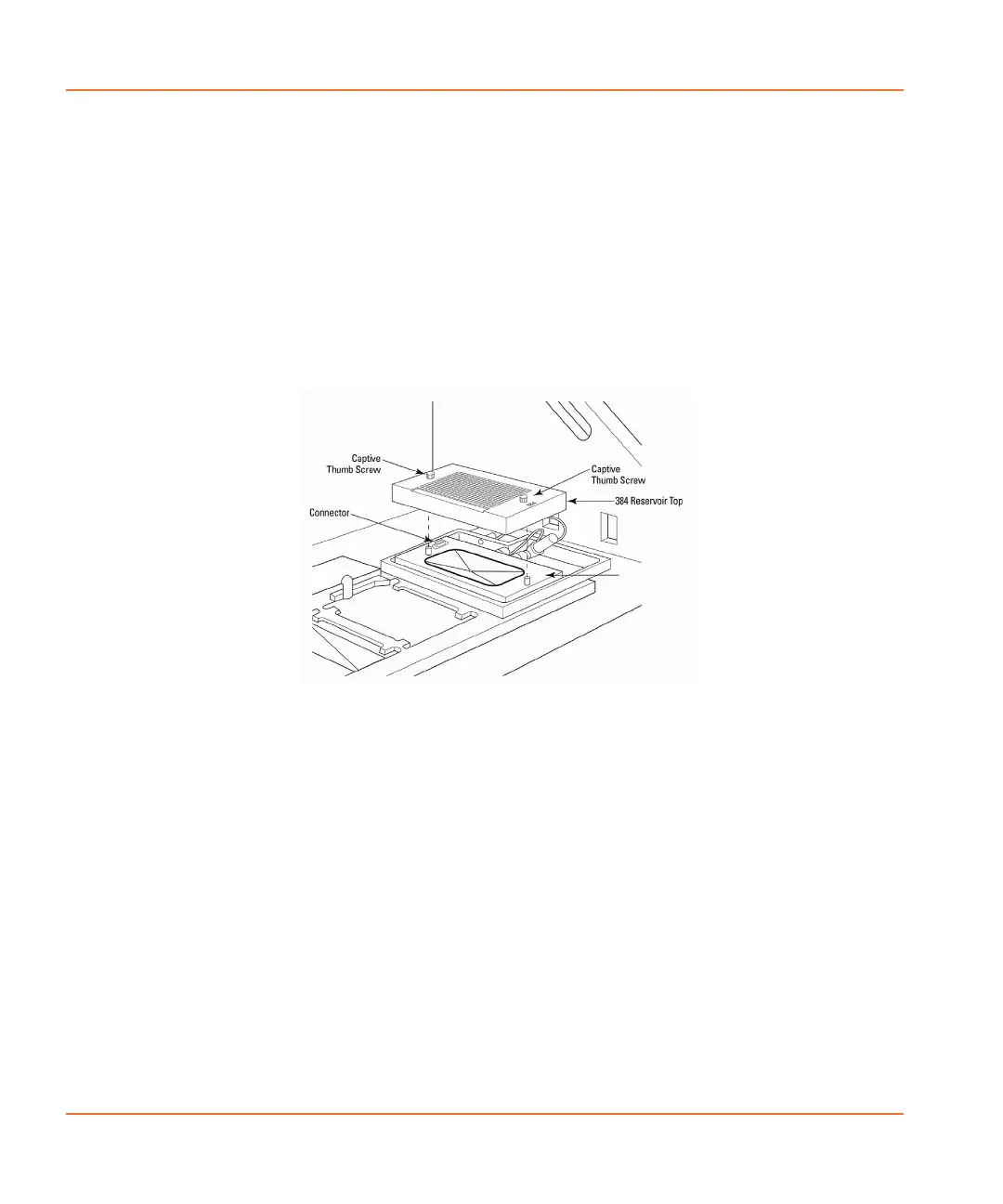

Installing Wash Reservoir Top
The following procedure installs a 384 wash reservoir top as an
example.
1. Align the appropriate format reservoir top so the Connector
matches the washer base connector. When aligned correctly, the
reservoir top name (96, 384 or 1536) is located towards the
front of the instrument.
2. Once aligned, press the top into position, using the Alignment
Pins to guide the placement of the top.
3. Tighten both Captive Thumb Screws to ensure the reservoir
top is fastened to the base.
4. Go to the following procedure to reset the instrument.
Resetting FLIPR Tetra System after Changing
Pipettor Heads
To reset the FLIPR
®
Tetra System:
1. Make sure the pipettor head and tip wash reservoir top formats
match before proceeding. If they do not match, the instrument
will fault and not let you run any experiments.
2. Once the change is complete, click DONE in the dialog box that
is present in the ScreenWorks Software. The instrument will
reset itself.
