FLIPR
®
Tetra High Throughput Cellular Screening System User Guide
0112-0109 H 227

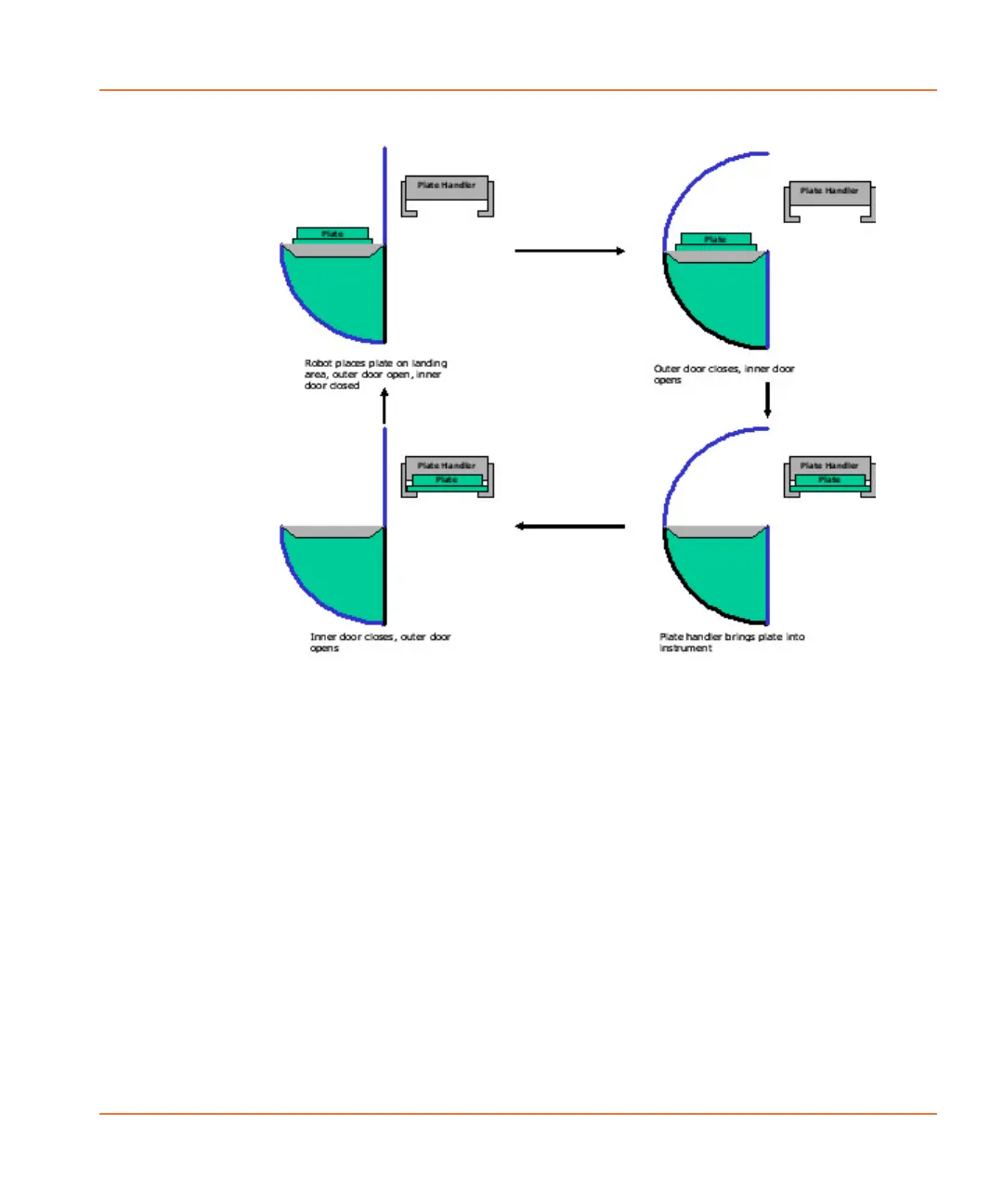

A reverse process is used when unloading plates in remote mode.
Optics Access Door
The plate reader’s optics are mounted to the plate stage directly below
the read plate position. A door is provided to the optics compartment
for users to change emission filters and LED modules. This door is also
latched when an assay is in progress to prevent users from interrupting
assays or injuring themselves.
Washer placement
A tip/pin washer is included with the system and is placed on the lower
right side of the instrument, towards the front. Extensive work has
been done to isolate plumbing for the washer from other optical or
power components. Access for tubing to the washer is required in any
installation.
