FLIPR
®
Tetra High Throughput Cellular Screening System User Guide
0112-0109 H 141
self-aligning, but observe engagement of the two Power
Connectors and confirm they are aligned before applying
mating pressure.
5. Once the connectors are mated, engage and tighten the two
Latching Clamps that secure each module to the Light Pipe.

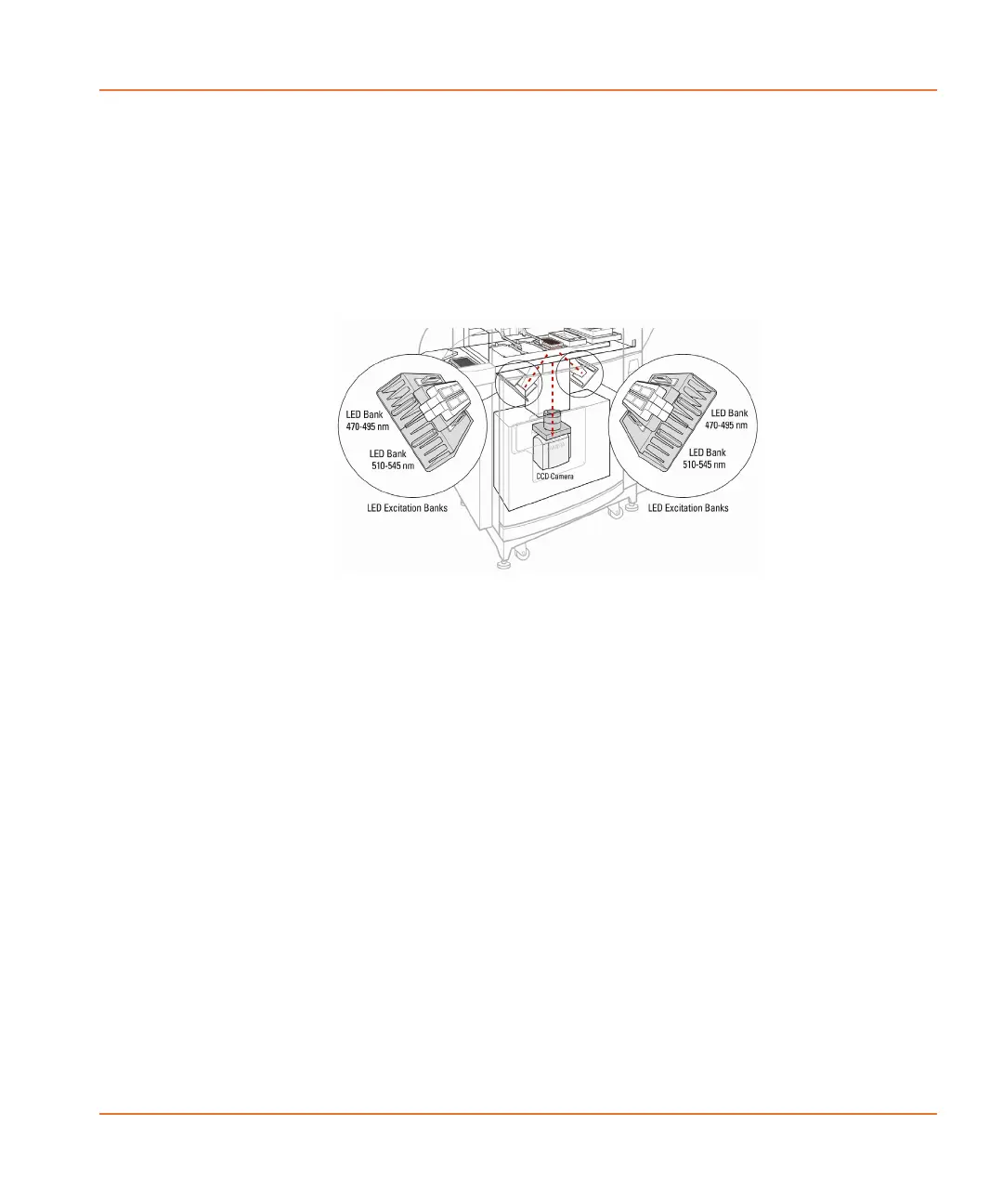

6. Repeat the above procedure for the right Excitation Optics
Module, being sure the same wavelength banks occupy the
corresponding position (upper/lower) on each side.
7. If also changing filters, continue to Changing Filters on
page 141, if you are done select Change Optics from
Instrument/Manual Operation menu and click OK. This will
reset the instrument.
8. Following the reset, an optics calibration will be necessary. See
section 6.1.2.
Changing Filters
Filters are mechanically sensed and the filter configuration can be
viewed in the instrument configuration window of the FLIPR
®
Tetra
System software.
To uninstall and then install the desired filter, follow the procedure
below.
If the desired filter is not available, three custom filter holders are
available for purchase to place filters by an outside vendor. See
Appendix C: Consumables and Accessories on page 283 for purchasing
information. Once installed, these filters appear as 1_1, 2_2, and 3_3
in the software protocol.
