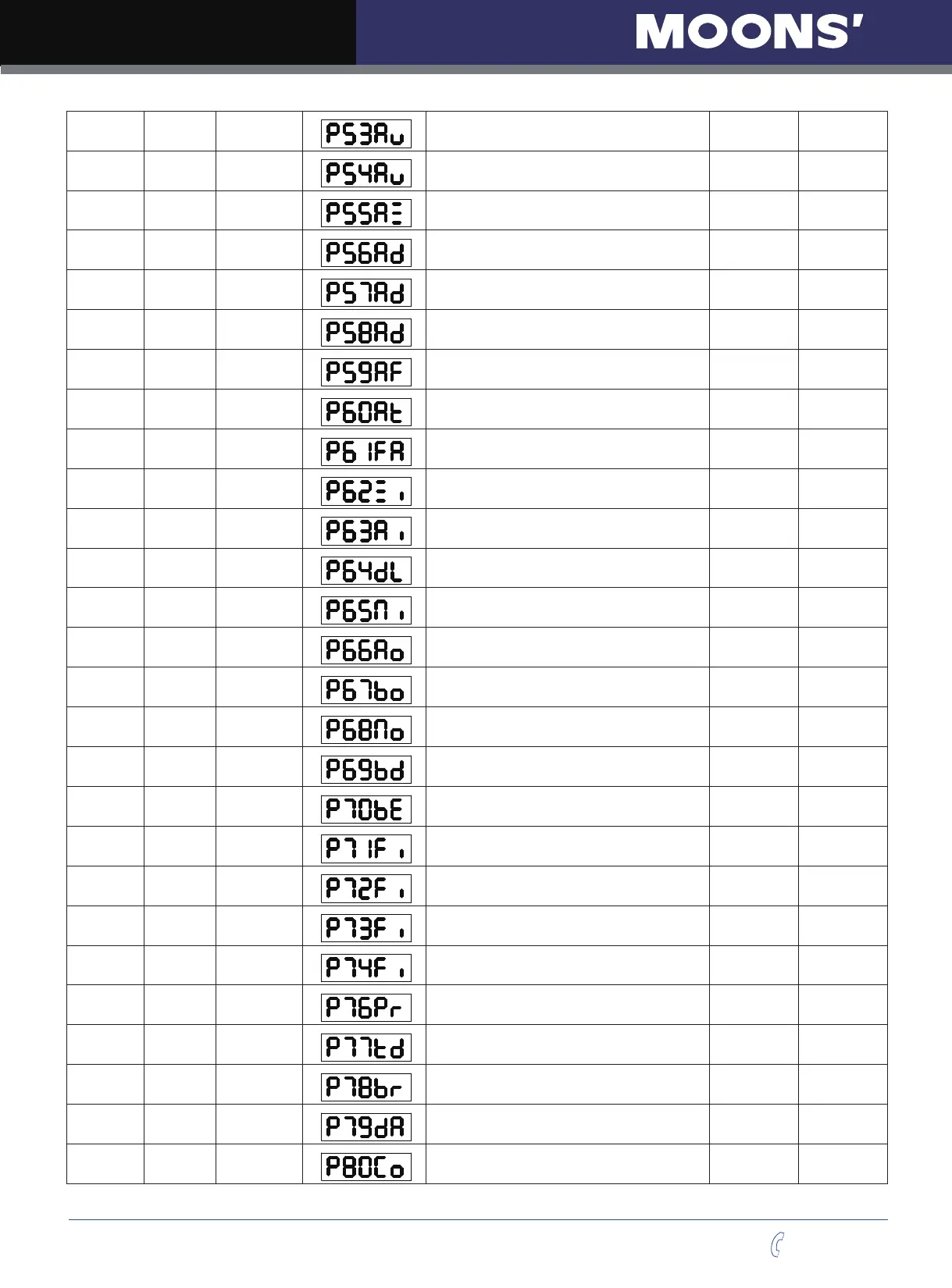

P53 Analog AV2 Analog input2 offset 0.000 V
P54 Analog AV3
Differential analog input offset 0.000 V
P55 Analog AS
Analog type 0
P56 Analog AD1
Analog input1 deadband 0 mv
P57 Analog AD2
Analog input2 deadband 0 mv
P58 Analog AD3
Differential analog deadband 0 mv
P59 Analog AF
Analog input low pass filter value 500 Hz
P60 Analog AT
Analog threshold 0.000 V
P61 Analog FA
Analog 1/2 function 33
P62 I/O SI
Servo enable input setting 2
P63 I/O AI
Alarm Reset input setting 3
P64 I/O DL
End-of –travel limit Setting 3
P65 I/O MI
X7
，
X8
，
X9
，
X10 input function setting 3333
P66 I/O AO
Alarm output function setting 1
P67 I/O BO
Motor brake control setting 1
P68 I/O MO
Y3
，
Y4
，
Y5
，
Y6 output function setting 3341
P69 I/O BD
Brake disengage Delay 200 ms
P70 I/O BE
Brake engage delay 200 ms
P71 I/O FI1
Input X9 noise filter 0
P72 I/O FI2
Input X10 noise filter 0
P73 I/O FI3
Input X11 noise filter 0
P74 I/O FI4
Input X12 noise filter 0
P76
communication
PR Communication protocol 15
P77
communication
TD Transmit delay 2
P78
communication
BR Baud rate 1
P79
communication
DA RS-485 Address 32
P80
communication
CO CANopen Node ID 1
