7 Functions and settings
126 TAPCON® 230 basic 2117246/02 EN © Maschinenfabrik Reinhausen 2012

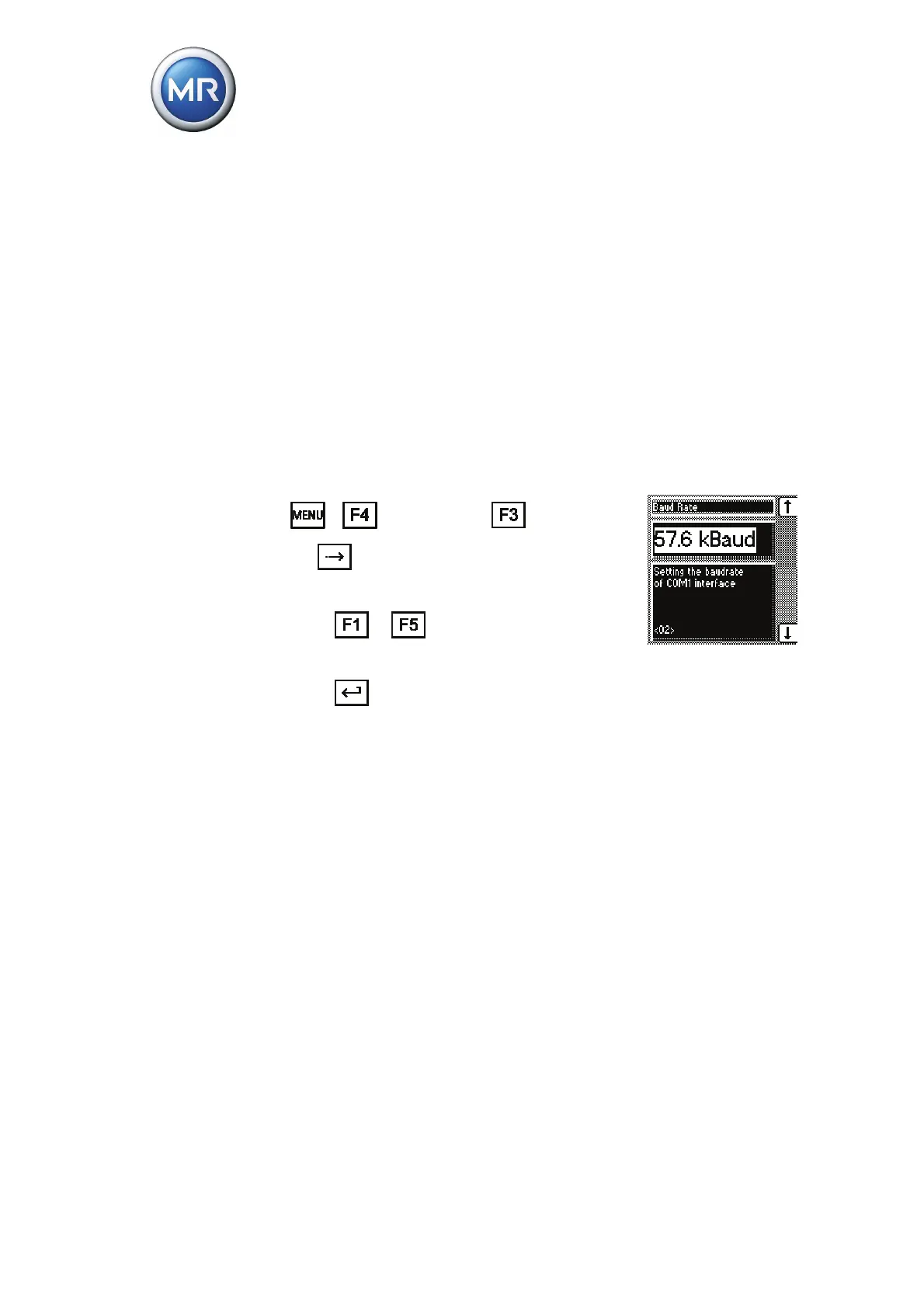

7.4.2.3 Setting the baud rate
In this screen you can set the baud rate for the COM1 interface. To do so, de-
fine for example the transmission speed for communicating with the TAP-
CON®-trol software.
The following values can be set:
 9.6 kilobaud
 19.2 kilobaud
 38.4 kilobaud
 57.6 kilobaud
To set the baud rate, proceed as follows:
1. > Configuration > General >
2x
.
<02> Baud Rate.
2. Press
or to to select the required
baud rate.
3. Press
.
The baud rate is set.
7.4.2.4 Setting the switching pulse time
This display can be used to set the duration of the switching pulse for the mo-
tor-drive unit.
If you set the raise or lower switching pulse time to 1.5 seconds for example,
after the set delay time T1 or T2 there will be a switching pulse of
1.5 seconds.
The waiting time between 2 consecutive switching pulses corresponds to the
set delay time T1 or T2.
