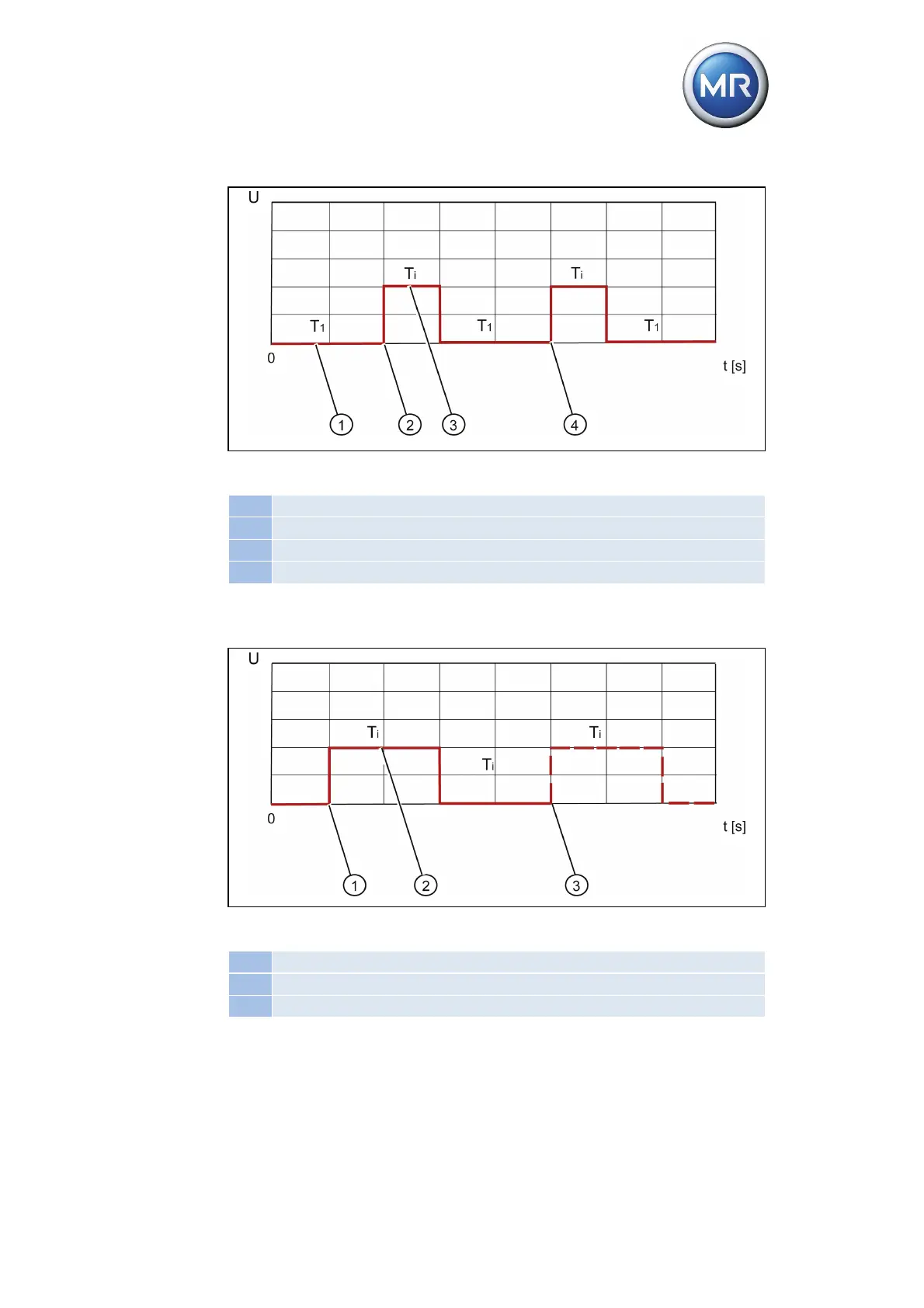

Figure 38 Switching pulse in standard operating mode
1 Set delay time T1
2 Start of first raise/lower switching pulse
3 Switching pulse time Ti (1.5 seconds)
4 Start of second raise/lower switching pulse
In rapid return control mode the next switching pulse can only take place after
1.5 seconds.
Figure 39 Switching pulse in rapid return control mode
1 Start of first raise/lower switching pulse
2 Set switching pulse time Ti (1.5 seconds)
3 Earliest time for the next raise/lower switching pulse (1.5 seconds)
