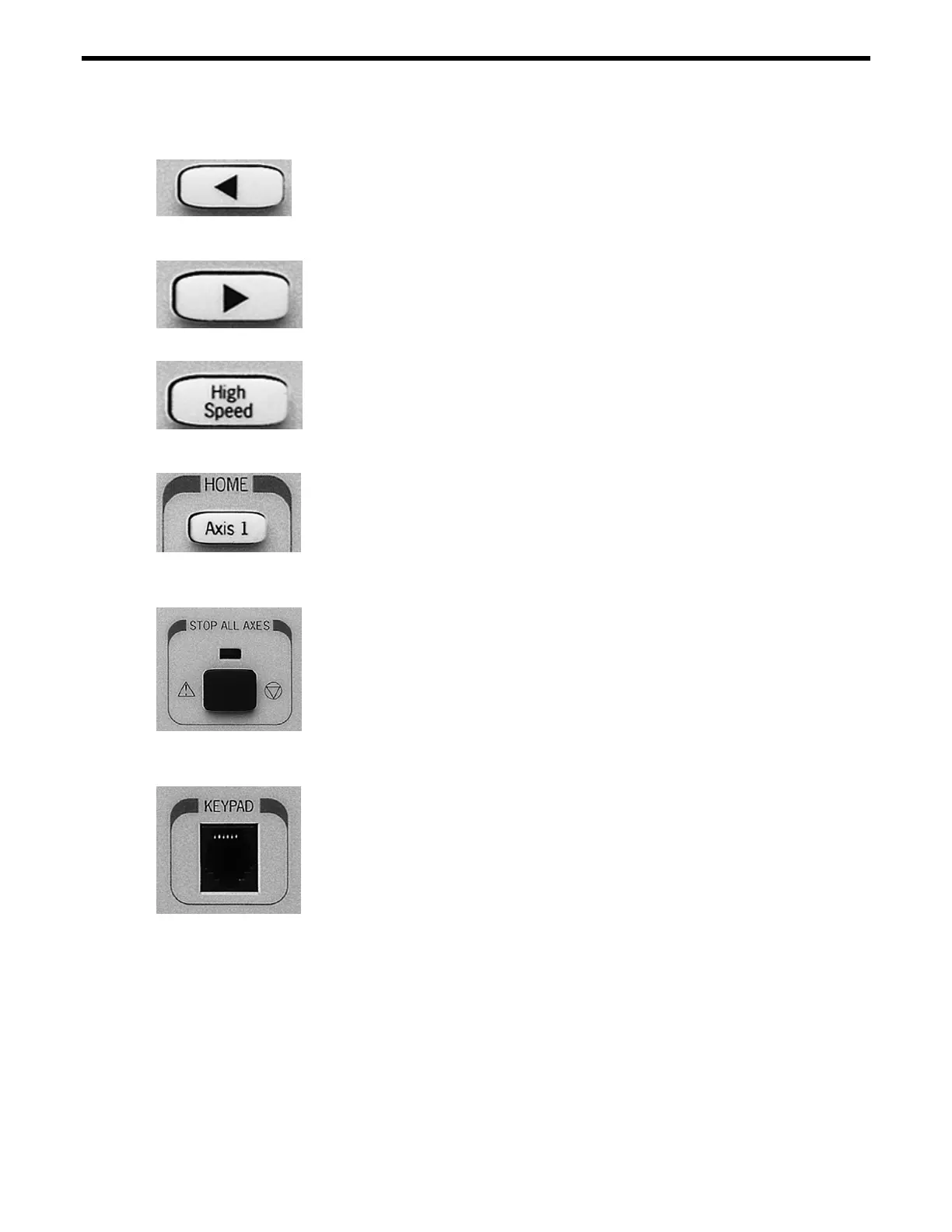

Move in Negative Direction with low speed. This button can be
programmed to cause motion in user definable increments or to move
as long as it is pressed. See SET JOG MODE and SET VELOCITY
menu items in Section 2.2.5.
Move in Positive Direction with low speed. This button can be
programmed to cause motion in user definable increments or to move
as long as it is pressed. See SET JOG MODE and SET VELOCITY
menu items in Section 2.2.5.
Move with High Speed. This button is active only when pushed
simultaneously with either move button above. See SET VELOCITY
menu items in Section 2.2.5.
Home Respective Axis. See SET HOME MODE and SET
VELOCITY menu items in Section 2.2.5.
Stop All Motion. When this button is pressed, all motion is stopped
and the red LED above the button is illuminated temporarily. This
button is equivalent to the Interlock connector on the rear of the unit.
The LED is also illuminated when the interlock connector on the rear
of the unit is activated. See ZE command in Section 3: Remote Mode,
for further information.
An optional handheld keypad can be connected to the ESP300
through this receptacle. Refer to Section 7: Optional Equipment, for a
detailed description of the keypad.
2-4 Section 2 – Modes of Operation
