1. Press Menu to enter the menu listing.
2. Press the Down Arrow repeatedly until the cursor (diamond
shaped) is aligned with the SET VELOCITY menu item.
3. Press the Right Arrow button once. Now, a sub-menu list becomes
available.
4. Press the Right Arrow button to select the SET LO JOG VEL
menu item. The screen shown below is displayed at this time.

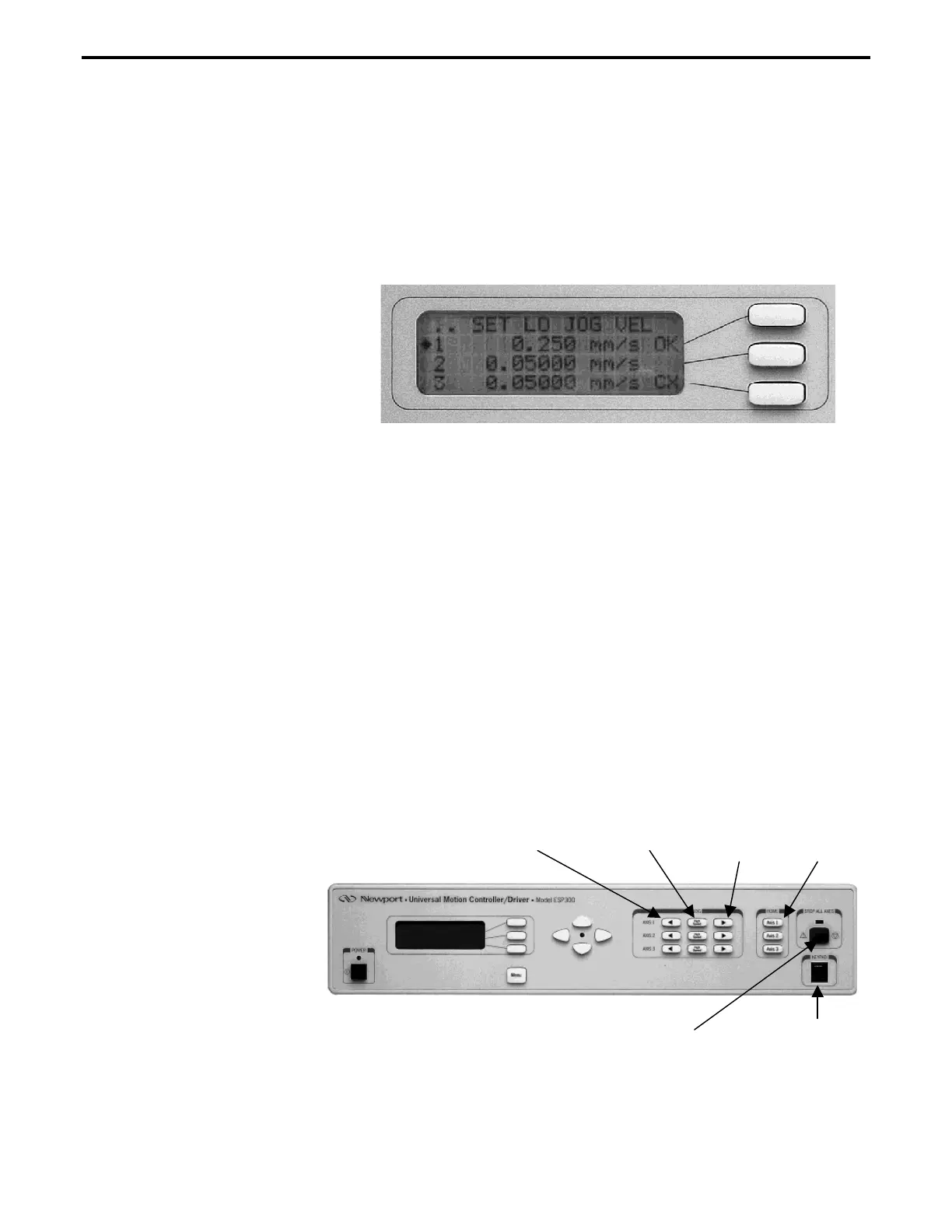

Figure 2.2: Menu Item
5. Press the Right Arrow button once. One digit on the display
flashes at this point indicating that it can be changed. The digit
can be incremented with the Up Arrow button or decremented
using the Down Arrow button. Other digits can be changed
similarly.
6. The set value can now be validated by pressing the OK button or
cancelled by pushing the CX button. Also, if you choose to exit
this menu item with the Left Arrow key, the set value will also be
valid.
2.2.4 Motion from the Front Panel
As shown in (Figure 2.3), the right side of the front panel
accommodates simple manual notion capabilities.
Connector for
Remote Keypad
Sop All Motion
Move in
Positive
Move in
Negative
Move with
High Speed
Home
Stage
Figure 2.3: Motion from the Front Panel Displayed
Section 2 – Modes of Operation 2-3
To Next Page
