ACCESS GATEWAY
System Administration 67
1. From the Web Management Interface, click on Configuration, then Auto Configuration.

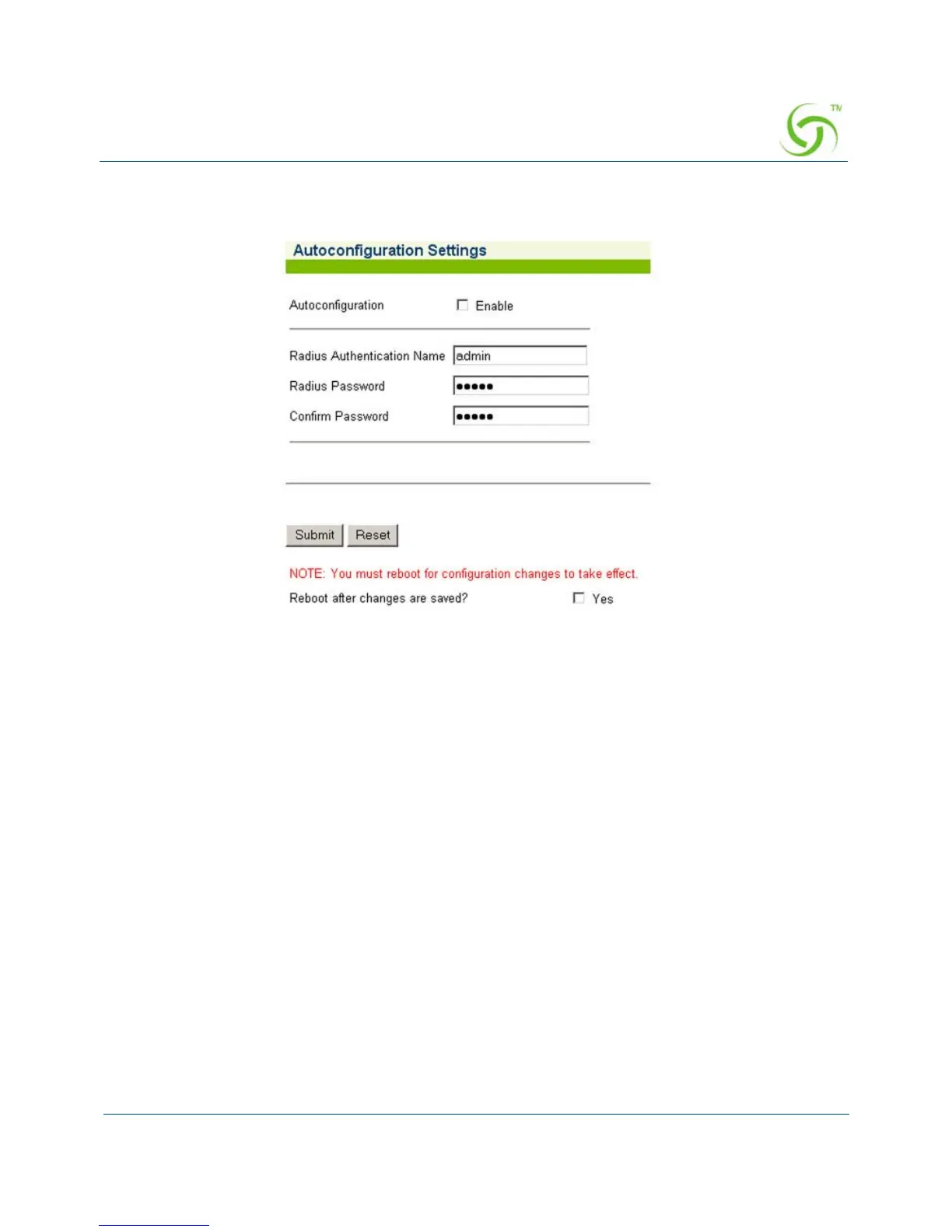

The Autoconfiguration Settings screen appears:
2. Enable or disable Autoconfiguration, as required.
3. If you enabled Autoconfiguration, you must enter the following information into the
corresponding fields:
RADIUS Authentication Name
RADIUS Password
Confirm Password
4. Click on the check box for Reboot after changes are saved? to reboot the system when
you submit your changes.
5. Click on the Submit button to save your changes, or click or the Reset button to reset all
data to its previous state.
See Enabling Auto Configuration.
Enabling Auto Configuration
As shown in the diagram below, two subsequent events drive the automatic configuration of
Nomadix devices:
1. A flow of RADIUS Authentication Request and Reply messages between the Nomadix
gateway and the centralized RADIUS server that specifies the location of the meta
